ABB PSR User Manual

54 Softstarters | 1SFC132005C0201, rev.F

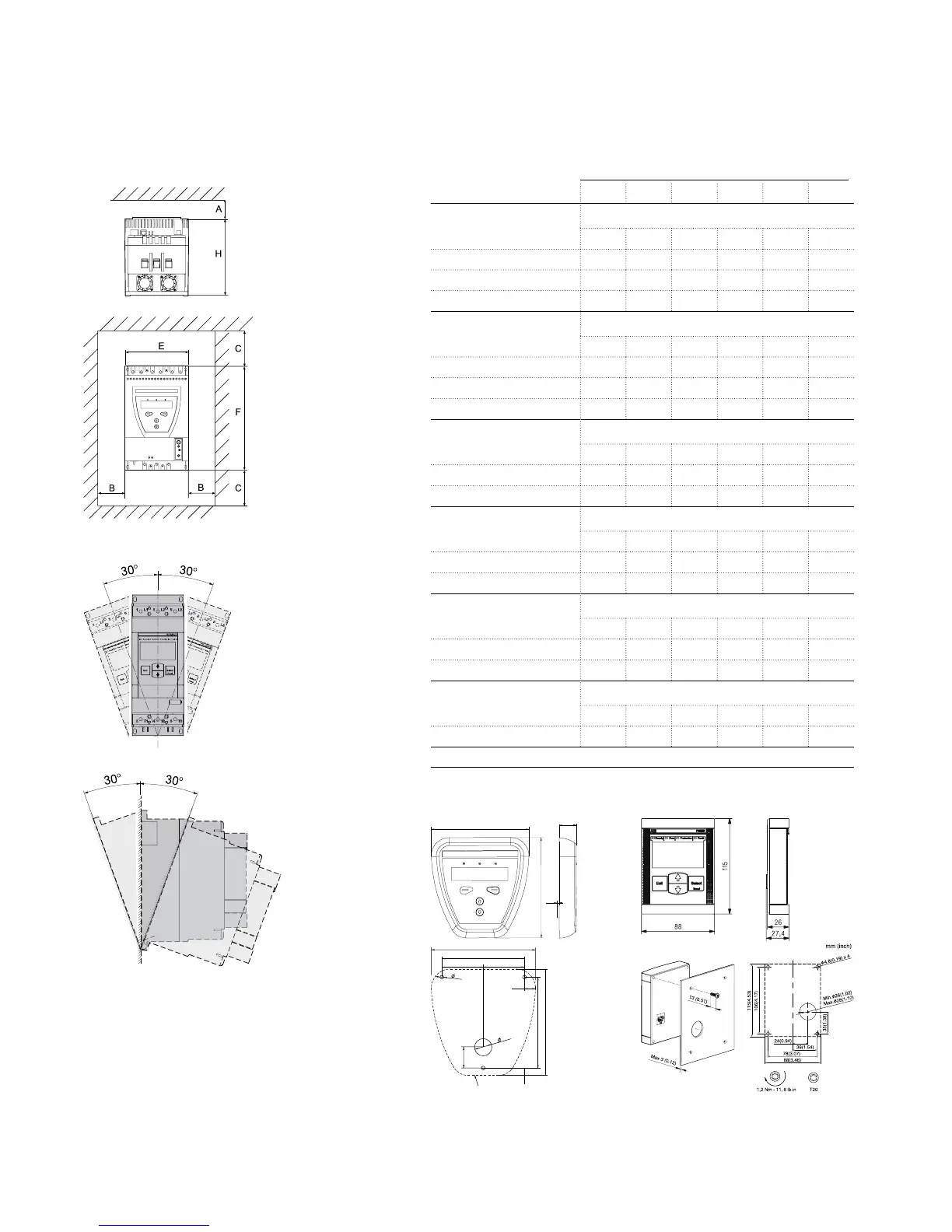

Wall mounting instructions
Softstarters
Minimum distance to wall/front
Dimensions in mm
135
138
3
23
1SFC132117F0201
Dotted line denotes area
covered by external keypad
135
1SFC132118F0201
107
53.5
53.5
14
4.8
22.5
118
138
9.5
28
Dimensions
PSTEK PSEEK
Dimensions
Softstarter, type A B C E F H
PSR
PSR3 ... 16 25 0* 0 45 140 114
PSR25 ... 30 25 0* 0 45 160 128
PSR37 ... 45 25 0* 0 54 187 153
PSR60 ... 105 25 0* 0 70 220 180
PSS ... -500 for 500 V
PSS18/30 ... 44/76 20 10 100 120 200 162
PSS50/85 ... 72/124 20 10 100 140 250 162
PSS85/147 ... 142/245 20 10 100 181 340 265
PSS175/300 ... 300/515 20 10 100 356 340 265
PSS ... -690 for 690 V
PSS18/30 ... 72/124 20 10 100 140 250 163
PSS85/147 ... 142/245 20 10 100 181 340 265
PSS175/300 ... 300/515 20 10 100 356 340 265
PSE
PSE18 ... 105 20 10 100 90 245 185.5
PSE142 ... 170 20 10 100 130 295 219.5
PSE210 ... 370 20 10 100 190 550 236.5
PST
PST30 ... 72 20 10 100 160 260 196
PST85 ... 142 20 10 100 186 390 270
PST175 ... 300 20 10 100 360 420 270
PSTB
PSTB370 ... 470 20 15 150 365 460 361
PSTB570 ... 1050 20 15 150 435 515 381
*) 5 mm for the 24 V DC version
