Dimensions
Softstarters, type PST and PSTB
Circuit diagrams
Softstarters, type PSR
1SFC132232F0001 1SFC132233F0001 1SFC132234F0001
1SFC132229F0001
1SFC132230F0001
1SFC132231F0001
1SFC132227F0001
1SFC132228F0001
1SFC132226F0001

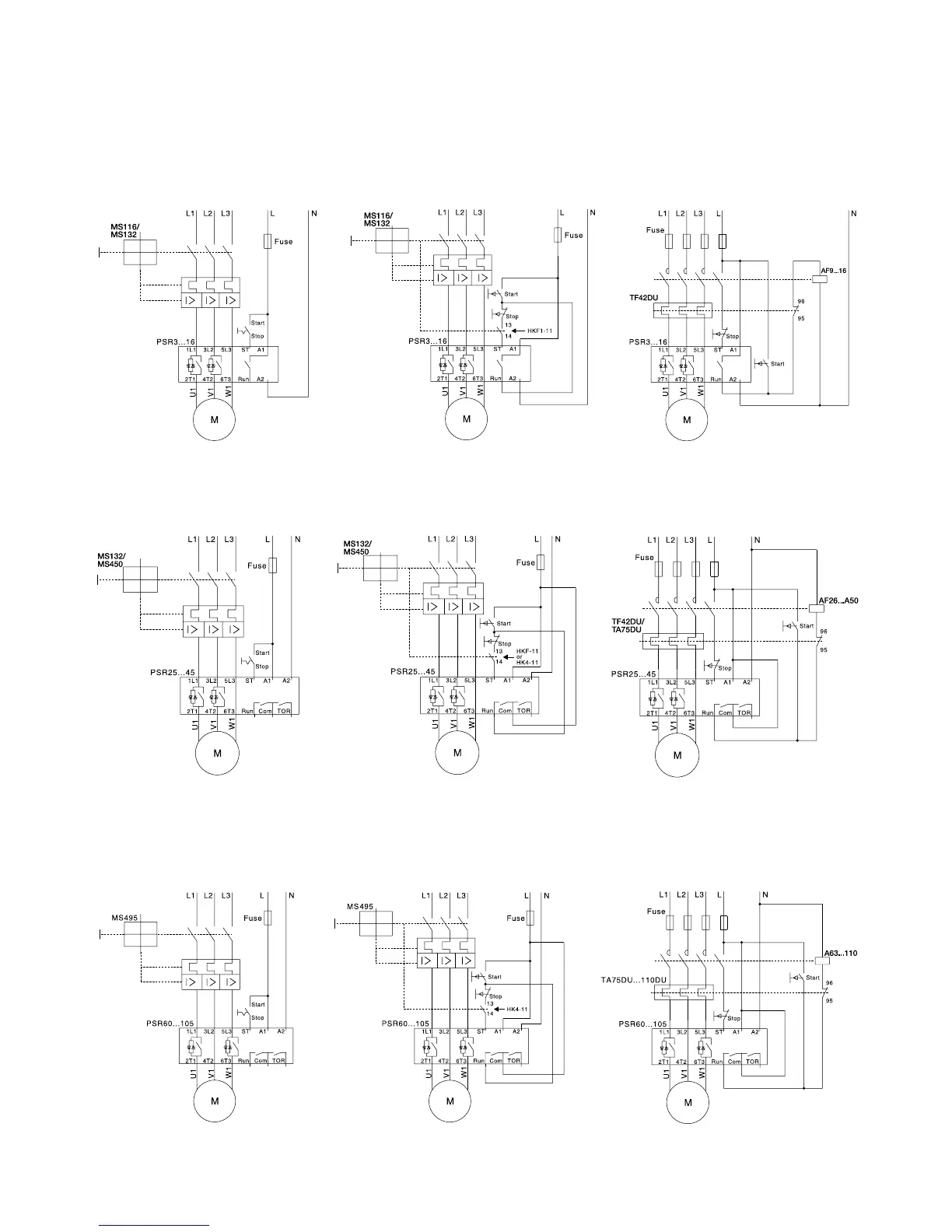

PSR3 ...16
A) With MMS B) With MMS and auxiliary contact C) With fuses, contactor and O.L.
PSR25 ... 45
D) With MMS E) With MMS and auxiliary contact F) With fuses, contactor and O.L.
PSR60 ... 105
G) With MMS H) With MMS and auxiliary contact I) With fuses, contactor and O.L.
