ABB PSR User Manual

44 Softstarters | 1SFC132005C0201, rev.F
PST(B) – The advanced range

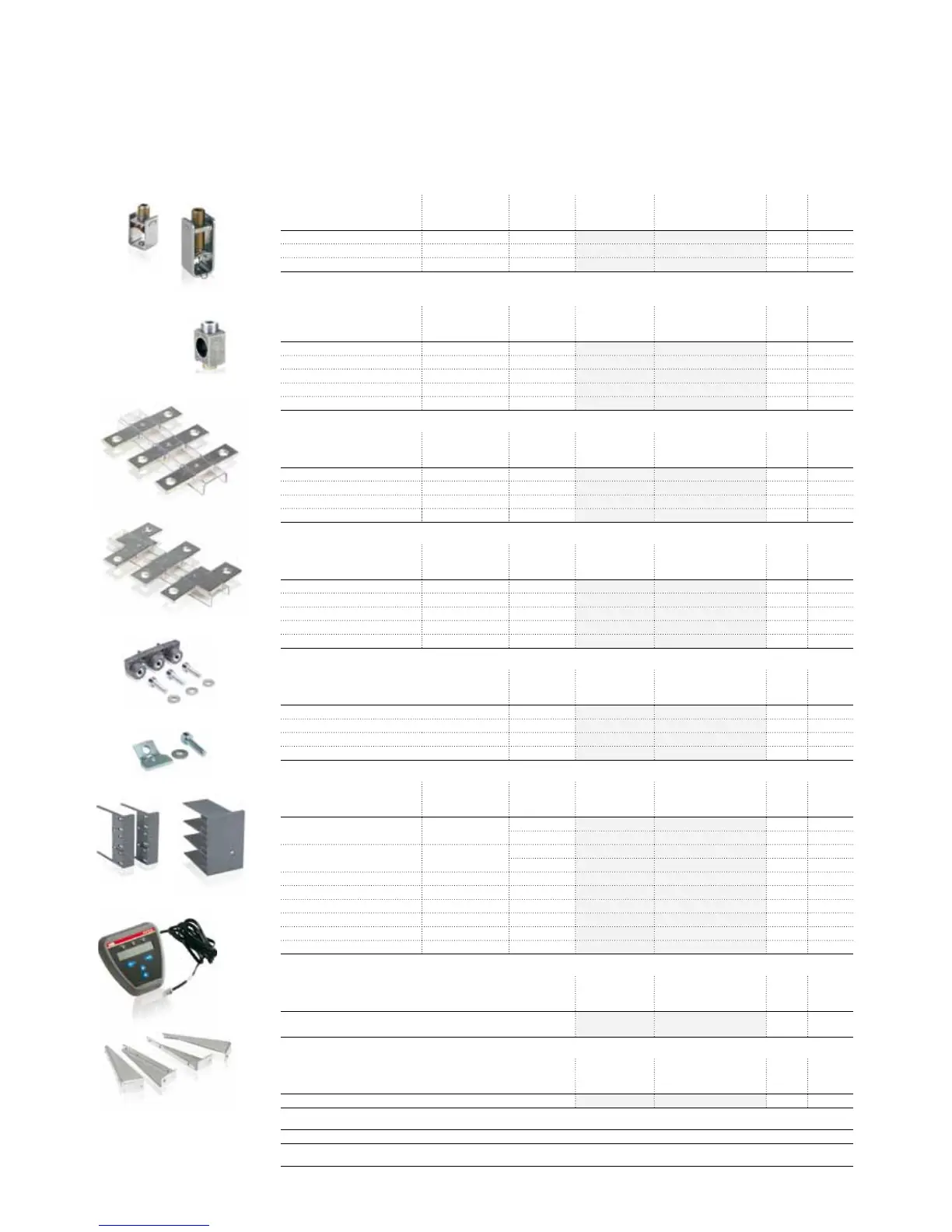

Accessories
1SFT98099-019C3
1SFT98099-011C1
1SFT98099-095C2
1SFT98099-125
1SFT98000-011C3
LX...
1SFT98000-012C3
SB8054C2
LT ... -AC LT ... -AL
LW...
PSTEK
1SFC132113F0201
PSTM-2
1SFC132189F0001
Cable connectors for Cu cables
For PST85...300 you need 9 pieces if also using the terminals B1, B2, B3 for external by-pass contactor.
For
softstarter type
Wire range
mm
2
Tightening
torque max.
Nm Type Order code
Pack
ing
piece
Weight
kg
1 piece
PST85 …142 6-185 16 - 1SDA 023 354 R0001 3 0.200
PST85 …142 2 x (50-120) 16 LZ185-2C/120 1SFN 074 709 R1000 3 0.300
PST175 …PSTB470 16-240 25 - 1SDA 023 368 R0001 3 0.400
Cable connectors for Al and Cu cables
For PST85...300 you need 9 pieces if also using the terminals B1, B2, B3 for external by-pass contactor.
For
softstarter type
Wire range
mm
2
Tightening
torque max.
Nm Type Order code
Pack
ing
piece
Weight
kg
1 piece
PST85 …142 35-95 13.5 – 1SDA 023 356 R0001
3 0.100
PST85 …142 25-150 31 – 1SDA 023 357 R0001
3 0.100
PST175 …300 120-240 43 – 1SDA 023 370 R0001
3 0.100
PSTB370 …1050 3 x (70-185) 43 – 1SDA 023 384 R0001
3 0.265
PSTB370 …1050 2 x (120-240) 31 – 1SDA 023 380 R0001
3 0.110
Terminal extensions
For
softstarter type
Dimensions
hole ø
mm
2
bar
mm Type Order code
Pack
ing
piece
Weight
kg
1 piece
PST85…142 8.5 17.5 x 5 LX185
1)
1SFN 074 710 R1000 1 0.250
PST175…300 10.5 20 x 5 LX300
2)
1SFN 075 110 R1000 1 0.350
PSTB370...470 10.5 25 x 5 LX460 1SFN 075 710 R1000 1 0.500
PSTB570...1050 13 40 x 6 LX750 1SFN 076 110 R1000 1 0.850
Terminal enlargements
For
softstarter type
Dimensions
hole ø
mm
2
bar
mm Type Order code
Pack
ing
piece
Weight
kg
1 piece
PST30…72 6.5 15 x 3 LW110
1)
1SFN 074 307 R1000 1 0.100
PST85…142 10.5 17.5 x 5 LW185
1)
1SFN 074 707 R1000 1 0.250
PST175...300 10.5 20 x 5 LW300
1)
1SFN 075 107 R1000 1 0.450
PSTB370...470 10.5 25 x 5 LW460 1SFN 075 707 R1000 1 0.730
PSTB570...1050 13 40 x 6 LW750 1SFN 076 107 R1000 1 1.230
Terminal nut washer
For
softstarter type Req. qty Type Order code
Pack
ing
piece
Weight
kg
1 piece
PST85...142 1 LE185
1)
1SFN 074 716 R1000 2 0.200
PST175...300 3 LE300
2)
1SFN 075 116 R1000 2 0.300
PSTB370...470 6 LE460 1SFN 075 716 R1000 6 0.600
PSTB570...1050 6 LE750 1SFN 076 116 R1000 6 0.750
Terminal shrouds
For
softstarter type Suitable for Req. qty Type Order code
Pack
ing
piece
Weight
kg
1 piece
PST85...142
Cable connectors
1 pce and LT185-AC 1SFN 124 701 R1000 2 0.050
1 pce LT460-AC 1SFN 125 701 R1000 2 0.100
PST85…142
Compression lugs
1 pce and LT185-AL 1SFN 124 703 R1000 2 0.220
1 pce LT460-AL 1SFN 125 703 R1000 2 0.800
PST175...300
Cable connectors
3 pcs LT300-AC
2)
1SFN 125 101 R1000 2 0.070
PST175...300
Compression lugs
3 pcs LT300-AL
2)
1SFN 125 103 R1000 2 0.280
PSTB370...470
Cable connectors
2 pcs LT460-AC 1SFN 125 701 R1000 2 0.100
PSTB370...470
Compression lugs
2 pcs LT460-AL 1SFN 125 703 R1000 2 0.800
PSTB570...1050
Cable connectors
2 pcs LT750-AC 1SFN 126 101 R1000 2 0.120
PSTB570...1050
Compression lugs
2 pcs LT750-AL 1SFN 126 103 R1000 2 0.825
External keypad including a 3m cable
For
softstarter type Type Order code
Pack
ing
piece
Weight
kg
1 piece
PST30...300
PSTB370...1050
PSTEK 1SFA 899 003 R1000 1 0.400
Marine Kit
For
softstarter type Type Order code
Pack
ing
piece
Weight
kg
1 piece
PST85…142 PSTM-2 1SFA 899 004 R1000 1 0.240
Fieldbus plug
ABB Filedbus Plug suitable for all sizes. See page 50-53
1)
Only ts on the motor side
2)
Use two sets of the accessories on the line side and one set on the motor side.
LE460
1SFC132322F0001
LZ...
LE185
1SFC132321F0001
