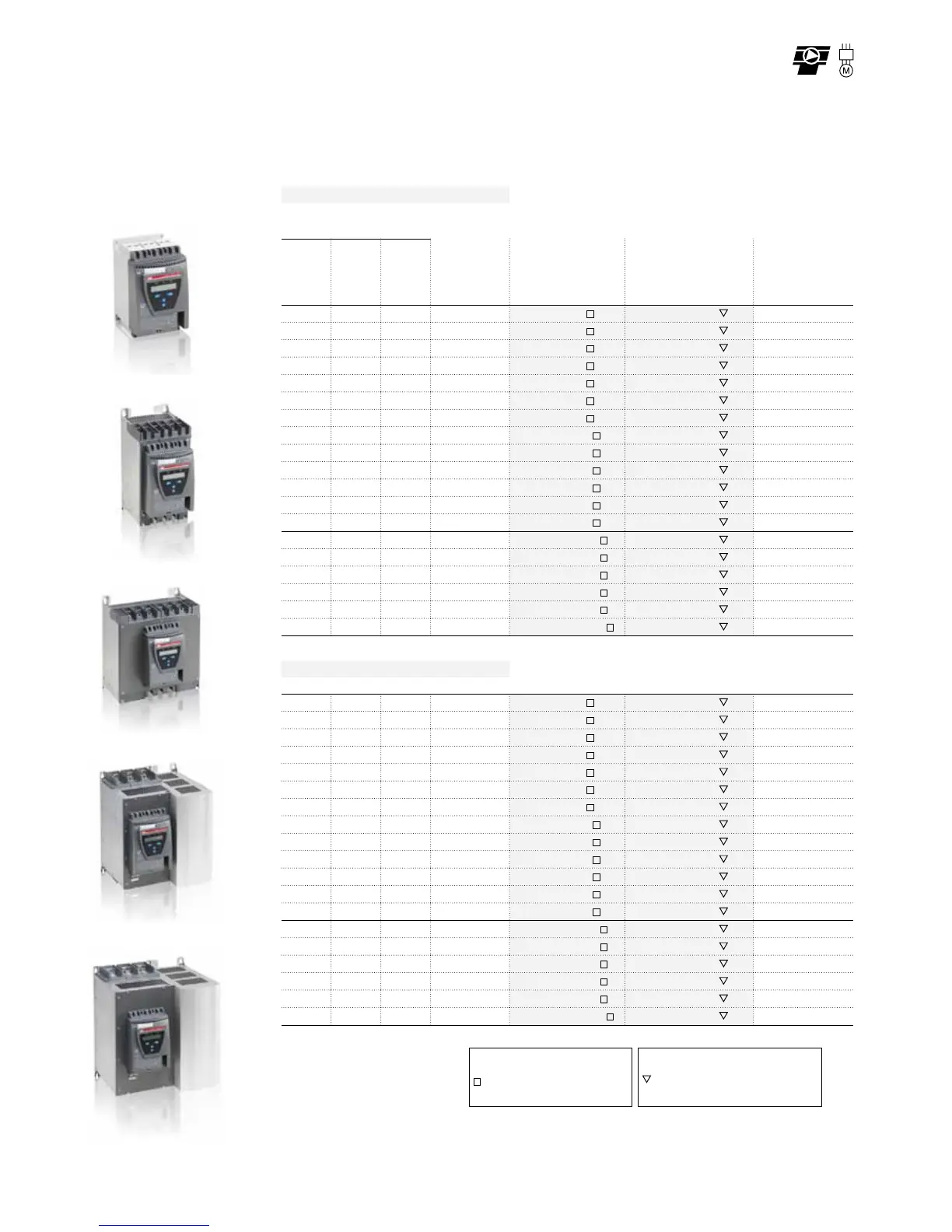

ABB PSR User Manual

40 Softstarters | 1SFC132005C0201, rev.F
PST(B) – The advanced range
Normal starts, class 10, In-Line, ordering details
PST30 ... PSTB1050
Rated operational voltage U
e
, 208 - 600 V
Rated control supply voltage, U
s
, 100 - 250 V AC, 50/60 Hz
Motor power
400 V
P
e
kW
500 V
P
e
kW
690 V
P
e
kW
IEC
Max rated
operational
curent I
e
A Type*
)
Order code**
)
Weight
kg
1 piece
15 18.5 - 30 PST30-600-70■
1SFA894 002 R70
▼
0
4.80
18.5 22 - 37 PST37-600-70■
1SFA894 003 R70
▼
0
4.80
22 25 - 44 PST44-600-70■
1SFA894 004 R70
▼
0
4.80
25 30 - 50 PST50-600-70■
1SFA894 005 R70
▼
0
4.80
30 37 - 60 PST60-600-70■
1SFA894 006 R70
▼
0
5.00
37 45 - 72 PST72-600-70■
1SFA894 007 R70
▼
0
5.00
45 55 - 85 PST85-600-70■
1SFA894 008 R70
▼
0
11.20
55 75 - 105 PST105-600-70■
1SFA894 009 R70
▼
0
13.00
75 90 - 142 PST142-600-70■
1SFA894 010 R70
▼
0
13.00
90 110 - 175 PST175-600-70■
1SFA894 011 R70
▼
0
21.50
110 132 - 210 PST210-600-70■
1SFA894 012 R70
▼
0
21.50
132 160 - 250 PST250-600-70■
1SFA894 013 R70
▼
0
23.00
160 200 - 300 PST300-600-70■
1SFA894 014 R70
▼
0
23.00
200 257 - 370 PSTB370-600-70■
1SFA894 015 R70
▼
0
31.00
250 315 - 470 PSTB470-600-70■
1SFA894 016 R70
▼
0
31.00
315 400 - 570 PSTB570-600-70■
1SFA894 017 R70
▼
0
52.00
400 500 - 720 PSTB720-600-70■
1SFA894 018 R70
▼
0
55.00
450 600 - 840 PSTB840-600-70■
1SFA894 019 R70
▼
0
60.00
560 730 - 1050 PSTB1050-600-70■
1SFA894 020 R70
▼
0
60.00
PST30 ... PSTB1050
Rated operational voltage U
e
, 400 - 690 V
Rated control supply voltage, U
s
, 100 - 250 V AC, 50/60 Hz
15 18.5 25 30 PST30-690-70■
1SFA895 002 R70
▼
0
4.80
18.5 22 30 37 PST37-690-70■
1SFA895 003 R70
▼
0
4.80
22 25 37 44 PST44-690-70■
1SFA895 004 R70
▼
0
4.80
25 30 45 50 PST50-690-70■
1SFA895 005 R70
▼
0
4.80
30 37 55 60 PST60-690-70■
1SFA895 006 R70
▼
0
5.00
37 45 59 72 PST72-690-70■
1SFA895 007 R70
▼
0
5.00
45 55 75 85 PST85-690-70■
1SFA895 008 R70
▼
0
11.20
55 75 90 105 PST105-690-70■
1SFA895 009 R70
▼
0
13.00
75 90 132 142 PST142-690-70■
1SFA895 010 R70
▼
0
13.00
90 110 160 175 PST175-690-70■
1SFA895 011 R70
▼
0
21.50
110 132 184 210 PST210-690-70■
1SFA895 012 R70
▼
0
21.50
132 160 220 250 PST250-690-70■
1SFA895 013 R70
▼
0
23.00
160 200 257 300 PST300-690-70■
1SFA895 014 R70
▼
0
23.00
200 257 355 370 PSTB370-690-70■
1SFA895 015 R70
▼
0
31.00
250 315 450 470 PSTB470-690-70■
1SFA895 016 R70
▼
0
31.00
315 400 560 570 PSTB570-690-70■
1SFA895 017 R70
▼
0
52.00
400 500 710 720 PSTB720-690-70■
1SFA895 018 R70
▼
0
55.00
450 600 800 840 PSTB840-690-70■
1SFA895 019 R70
▼
0
60.00
560 730 1000 1050 PSTB1050-690-70■
1SFA895 020 R70
▼
0
60.00
s
s
*)
Add code letter in Type acc.
to below:
■
No code letter = Normal
T = Coated PCBs
**)
Add code number in Order code
acc. to below:
▼
0 = Normal
2 = Coated PCBs
1SFC132305F0001
PST30 ... PST72
PST85 ... PST142
1SFC132306F0001
PST175 ... PST300
1SFC132307F0001
PSTB370 ... PSTB470
1SFC132308F0001
PSTB570 ... PSTB1050
1SFC132309F0001
