SSCBR1_TRV_T_OP_ALM
SSCBR1_TRV_T_CL_ALM
SSCBR1_SPR_CHR_ALM
SSCBR1_OPR_ALM
SSCBR1_OPR_LO
SSCBR1_IPOW_ALM
SSCBR1_IPOW_LO
SSCBR1_CB_LIFE_ALM
SSCBR1_MON_ALM
SSCBR1_PRES_ALM
SSCBR1_PRES_LO
SSCBR1_ALARMS
GUID-ED84A0BD-A150-4BBA-8A82-8AC4B3CAE673 V1 EN

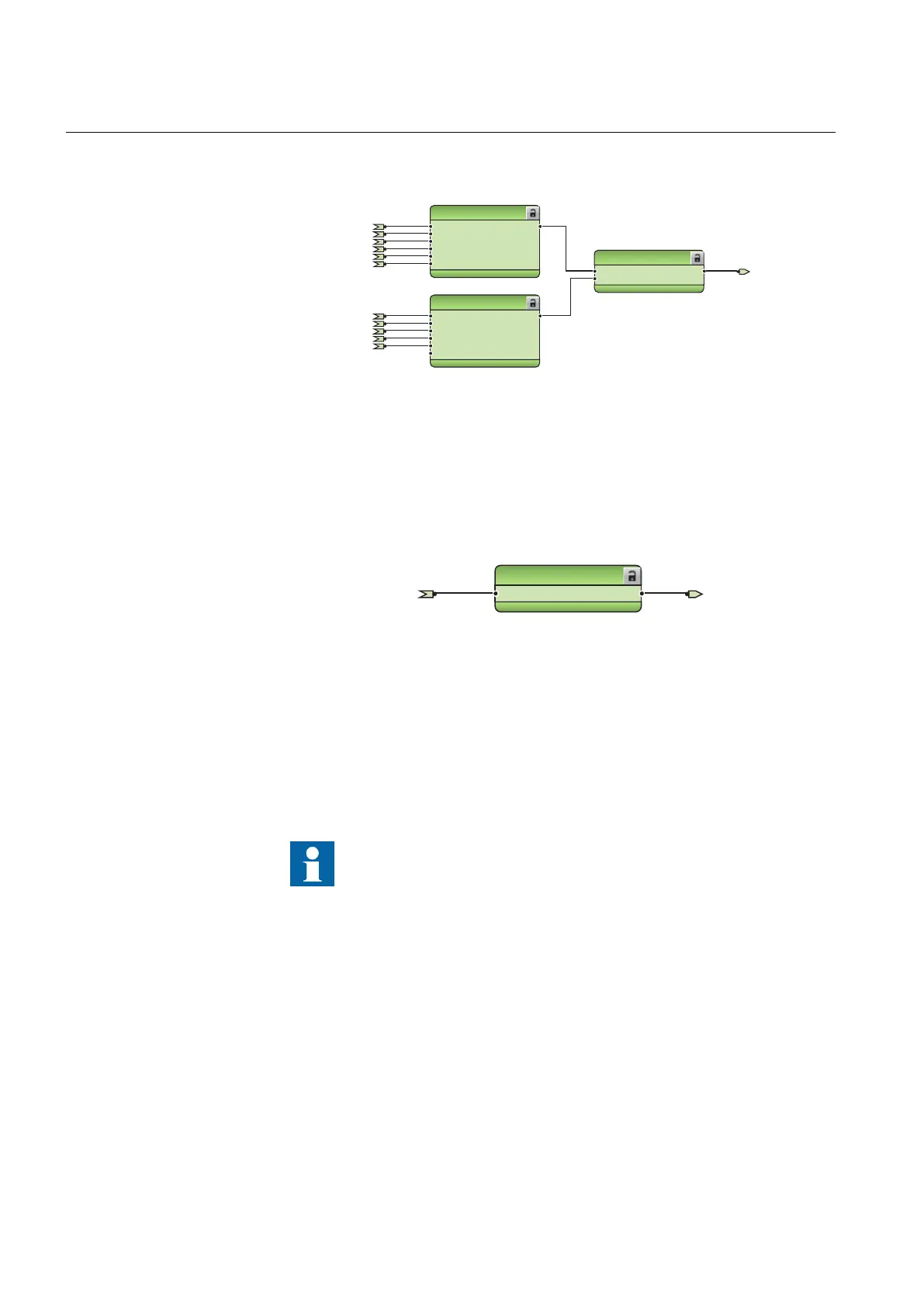

Figure 73: Logic for circuit breaker monitoring alarm
NOT
IN OUT
X110_BI4_CB_SPRING_CHARGED CB_SPRING_DISCHARGED
GUID-7B9FF17E-827E-40A4-B1D2-F13E236D0381 V1 EN
Figure 74: Logic for start of circuit breaker spring charging
Two separate trip circuit supervision functions are included, TCSSCBR1 for power
output X100:PO3 and TCSSCBR2 for power output X100:PO4. Both the functions
are blocked by the master trip TRPPTRC1 and TRPPTRC2 and the circuit breaker
open signal.
It is assumed that there is no external resistor in the circuit breaker
tripping coil circuit connected in parallel with the circuit breaker
normally open auxiliary contact.
Section 3 1MRS756378 S
REF615 standard configurations
88 REF615
Application Manual

ABB relion REF615 Specifications

General

Type	Feeder Protection and Control Relay
Rated Frequency	50/60 Hz
Control Functions	Circuit breaker control, Disconnector control
Application	Feeder protection in utility and industrial power distribution systems
Communication Protocols	IEC 61850, Modbus, DNP3
Mounting	Flush mounting
Operating Temperature	-25°C to +55°C
Protection Functions	Overcurrent, earth fault, undervoltage, overvoltage
Weight	2.5 kg
