4. Click Export to export the .zip file with the selected files.

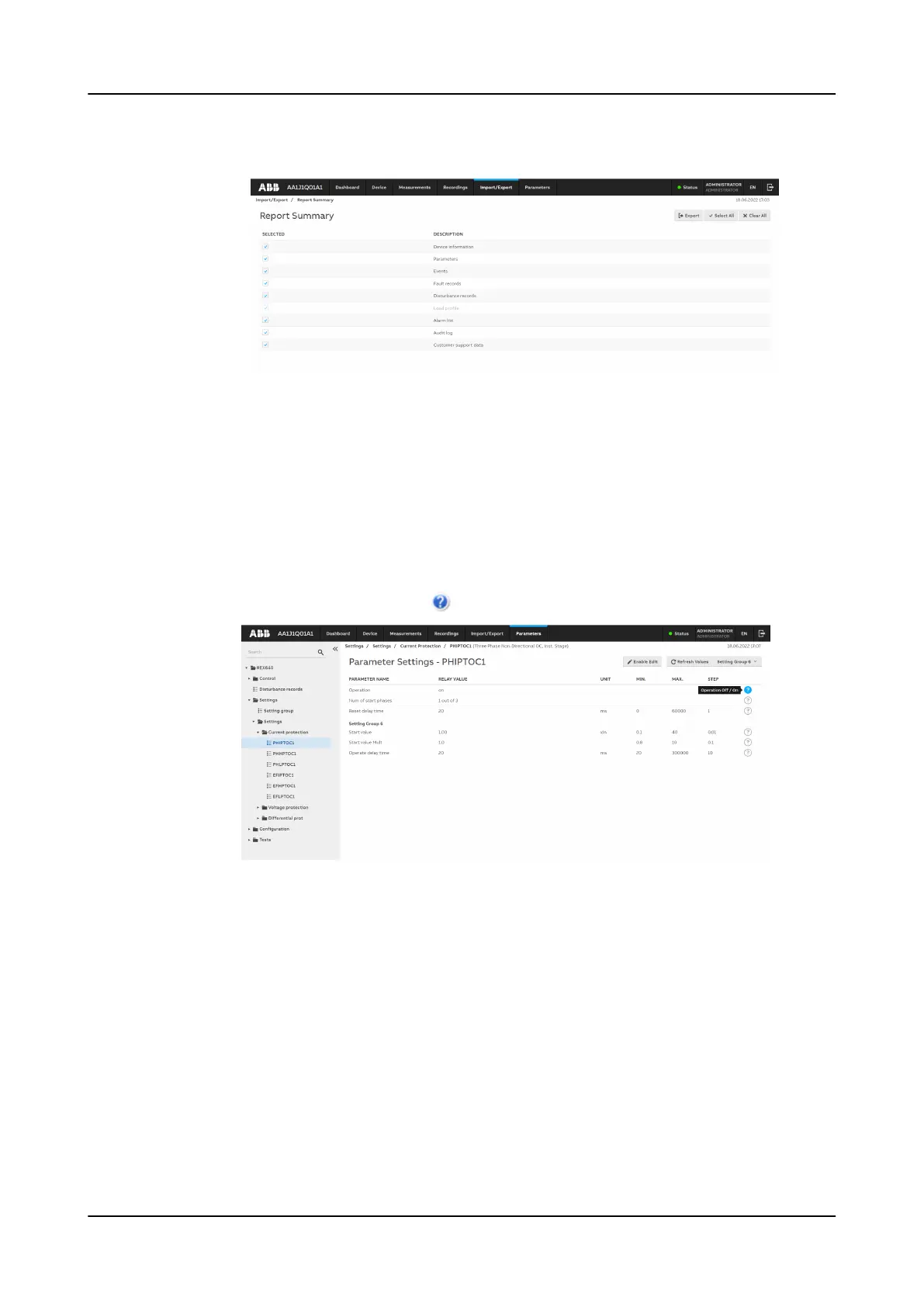

Figure 85: Report Summary page
5.21 Using Web HMI help
The context-sensitive WHMI help provides information on a single parameter, for
example.
•
Move the mouse over the
to display the help dialog box.
Figure 86: Opening the HMI help
1MRS759118 D
Using Web HMI
REX640
Operation Manual
85

ABB RELION REX640 Specifications

General

Model	RELION REX640
Category	Protection Device
Communication Protocols	IEC 61850, Modbus, DNP3, IEC 60870-5-103
Display	LCD
Rated Voltage	100-240 V AC/DC
Rated Frequency	50/60 Hz
Protection Functions	Overcurrent, Earth Fault, Overvoltage, Undervoltage, Frequency
Mounting	Rack mounting
Inputs/Outputs	Analog inputs
Housing	Metal
Input Voltage	24-250 V DC / 100-240 V AC
Operating Temperature	-25°C to +70°C
Enclosure	IP20
