ABB TTH300 Series User Manual

46 TTH300 HEAD-MOUNT TEMPERATURE TRANSMITTER | OI/TTH300-EN REV. E
… 11 Operation

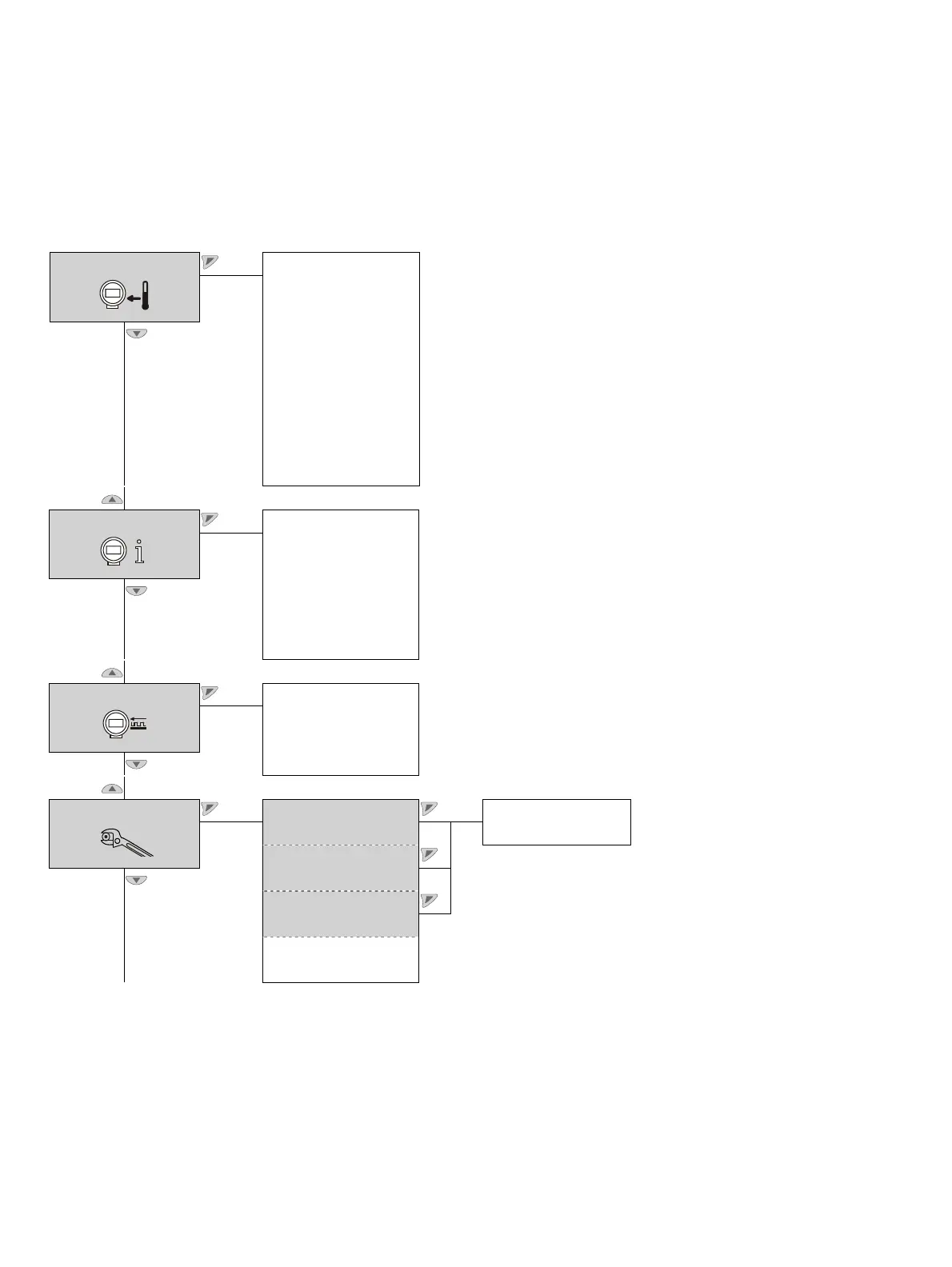

PROFIBUS PA® und FOUNDATION Fieldbus® Parameter overview
Note
This overview of parameters shows all the menus and parameters available on the device. Depending on the version and
configuration of the device, not all of the menus and parameters may be visible in it.
Device Setup 1 Sensor 1
R-Connection 1
two-wire correction 1
Thermocouple RJ 1
ext. CJC Temp 1
Sensor 2
R-Connection 2
two-wire correction 2
Thermocouple RJ 2
ext. CJC Temp 2
Measured Type
Device Info 2 Device ID
Serial Number
Software Version
Hardware Version
Device Tag Name
Description
Operation Time
Communication 3 Device Tag Name
Bus Address
Ident Number*
Ident Number Profile
1)
Service 4 Device temperature MIN Value
MAX Value
Sensor 1
Sensor 2
Op. Time / Temp.
Communication

ABB TTH300 Series Specifications

General

Type	Temperature transmitter
Display	Optional LCD display
Input	RTD, Thermocouple, Resistance
Output	4-20 mA, HART
Accuracy	±0.1% of span
Ambient temperature	-40°C to +85°C (-40°F to +185°F)
Housing material	Aluminum, Stainless steel
Communication	HART
Configuration	Via HART protocol, configuration tools
Power supply	10.5 ... 45 V DC (depending on version and load)
Measurement Range	Depends on sensor type (RTD, Thermocouple, etc.)
Protection Rating	IP66
Sensor Type	RTD, Thermocouple
