90 1VLG5 00007 E

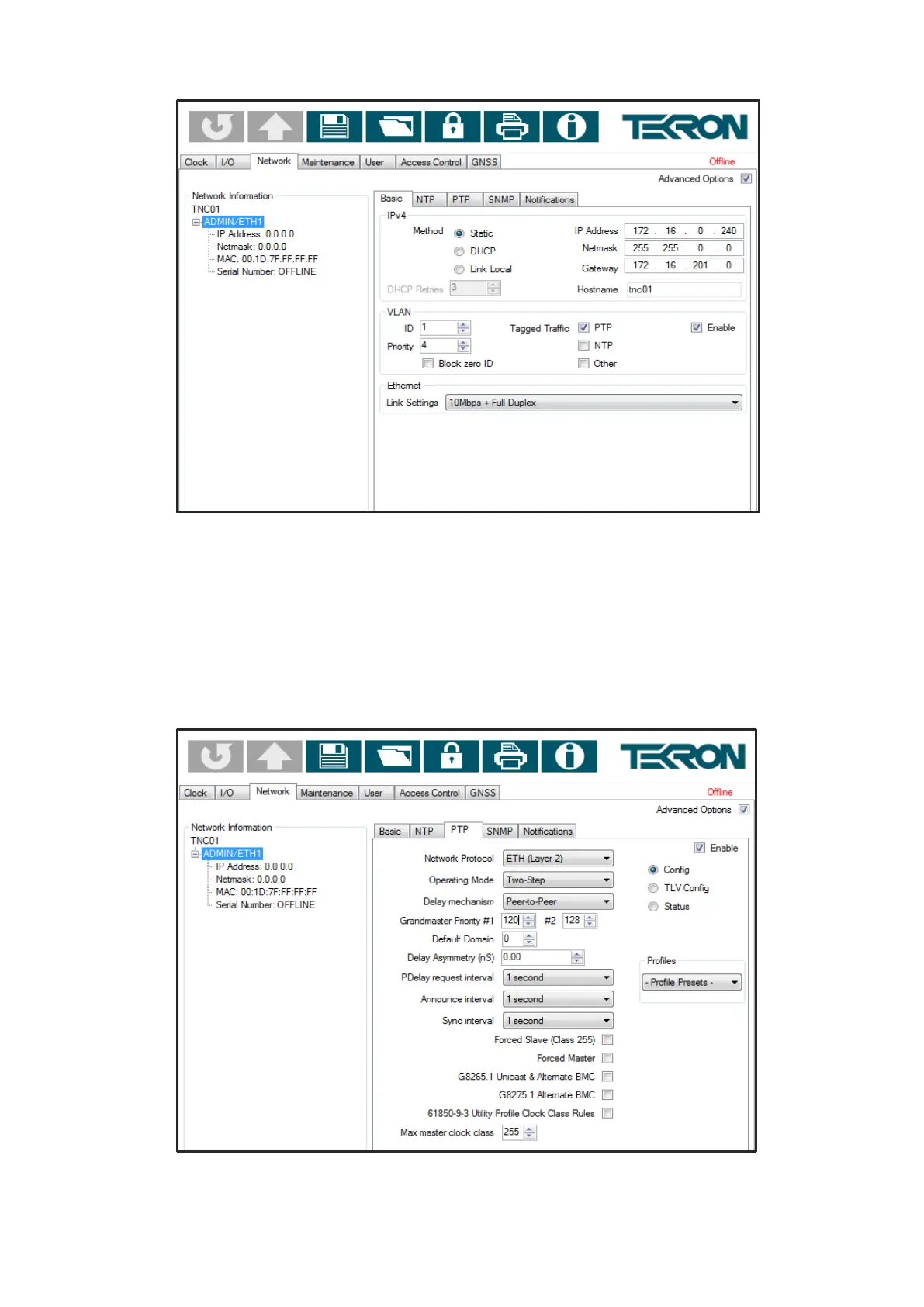

Figure 119: Basic setting dialog

Network / PTP Settings

Enable = enabled

Operating mode = Two-Step

Profiles = C37.238

Grandmaster Priority #1 = 120 (128 default setting)

Figure 120: PTP setting dialog
