ENGINEERING SENSO RS

1VLG5 00007 E 29

Maximum current Start and protection setting values

If the ratio of the application nominal current I

and sensor-rated primary current I

becomes

higher, and the rated secondary value needs to be set higher than 46.875 mV / Hz, the high-

est value that the relay can measure before the current sensor input is saturated is smaller

than the maximum setting value of the current protection.

Table 4: Maximum current Start and protection setting values

Application Nominal current

)

Rated Secondary Value with

80 A / 0.150 V at 50 Hz

Maximum current Start and

protection setting values

... 1 250 A

1.000 … 46.875 mV / Hz

40 x I

1 250 … 2 500 A

46.875 … 93.750 mV / Hz

20 x I

2 500 … 4 000 A

93.750 … 150.000 mV / Hz

12.5 x I

Priority

Each current sensor has unique physical polarity defined by sensor hardware.

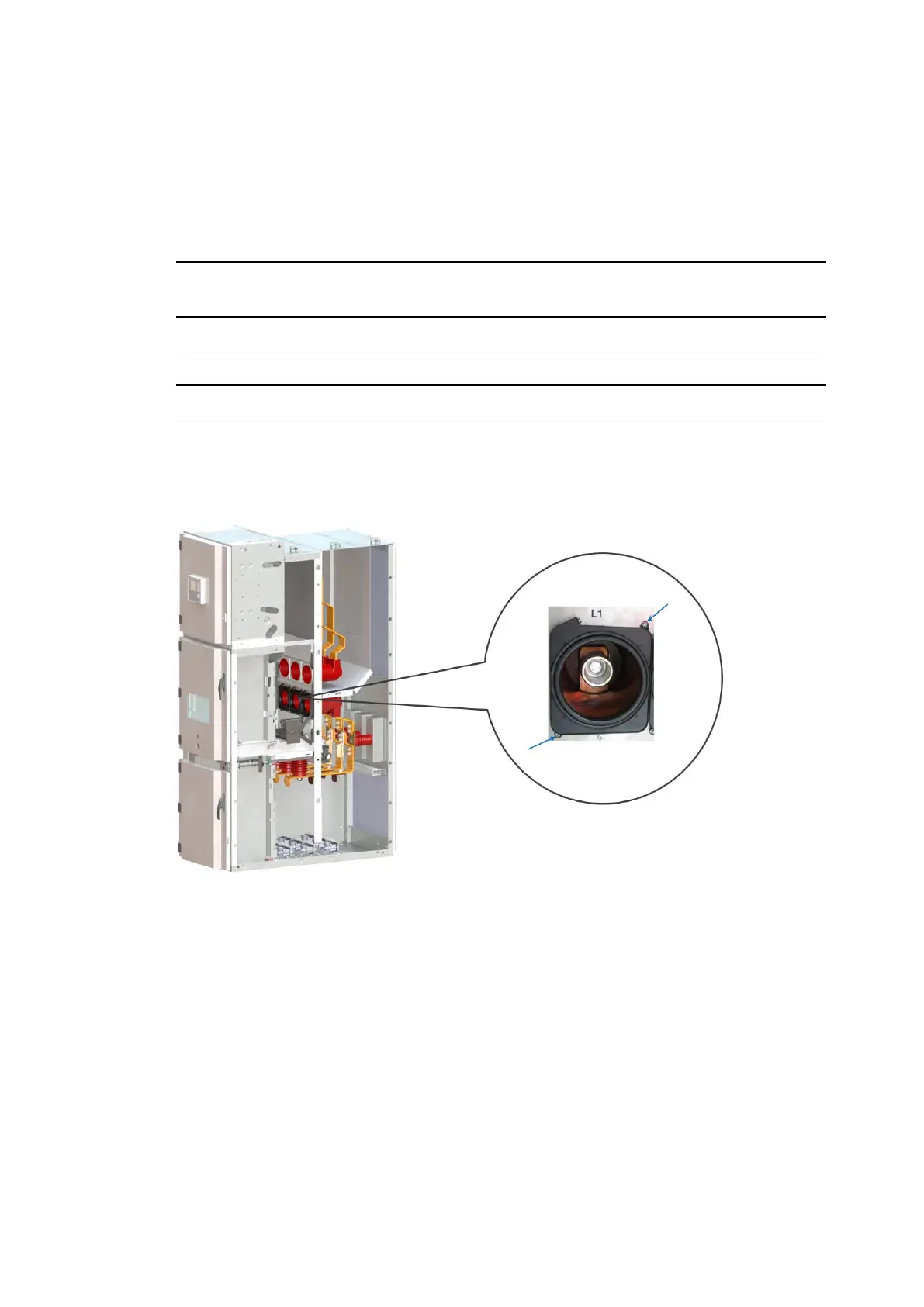

Figure 34: Current sensor with unique physical polarity
