7 - Operation
web user interface menu structure
The following screenshots are related from a laptop visualization, may differ from smartphone
or tablet visualization.

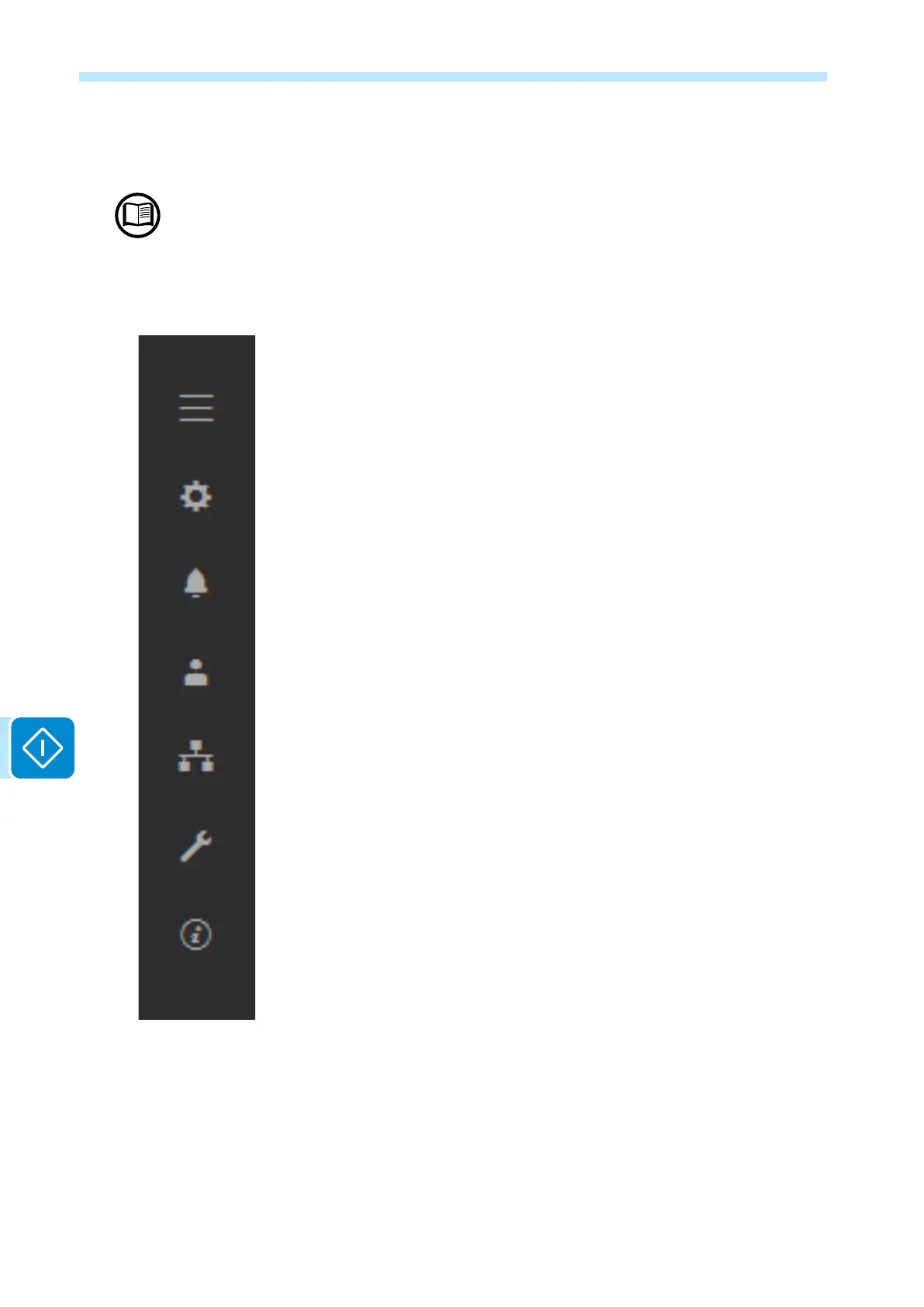

The Web user interface is divided in six main sections, available on the
left sidebar:
MAIN: Main section of web user interface dedicated to viewing the sum
-
mary informations related the status and the production informations of
the inverter and photovoltaic plant.
SETUP: Section dedicated to AC and DC line parameters congurations.
EVENTS: Section dedicated to viewing Alarms and Warnings event log.
USER: Section dedicated to User management.
NETWORK: Section dedicated to inverter communication settings and
congurations.
TOOLS: Section dedicated to main service tools congurations.
INFORMATION: Section dedicated for general informations about the
embedded web user interface.
