- 76 -
000995AG
5 - Installation

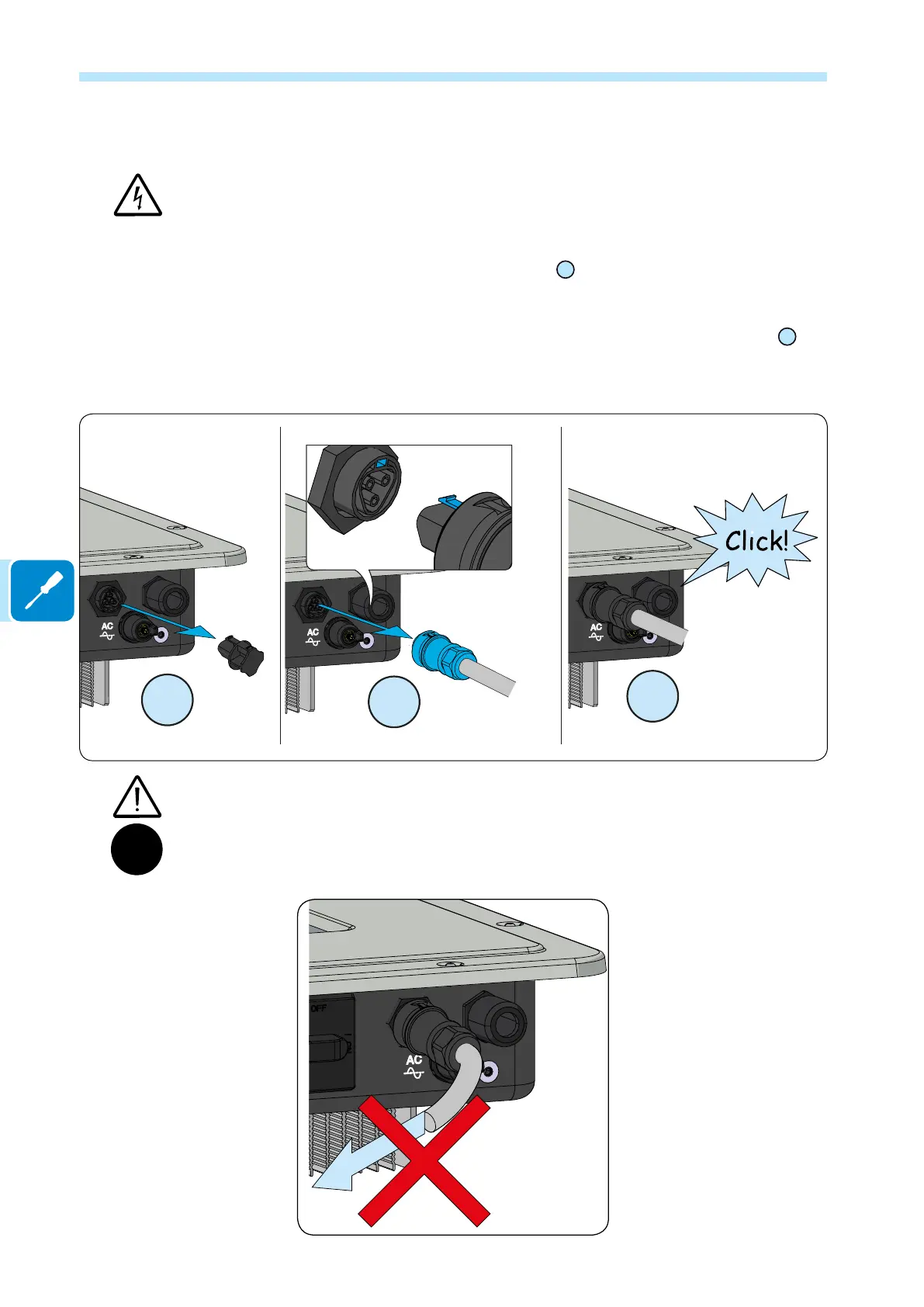

Connection for the AC output connector to the inverter
To avoid risks of electrical shock, all wiring operations must be carried out with the dis-
connect switch downstream of the inverter (grid side) off.
For all inverter models, connection to the electrical grid is carried out
using the AC output connector
10
.
• Remove the pre-installed protective cover on the inverter.
• Insert the corresponding part in the AC output connector
10
be-
ing careful to align the reference points (present on both connectors)
which prevent connection errors.
In order to maintain the inverter's level of IP protection, the corresponding part must be in-
stalled with the AC cable connected or the protective cover, on the AC output connector.
In addition, the connector must not be subject to tensile forces (examples: do not connect
weights to the AC cable, do not leave excess cable windings hanging, etc).
IP65
