ABB UNO-DM-4.0-TL-PLUS User Manual

- 138 -
000699BG
7 - Operation

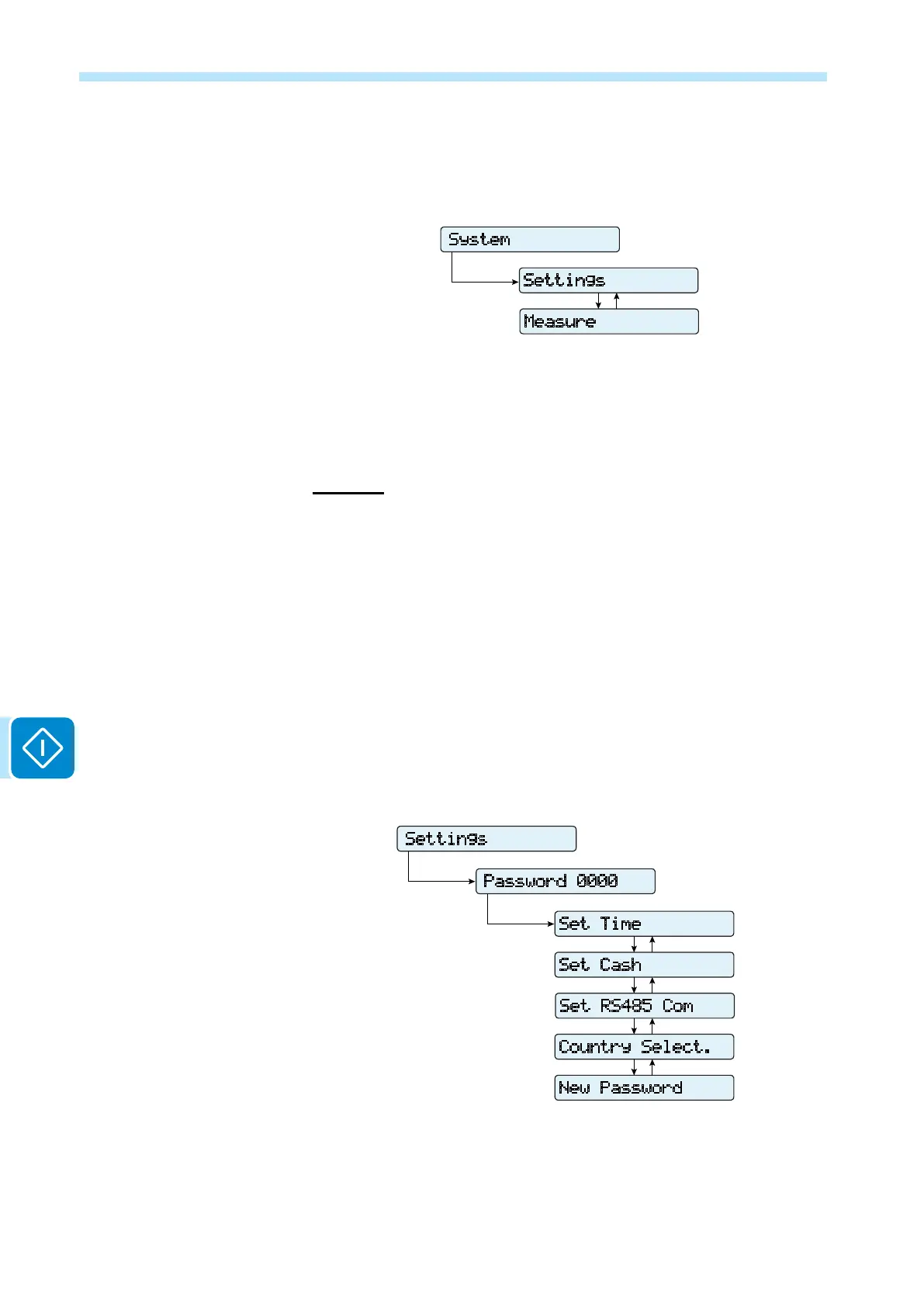

System Menu
By selecting the System menu, the following menus can be accessed:
System
Settings
Measure
DOWN
ENTER
UP
1
2
Settings
Selecting Settings brings up the rst screen relating to the password.
The default password is "0000".
This can be modied by using the display buttons, always following the
same procedure:
• ENTER scrolls through the digits (from left to right)
• ESC returns to the previous digit (from right to left)
• Press ESC several times to return to the previous menus
• DOWN scrolls down the numerical scale (from 9 to 0)
• UP scrolls up the numerical scale (from 0 to 9)
After entering the password, press ENTER to access the information in
this section:
Settings
Set Time
Set Cash
Set RS485 Com
Country Select.
New Password
DOWN
ENTER
Password 0000
ENTER
UP
1
DOWN UP
DOWN UP
DOWN UP
2
3
4
5
1. Set Time
Allows you to set the current date and time (not counting summer time)
