ABB UNO-DM-4.0-TL-PLUS User Manual

- 34 -
000681CG
3 - Characteristics
Efficiency curves
The equipment was designed considering current energy conservation
standards, to avoid waste and unnecessary leakage.
Graphs of the efciency curves of all models of inverter described in this
manual are shown below.
The efciency curves are linked to technical parameters that are continually being developed
and improved and should therefore be considered approximate.

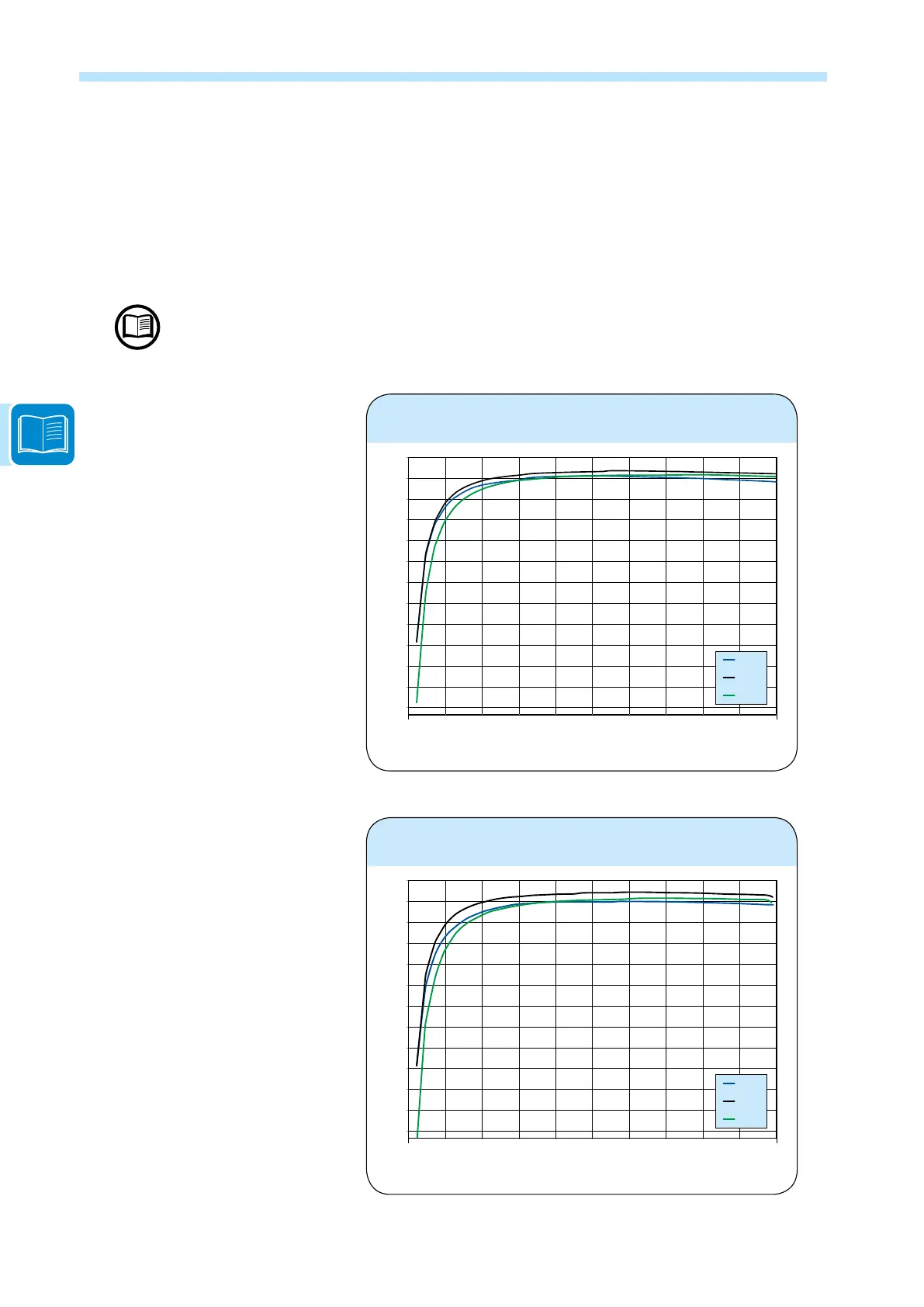

UNO-DM-3.3-TL-PLUS - Efficiency Curves
80
78
76
74
82
84
86
90
88
92
94
96
98
0% 10% 20% 30% 50% 70% 100%
Efficiency [%]
80% 90%60%40%
210Vdc
360Vdc
480Vdc
% of rated Output Power
UNO-DM-4.0-TL-PLUS - Efficiency Curves
80
78
76
74
82
84
86
90
88
92
94
96
98
0% 10% 20% 30% 50% 70% 100%
Efficiency [%]
80% 90%60%40%
210Vdc
360Vdc
480Vdc
% of rated Output Power
