3 - Characteristics

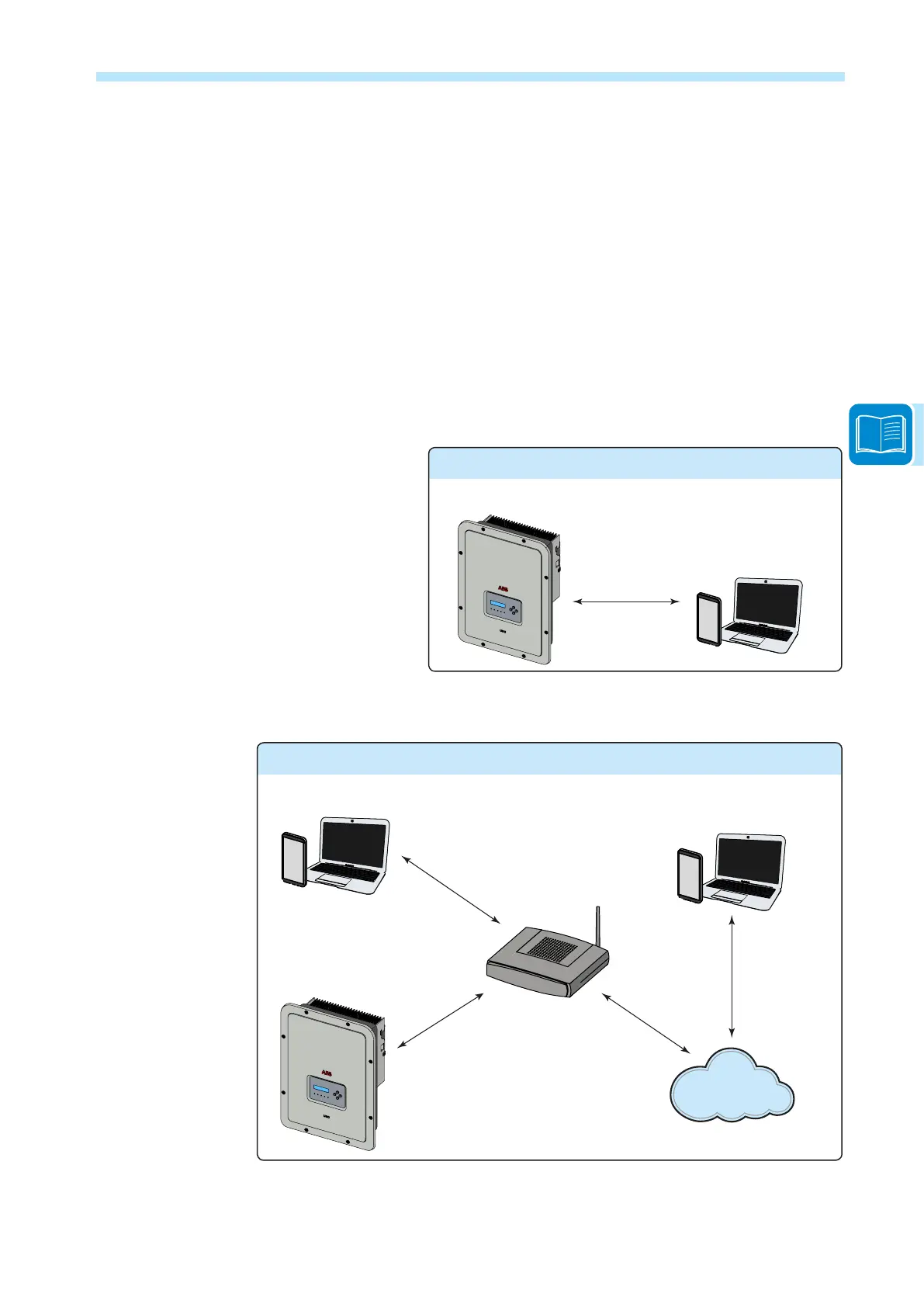

Operating diagram
The plant diagram shows how the integrated WLAN board allows the
inverter to connect to a LAN local network using a wireless connection.
The WLAN board features an advanced integrated webserver that
enables to establish a direct connection to a PC, smartphone or tablet,
allowing for inverter setup and local monitoring of the inverter.
When the inverter is connected to the WLAN network with access to the
Internet, the device allows data to be transferred to the Aurora Vision
®
CLOUD platform for Internet monitoring using the Plant Portfolio Manager
/ Plant Viewer / Plant Viewer for Mobile, Energy Viewer (Mobile App).
“ACCESS POINT MODE” COMMUNICATION
Internet web
Browser
Internal Webserver
User Interface
Direct Access
“STATION MODE” COMMUNICATION
Aurora Vision™
Internet web
Browser
Internal Webserver
User Interface
Wireless
Router
CLOUD
