ABB UNO-DM-4.0-TL-PLUS User Manual

- 58 -
000687CG
5 - Installation
Do not open the inverter in case of rain, snow or high humidity (>95%).
During installation do not place the inverter with the front cover
05
facing the ground.
Install the inverter by following this procedure:
• Place the bracket
01
perfectly level on the wall and use it as a drilling template.
• The selection of the appropriate number and distribution of the anchors is the responsibility of the installer. The choice
must be made according to the type of wall, frame or other type of support, and should be sized considering a total load
of more than 4 times the weight of the inverter (total 4x15=60 kg total). Depending on the type of anchor chosen, drill the
holes required for the xing of the bracket
01
(Figure
A
).
• Fix the bracket to the wall or structure.
• Carefully lift the inverter and hook it onto the bracket by inserting the two supports in the slots on the inverter (Figure
B
).
• Proceed to anchor the inverter to the bracket by installing the two (one for each side) locking screws (Figure
B1
).

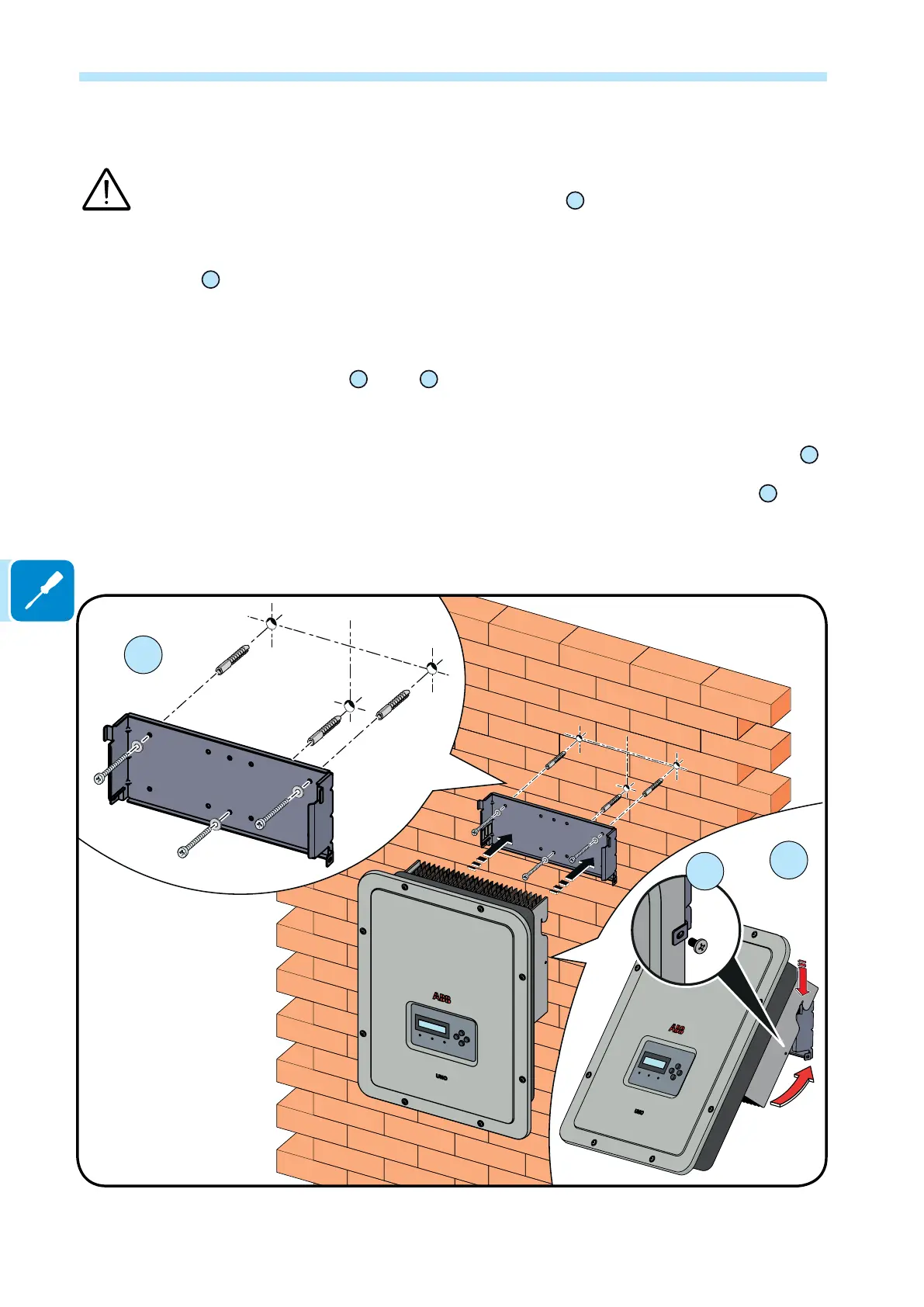

Wall mounting
A
B1
B
