Abov E-PGM Serial User Manual

Functions
8 Button for simultaneous programming of a gang of four or six devices connected
9 System power switch
10 Power adaptor connector for the 15V/2A external power
11
12-pin Molex 5264 connector for the interface with handler equipment
12 USB mini-B connector to a PC
2.3.3 E‐PGM Serial
E-PGM Serial is a standalone ISP type universal programmer capable of programming ABOV’s flash
microcontroller series—94/95/96/97XXXX series (excluding 97F1104S/1204S/1316S) and all 32-bit
microcontrollers. It does not have a TEXTOOL socket and is designed only for on-board manufacturing
purposes.

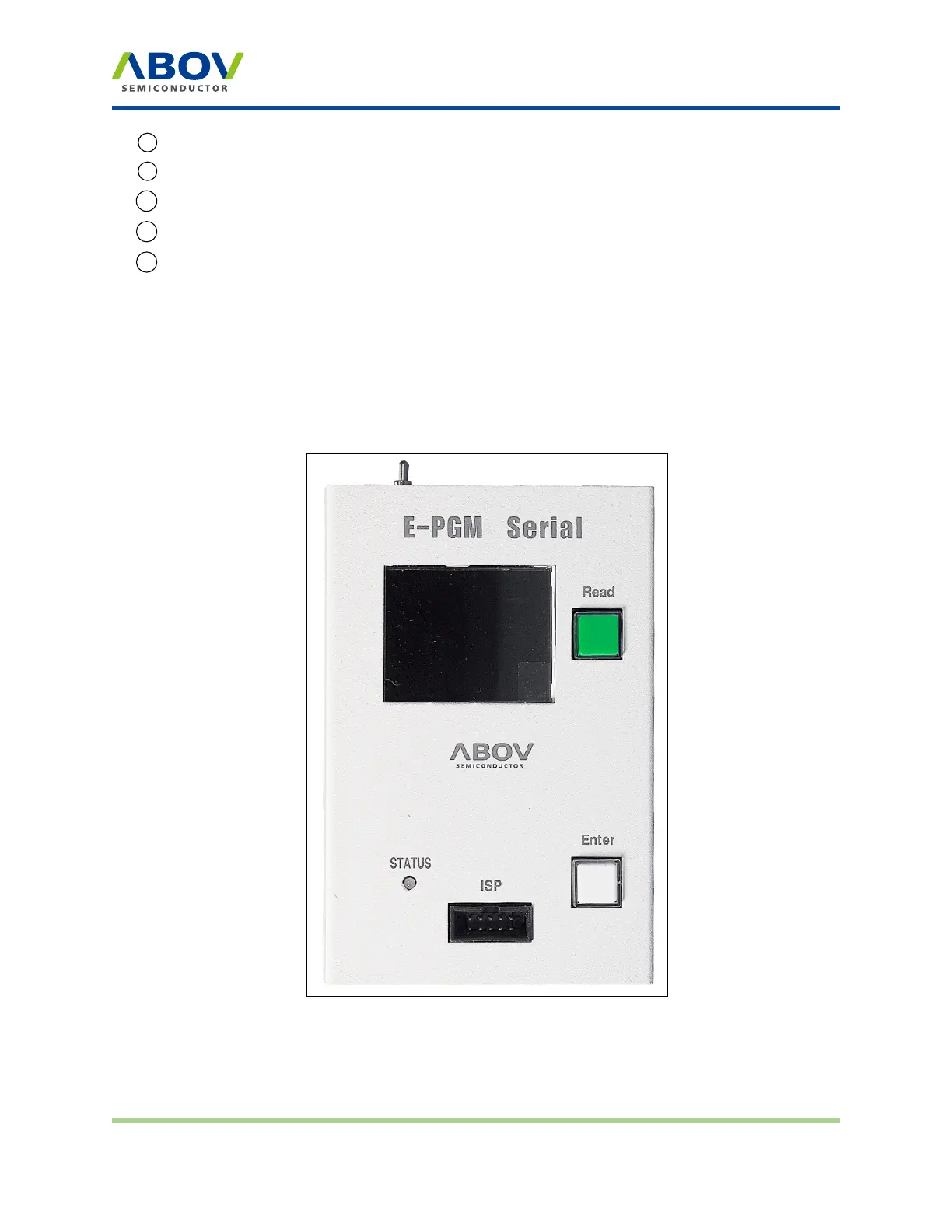

Figure 6: E-PGM serial exterior view
Version 1.0.0 Page 11 / 33 E-PGM+ E-GANG4/E-GANG6 E-PGM Serial

Abov E-PGM Serial Specifications

General

Brand	Abov
Model	E-PGM Serial
Category	Motherboard
Language	English
