Abov E-PGM Serial User Manual

Connecting multiple E-PGM+ units
Chapter 5. Connecng mulple E‐PGM+ units
As an alternative to using a handler, you can connect multiple E-PGM+ units between their Start and Gnd
pins, respectively, as shown below. With this configuration, your button inputs on any single programmer
are delivered to all the connected units. Thus, “multi-write” is supported without a handler. This function
is also available in E-PGM Serial.

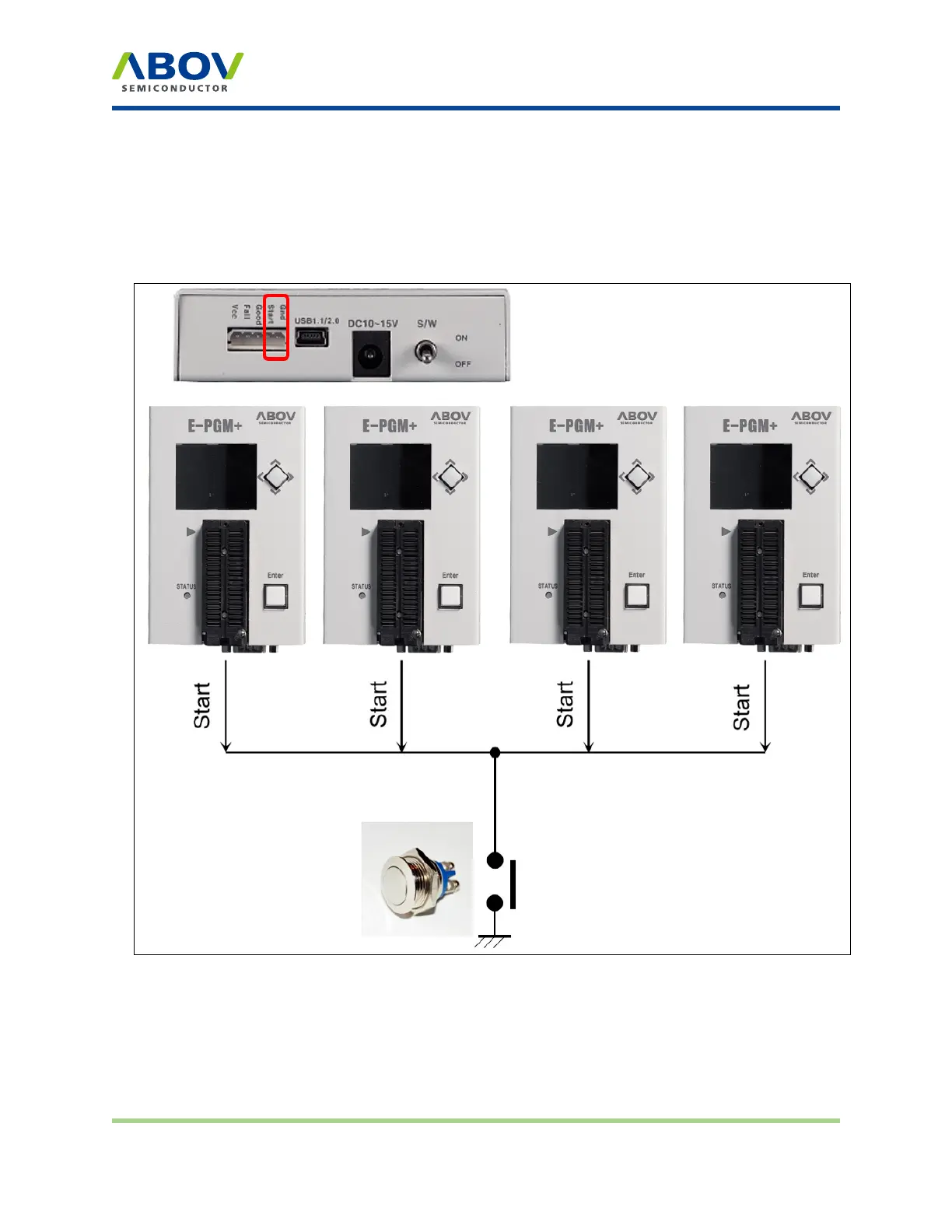

Figure 10: An example connection of multiple E-PGM+ units
Version 1.0.0 Page 31 / 33 E-PGM+ E-GANG4/E-GANG6 E-PGM Serial
