E-PGM+ / E-GANG4/6 / E-PGM Serial User’s Manual 3. Software

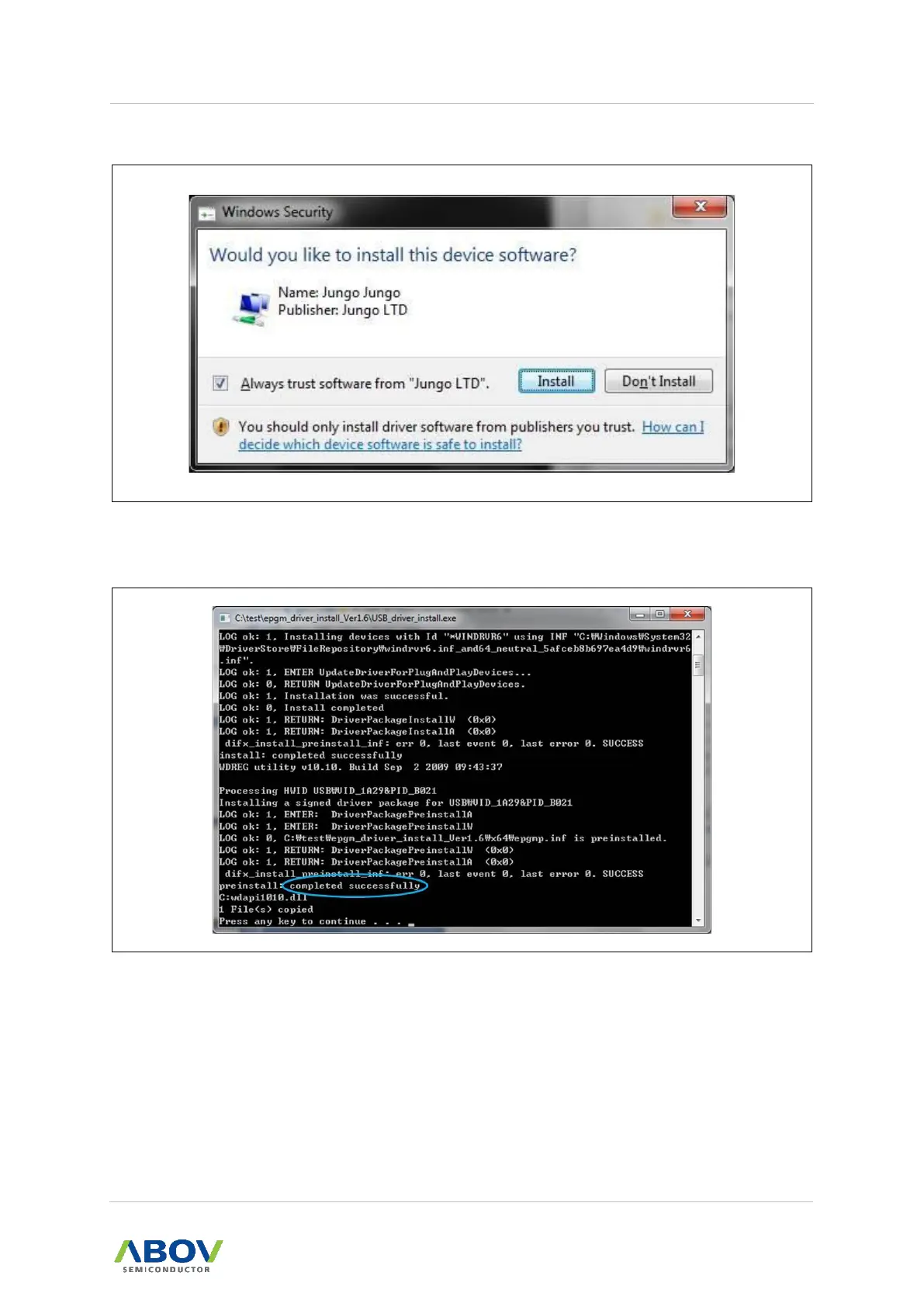

6. Click the ‘Install’ button if the dialog box pops up as shown in Figure 13:

Figure 13. Windows security

7. After executing the ‘exe‘ file, the window shown in Figure 14 appears if the installation is

successful. The installation takes one to three minutes depending on the PC environment.

Figure 14. Driver Installation

The driver installation is complete when the “completed successfully” appears at the

bottom of the CMD window as shown in a blue circle in the figure above.

Table of Contents2
Introduction6
Figure 1. Programmer6
Hardware7
Specifications7
Table 1. Programmer Specifications7
Table 2. Programmer Functions7
Functions8
E-PGM+ Programmer8
Figure 2. E-PGM+ with Target Socket Module8
Figure 3. E-PGM+ Top and Side Views for Function Description9
E-PGM Serial Programmer10
Figure 4. E-PGM Serial Programmer10
Figure 5. E-PGM Serial Top and Side Views for Function Description11
E-GANG4/E-GANG6 Programmer12
Figure 6. E-GANG4 Programmer12
Figure 7. E-GANG6 Programmer12
Figure 8. E-GANG6 Top and Side Views for Function Description13
Pin Configuration15
40-Pin DIP TEXTOOL Socket15
Figure 9. Programming Pin Assignment for 40-Pin DIP TEXTOOL15
Table 3. Pin Assignment for 40-Pin TEXTOOL Socket15
10-Pin Connector16
Figure 10. Programming Pin Assignment for 10-Pin Connector16
Table 4. Connection Table for 10-Pin IDC Connector16
Software17
Software Release17
Software Installation18
Figure 11. Software Download18
Figure 12. Usb_Driver_Install.exe18
Figure 13. Windows Security19
Figure 14. Driver Installation19
Figure 15. Device Manager20
Figure 16. E-Pgm+.Exe20
Figure 17. Windows' Warning Message21
Figure 18. Unblock under Security in Properties Menu21
Software UI Descriptions22
Figure 19. E-PGM+ PC Program22
Figure 20. Software Version Information22
Figure 21. Select Hex File Type23
Figure 22. Save HPO23
Figure 23. Displayed Progress Bar24
Figure 24. Example: Options of A96T41824
Figure 25. Device Password25
Figure 26. Device Select26
Figure 27. Displayed Progress Bar26
Figure 28. Choose Type27
Figure 29. Save HOP (off Line)/Get Code Checksum27
Figure 30. Set VDD28
Figure 31. Tool Options: Erase Data Flash29
Figure 32. Tool Options: Config. Serial ID29
Figure 33. Options of Config. Serial ID30
Figure 34. Tool Options: Config. Limit Number of Write31
Figure 35. Write Counter31
Figure 36. Log Dialog32
Device Selection33
Figure 37. Port Selection33
Figure 38. Device Selection, Load Hex, and Update33
Programmer Self Check35
Figure 39. E-PGM+ Software Settings for Self Check35
Figure 40. Button of Programmers36
Figure 41. Self Check Results36
Programming Error Messages37
Table 5. Error Messages and Causes37
Troubleshooting38
Error Message: 'The Program Can't Start Because Wdapi1010.Dll Is Missing38
Error Message: 'No Firmware Found' or 'Device File Not Found38
Figure 42. Error Message of WDAPI1010.DLL38
Figure 43. Error Message of Firmware or Device File38
Error Message: 'No Valid License' or 'Received an Invalid 32-Bit LOCTL39
Figure 44. Error Message of Validity39
Figure 45. Windrvr6.Ssys39
Connection of Handler40
E-PGM+ / E-PGM Serial Handler Connections40
Figure 46. E-PGM+ Handler Connections40
E-GANG4 Handler Connections41
Figure 47. E-GANG4 Handler Connections41
E-GANG6 Handler Connections42
Figure 48. E-GANG6 Handler Connections42
Connecting Multiple E-PGM+ Units43
PCB V5.5 SW3 Settings44
Revision History46
