Acer Aspire One D270 Series User Manual

3-24 Machine Maintenance Procedures
CAUTION:
!
Make sure all cables are moved away from the device to avoid damage
during removal.

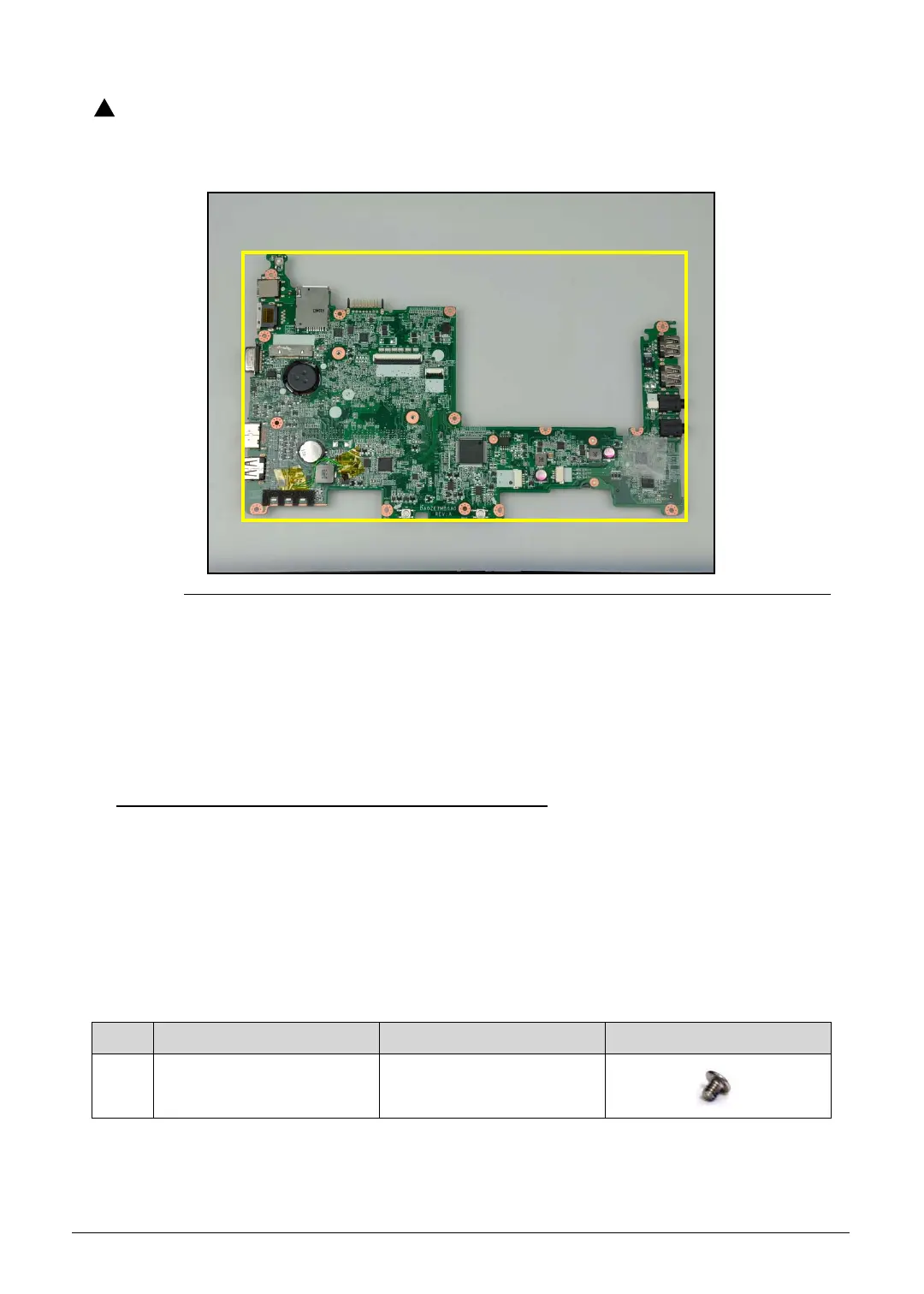

Figure 3-23. Mainboard
IMPORTANT:
+
Circuit boards > 10 cm
2
have been highlighted with a yellow rectangle as
shown in the above image. Remove the circuit board and follow local
regulations for disposal.
Mainboard Installation 0
1. Place the mainboard (A) onto the lower case (Figure 3-21).
2. Install and secure two (2) screws (E) to the mainboard (Figure 3-21).
3. Connect the microphone cable (D) to the mainboard connector (Figure 3-21).
4. Connect the speaker cable (C) to the mainboard connector (Figure 3-21).
5. Connect the LVDS cable (B) to the mainboard connector (Figure 3-21).
6. Install the Bluetooth module.
ID Size Quantity Screw Type
E M2.0*3.0 NI 2
http://mycomp.su - Maintenance and Service Guide,Service Manual,Motherboard Schematics for Laptop/notebook
Ремонт ноутбуков.Запчасти и комплектующие для ноутбука. Схемы,сервис мануалы,инструкции по разборке ноутбука.

Acer Aspire One D270 Series Specifications

General

Graphics	Intel GMA 3600
RAM	1GB or 2GB DDR3
Weight	1.3 kg (2.87 lbs)
Webcam	0.3 MP
Card Reader	Multi-in-1 card reader
Processor	Intel Atom N2600
Display	10.1-inch, 1024 x 600 resolution
Storage	320GB HDD
Operating System	Windows 7 Starter
Battery	6-cell Li-ion
Wireless	Wi-Fi 802.11b/g/n
Ports	3 x USB 2.0, VGA, HDMI
