Using the Oscilloscope
To access the horizontal setup
3-48
To access the horizontal setup
• Click the horizontal setup button at the bottom of the waveform display.
or
• Select Horizontal from the Setup menu.
See figure 3-37.
Using the Horizontal Setup menu, you can set sweep speed, position, and the
horizontal reference. You can also set up the delayed time base window, which
uses software expansion to present a magnified view of an area of the waveform.
See the built-in information system (described in chapter 4) for details.

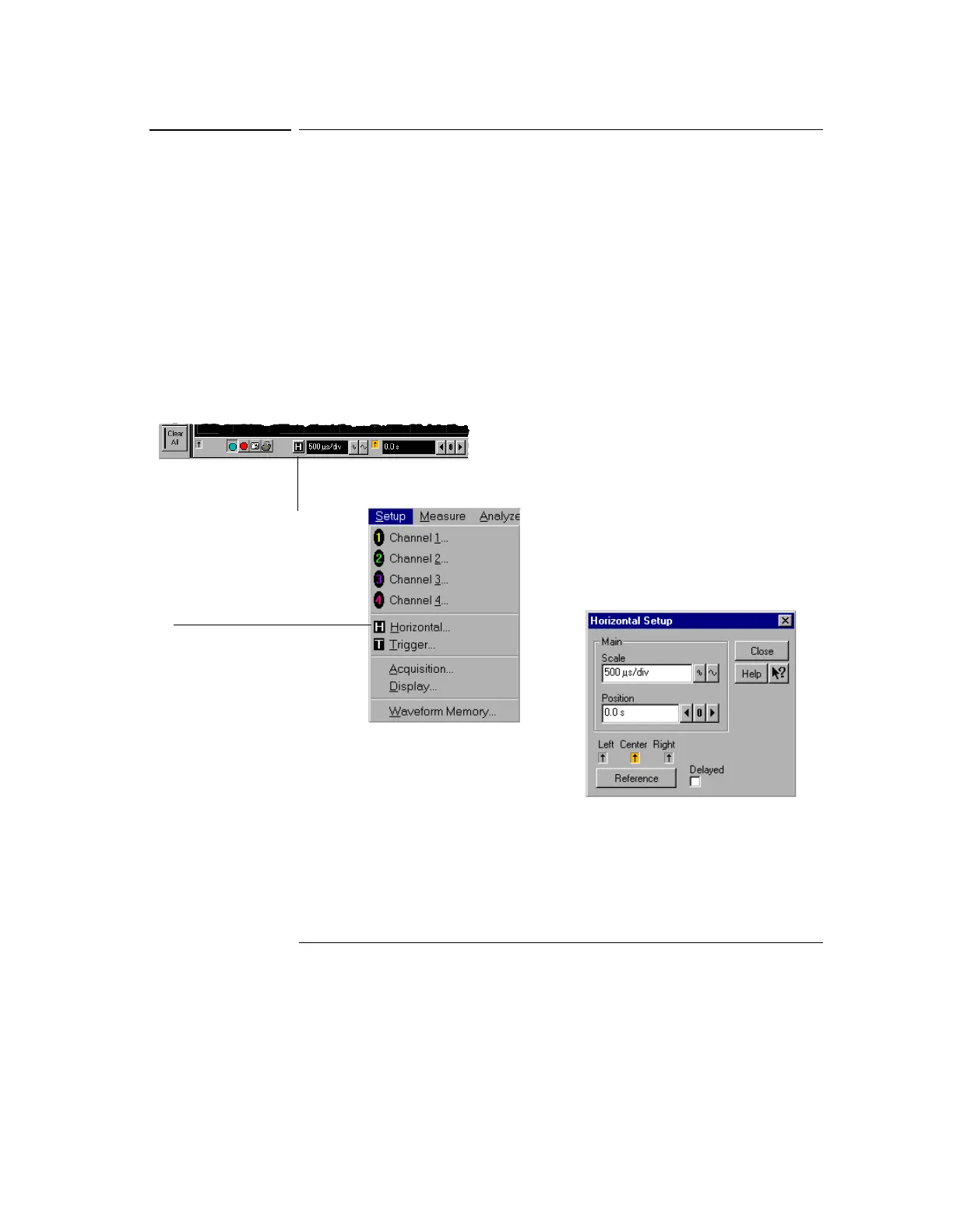

Figure 3-37
Accessing the Horizontal Setup
...or select this
menu item...
...to access the horizontal
setup dialog box.
Click this
button...
