Alcatel-Lucent OmniSwitch 6850 Series User Manual

OmniSwitch 6850 Series Chassis and Hardware Components Mounting the Switch
OmniSwitch 6850 Series Hardware Users Guide August 2007 page 2-57
Mounting the Switch
Note. If you are relocating the switch, be sure to power it down and remove all network, stacking, and
power cables before moving.
Airflow Considerations
Be sure that your switch is placed in a well-ventilated, static-free environment. Always allow adequate
clearance at the front, rear, and sides of the switch.

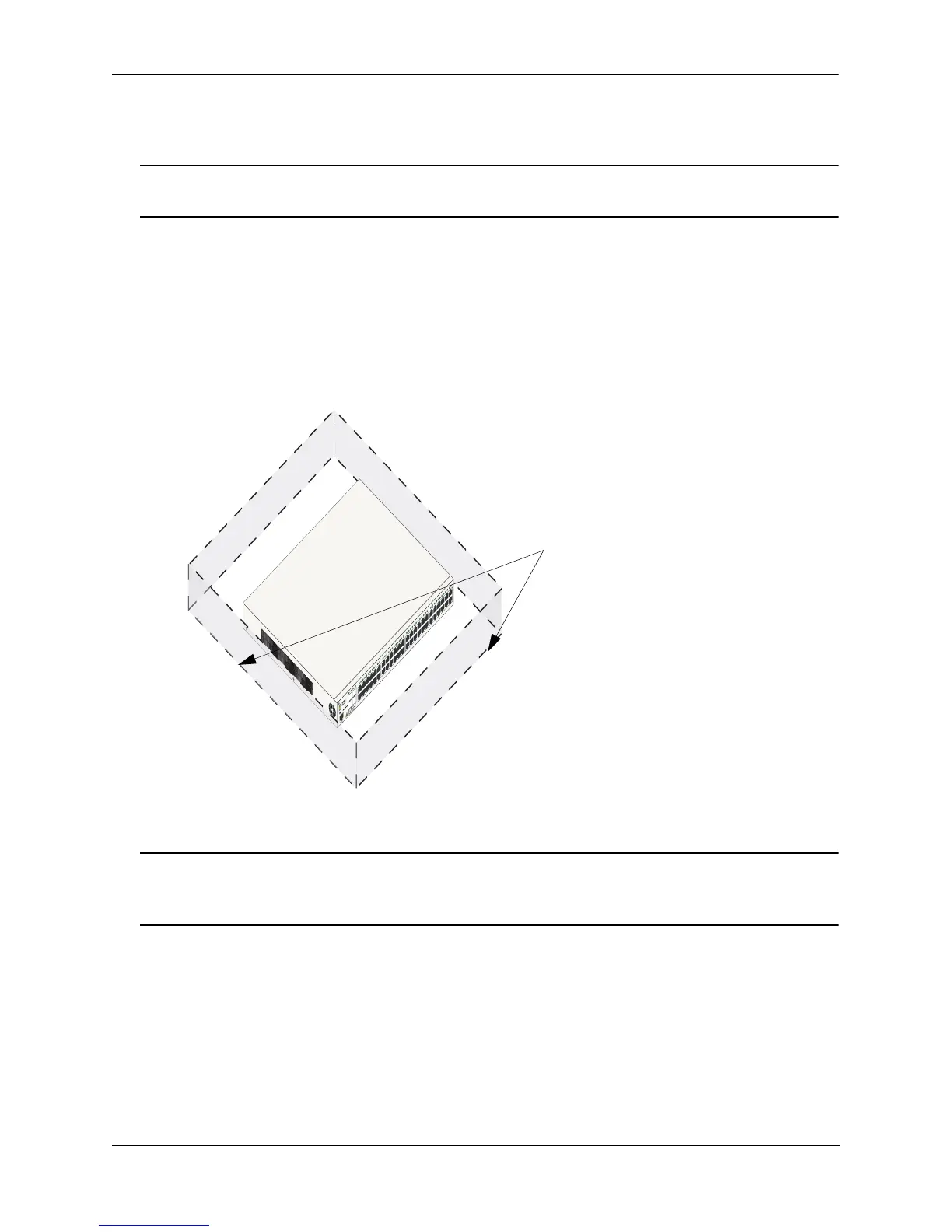

The following diagram shows recommended minimum clearances for adequate chassis airflow and access
to components at the rear of the chassis—e.g., backup power supply connectors and power cord(s).
OmniSwitch 6850 Series Chassis Top View
Note. Never obstruct the air vents located at the sides of the chassis. Obstructing these vents can cause
switch failure. Clearance is not required at the top and bottom of the chassis. For detailed chassis airflow
diagrams, refer to “Chassis Airflow” on page 2-58.
OmniSwitch 6850-48
USB
CLASS 1 LASER PR
ODUCT
OK
1
2
3
4
PRI
PWR
BPS
1 2 3
4 5 6
7 8
9 10 11
12 13
14 15 16
17 18 19
20 21 22
23 24
25 26
27 28 29
30 31
32 33 34
35 36
37 38 39
40 41
42 43 44
45 46 47
48
}
Rear Recommended 5 inches
minimum at rear of chassis for
access to backup power supply
connectors and power cord(s).
Sides 2 inches minimum at left
and right sides for adequate air-
flow. For detailed information on
chassis airflow, refer to page 2-58.
Front Recommended 6 inches
minimum at front of chassis for
access to LEDs and network
cables.
}

Alcatel-Lucent OmniSwitch 6850 Series Specifications

General

Model	OmniSwitch 6850 Series
Switching Capacity	Up to 176 Gbps
Forwarding Rate	Up to 131 Mpps
Stacking	Yes, up to 8 units
Layer Support	Layer 2/3
MAC Address Table Size	32, 000
VLANs	4094
Management	Web, CLI, SNMP
Operating Temperature	0°C to 45°C
Software	Alcatel-Lucent Operating System (AOS)
Jumbo Frame Support	Yes

Summary

About This Guide

Supported Platforms

Lists the OmniSwitch 6850 Series products this guide applies to.

Unsupported Platforms

Lists products this guide does not apply to.

Manual Audience and Content Overview

Details intended audience, manual content, and organization.

Documentation Roadmap

Outlines the user documentation suite and configuration stages.

User Manual CD and Technical Support

Provides info on accessing docs via CD and obtaining technical support.

OmniSwitch 6850 Series

Availability Features

Discusses hardware and software safeguards for continuous data flow and uptime.

OmniSwitch 6850 Series Application Examples

Presents common network applications for the OmniSwitch 6850 Series.

Gigabit-to-the-Desktop Migration

Details the migration path to Gigabit on the LAN edge.

Server Aggregation

Explains the switch's suitability as a server aggregation switch.

Layer 3 Aggregation/Distribution

Covers the switch's role in distribution layer of three-tier networks.

Small Enterprise Core

Describes the switch's function in small enterprise core networks.

OmniSwitch 6850 Series Chassis and Hardware Components

Chassis Descriptions and Specifications

Details various chassis types, technical specs, and components.

Switch Mounting and Installation

Covers methods for mounting and installing the switches.

Booting and Power Management

Explains switch booting procedures and power supply options.

Console Port and Pinouts

Details console port specifications, pinouts, and serial connection settings.

Chassis Monitoring

Explains how to monitor chassis status, fans, and temperature.

Installing and Managing Power over Ethernet (PoE)

Power over Ethernet Specifications

Lists general specifications for Alcatel-Lucent's Power over Ethernet support.

Viewing PoE Power Supply Status

Details how to view the current status of installed power supplies.

Configuring PoE Parameters

Explains how to configure PoE settings: defaults, priority, capacitor detection.

Understanding Priority Disconnect

Explains the priority disconnect function for power budget management.

Monitoring PoE via CLI

Describes how to monitor current PoE statistics and settings using CLI commands.

Managing OmniSwitch 6850 Series Stacks

OmniSwitch 6850 Series Stack Overview

Overview of linking switches into a single virtual chassis for expanded capacity.

Roles Within the Stack

Explains assigned roles (primary, secondary, idle, pass-through) for switches in a virtual chassis.

Stack Cabling and Redundancy

Details stack cabling patterns, redundant connections, and cable status.

Slot Numbering and Assignment

Explains dynamic and manual slot numbering for modules in a stack.

Hot-Swapping and Reloading Switches

Covers adding/removing modules and reloading switches within a stack.

Managing Stack Management Roles

Covers changing secondary to primary roles and synchronizing switches.

Monitoring the Stack

Provides CLI commands useful for monitoring stack conditions and operations.

Regulatory Compliance and Safety Information

Declaration of Conformity and WEEE Statement

States CE compliance and Waste Electrical/Electronic Equipment (WEEE) information.

China RoHS: Hazardous Substance Table

Details hazardous substance content in electronic information products as per China RoHS.

Standards Compliance

Lists safety and EMC standards the product complies with.

Translated Safety Warnings

Provides safety warnings translated into French, German, and Spanish.

Specific Safety Warnings

Covers installation, laser radiation, lithium battery, voltage, and disconnection warnings.
