ALLEN & HEATH CQ Series User Manual

 107
User Guide V1.1.0 Issue 1

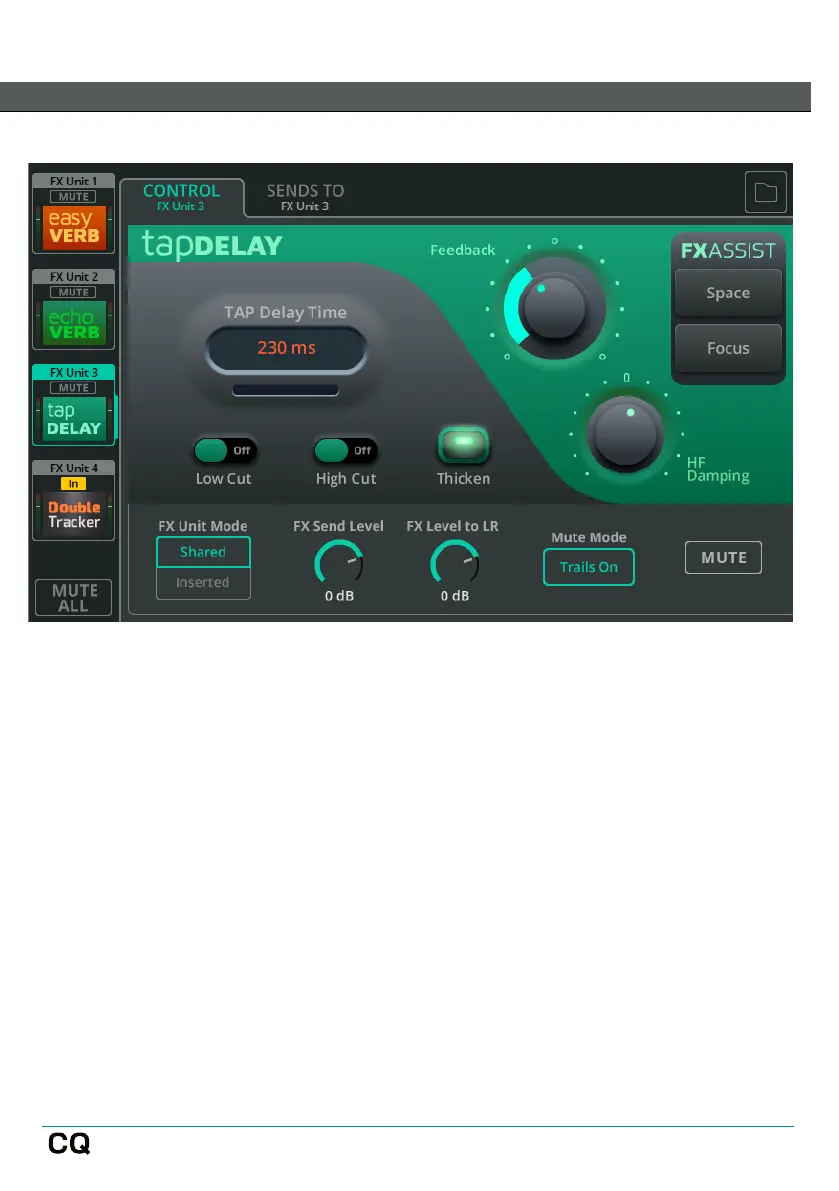

FX Model - Tap Delay
Tap Delay is a single delay which allows the speed of the repeats can be set using
taps on screen or using a Soft Key.
Tap Delay Time – Tap multiple times on the ms value box to set delay time or
select and adjust with the touchscreen rotary (CQ-12T, CQ-18T) or touch and drag
(CQ-MixPad).
Low/High Cut – Cut Low or High frequencies from the sound being repeated.
Thicken – Turn On to make the repeats sound thicker.
Feedback – Adjust the level of the repeats feeding back into the delay.
HF Damping – Adjust the amount of damping on the high frequencies for either a
more digital or more analogue sounding delay.
FX ASSIST - FX Assist looks at the signal passing through the FX Unit and then
makes dynamic adjustments to enhance or improve the sound of the FX. One
option can be selected at any time, or touch/click the selected option to turn FX
Assist Off.

ALLEN & HEATH CQ Series Specifications

General

Type	Digital Mixer
Models	CQ-12T, CQ-18T, CQ-20B
USB Audio	Yes
Bluetooth	Yes
Connectivity	USB, Bluetooth
Control	Touchscreen
EQ	4-band parametric EQ
Compression	Yes
WiFi	Yes
Control App	CQ MixPad
Power Supply	Internal
Effects	Built-in effects engine
