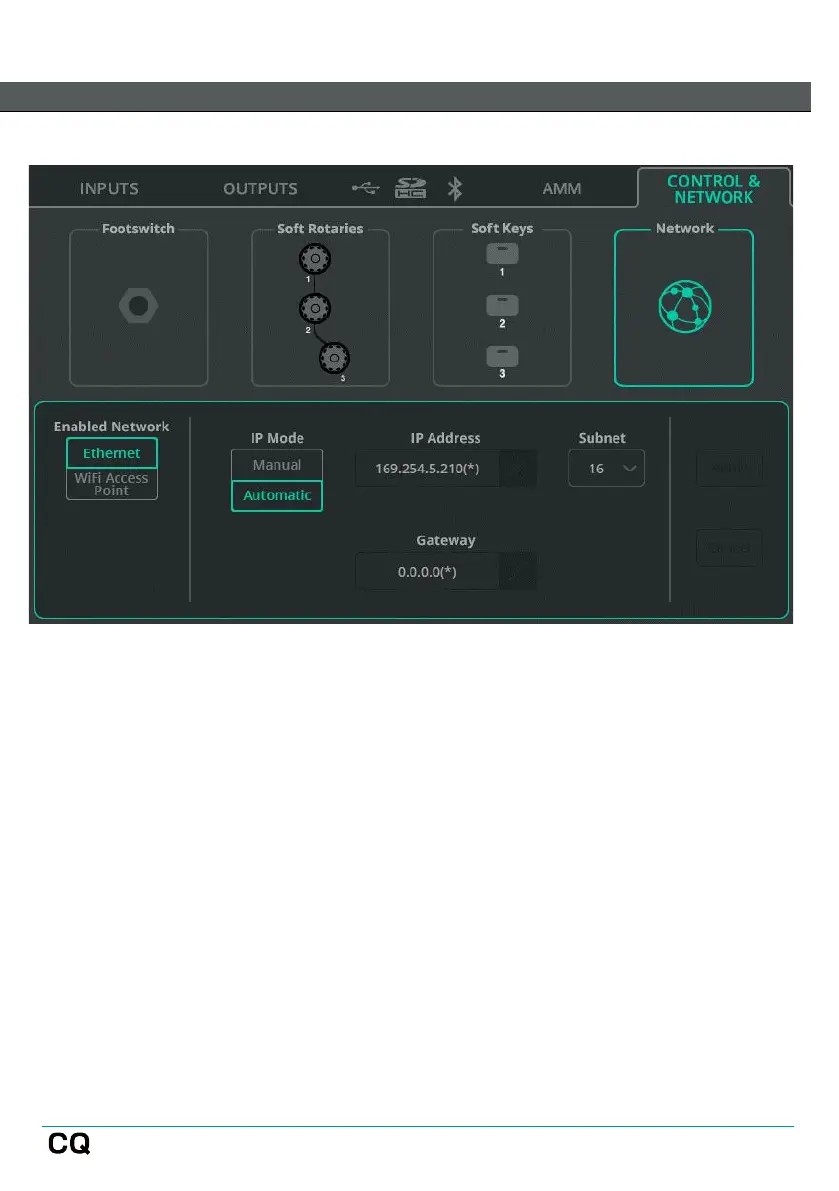

CONTROL & NETWORK / Network (Ethernet)
Enabled Network – Select Ethernet for wired connection through the Network
port. Select Wi-Fi Access Point for wireless connection using the integrated
access point of the unit (CQ-18T, CQ-20B).
IP Mode – It is recommended that IP Mode is left set to Automatic, to allow address
assignment via DHCP when possible. Setting IP Mode to Manual should only be
required where a DHCP host is not available, or for setups where an IT or
networking team needs to allow access and wants the unit to always have the
same address.
When IP Mode is set to Automatic and no IP address is provided to the CQ, it will auto
assign itself an address. This is noted by a (*) appearing after the address in the
network config and system information screens.
If IP Mode is set to Manual and the change is applied before editing the address,
gateway and subnet, the defaults can be found in the Default Network Settings
section of this guide.
