96 Rockwell Automation Publication 1734-UM013C-EN-P - August 2010
Chapter 7 Configure the Module for a SmartGuard Controller
Use Help

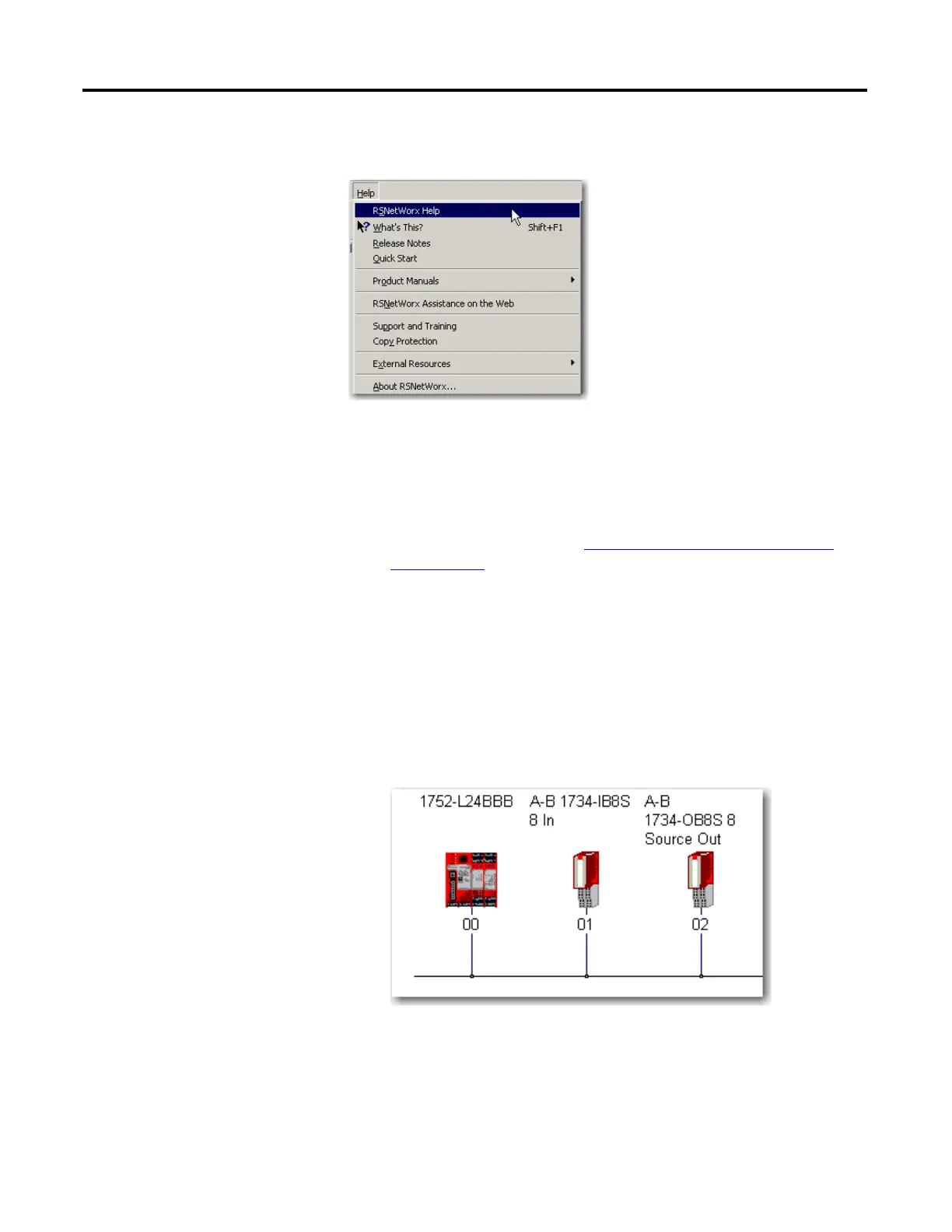

For information about RSNetWorx for DeviceNet software, from the Help
menu, choose RSNetWorx Help.
Work with RSNetWorx for
DeviceNet Software
Before you begin to design a project with RSNetWorx for DeviceNet software,
follow these procedures.
1. Load the proper electronic data sheet (EDS) files by using the EDS
Hardware Installation Tool at http://www.rockwellautomation.com/
resources/eds/.
Be sure to include your 1752 SmartGuard controller and POINT Guard
I/O modules.
2. From RSLinx software, open RSWho and select the SmartGuard driver.
RSWho browses the DeviceNet network connected to the SmartGuard
controller.
In this example, two POINT Guard I/O modules are connected to the
SmartGuard controller.
If RSLinx software finds the nodes on the DeviceNet network,
RSNetWorx for DeviceNet software also finds the nodes.
3. Open RSNetWorx for DeviceNet software.
