Publication 1764-UM001B-EN-P - April 2002
2-16 Installing Your Controller
Base Unit Panel Mounting
Mount to panel using #8 or M4 screws.
To install your base unit using mounting screws:
1. Remove the mounting template from the inside back cover of
the MicroLogix 1500 Programmable Controller Base Units
Installation Instruction, publication 1764-IN001.
2. Secure the template to the mounting surface. (Make sure your
base unit is spaced properly, see Controller Spacing on page
2-12).
3. Drill holes through the template.
4. Remove the mounting template.
5. Mount the base unit.
6. Leave the protective debris strips attached until you are finished
wiring the base unit and any other devices.

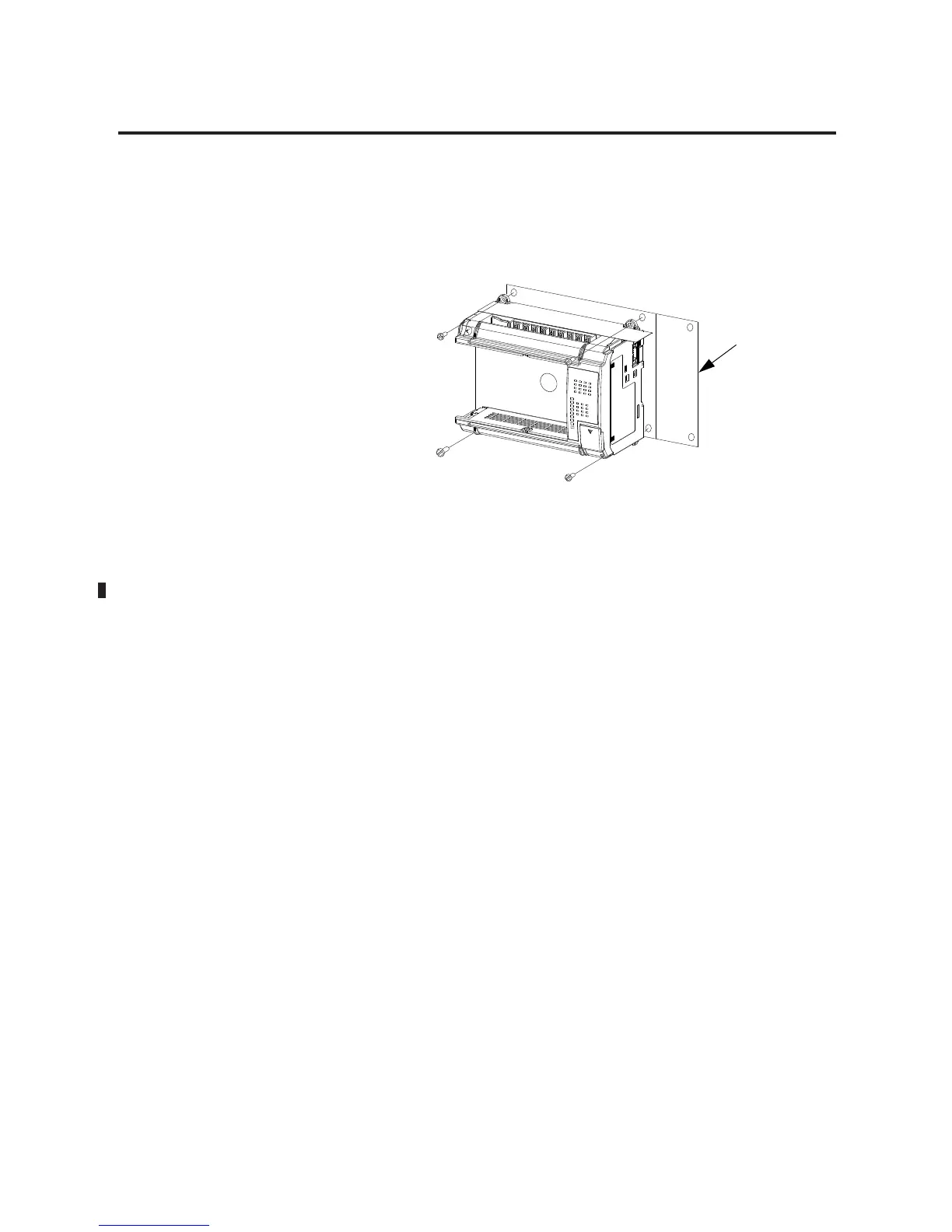

Mounting Template
