Allen-Bradley micrologix 1500 User Manual

Publication 1764-UM001B-EN-P - April 2002
4-8 Communication Connections

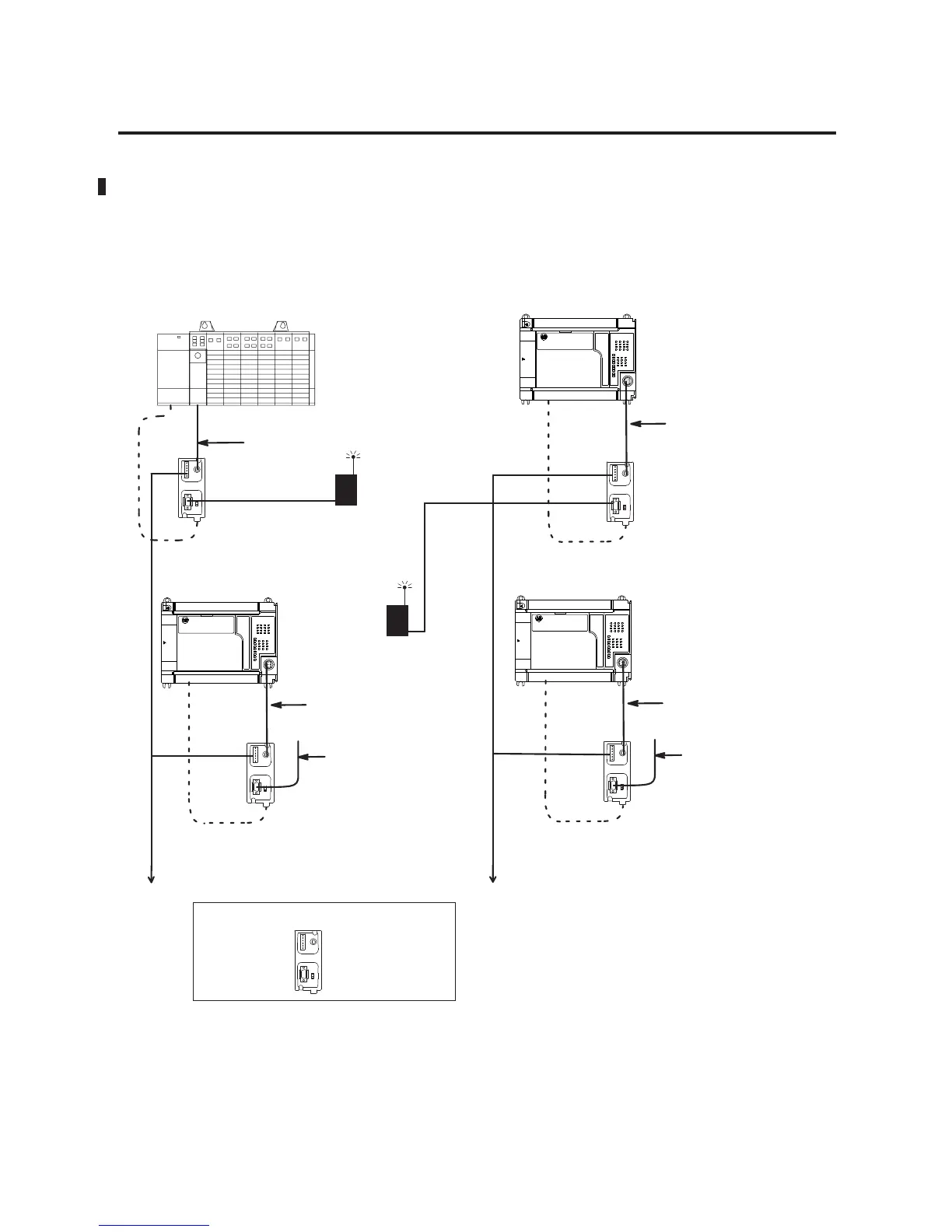

DF1 Half-Duplex Master-Slave Network
Use this diagram for DF1 Half-Duplex Master-Slave protocol without
hardware handshaking.
SLC 5/03 (DF1 Master)
MicroLogix 1500 (DF1 Slave)
MicroLogix 1500 (DF1 Slave)
MicroLogix 1500 (DF1 Slave)
CH0
CH0
CH0 to port 1 or port 2
CH0 to port 1 or port 2
1761-CBL-AP00 or
1761-CBL-PM02
1761-CBL-AM00 or
1761-CBL-HM02
1761-CBL-AM00 or
1761-CBL-HM02
1761-CBL-AP00 or
1761-CBL-PM02
1761-CBL-AP00 or
1761-CBL-PM02
1761-CBL-AM00 or
1761-CBL-HM02
straight 9-25 pin cable
straight 9-25
pin cable
radio modem
or lease line
radio modem
or lease line
AIC+
AIC+
AIC+
AIC+
REFERENCE: AIC+ Port Identification
Port 2: mini-DIN 8 RS-232
Port 3: RS-485
Port 1: DB-9 RS-232
