Rockwell Automation Publication 22-TD001I-EN-P - June 2013 19
PowerFlex 4 and 40 AC Drives
Specifications

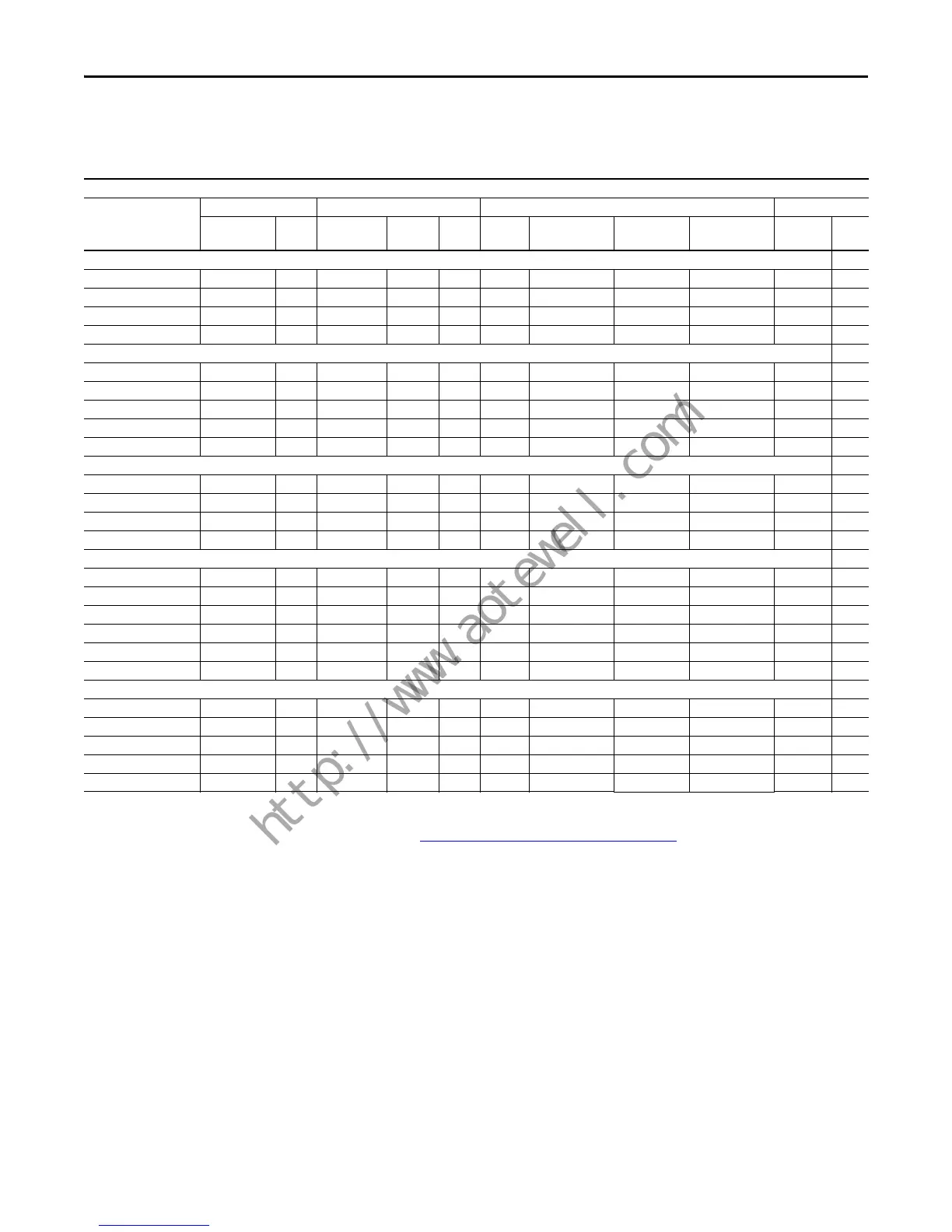

Drive Ratings — PowerFlex 4
Catalog Number
Output Ratings Input Ratings Branch Circuit Protection Power Dissipation
kW (HP) Amps
Voltage
Range kVA Amps Fuses
(2)
(2) Recommended Fuse Type: UL Class J, CC, T or Type BS88; 600V (550V) or equivalent.
140M Motor
Protectors
(3)
(4)
(3) The AIC ratings of the Bulletin 140M Motor Protector Circuit Breakers may vary. See Bulletin 140M Motor Protection Circuit Breakers Application Ratings.
(4) Manual Self-Protected (Type E) Combination Motor Controller, UL listed for 208 Wye or Delta, 240 Wye or Delta, 480Y/277 or 600Y/347. Not UL listed for use on 480V or 600V Delta/Delta, corner ground,
or high-resistance ground systems.
Contactors
Min. Enclosure
Volume
(5)
(in.
3
)
(5) When using a Manual Self-Protected (Type E) Combination Motor Controller, the drive must be installed in a ventilated or non-ventilated enclosure with the minimum volume specified in this column.
Application specific thermal considerations may require a larger enclosure.
Internal Total
100…120V AC – 1-Phase Input, 0…230V 3-Phase Output
22A-V1P5N104 0.2 (0.25) 1.5 90…126 0.75 6.0 10 140M-C2E-C10 100-C09 1655 10 25
22A-V2P3N104 0.4 (0.5) 2.3 90…126 1.15 9.0 15 140M-C2E-C16 100-C12 1655 9 30
22A-V4P5N104 0.75 (1.0) 4.5 90…126 2.25 18.0 30 140M-D8E-C20 100-C23 1655 12 50
22A-V6P0N104 1.1 (1.5) 6.0 90…126 3.00 24.0 40 140M-F8E-C32 100-C37 1655 12 70
200…240V AC – 1-Phase Input, 0…230V 3-Phase Output (No Brake)
(1)
(1) 200…240V AC - 1-Phase drives are also available with an integral EMC filter. Catalog suffix changes from N104 to N114 or N103 to N113.
22A-A1P4N103 0.2 (0.25) 1.4 180…265 0.7 3.2 6 140M-C2E-B40 100-C09 1655 10 25
22A-A2P1N103 0.4 (0.5) 2.1 180…265 1.05 5.3 10 140M-C2E-B63 100-C09 1655 9 30
22A-A3P6N103 0.75 (1.0) 3.6 180…265 1.8 9.2 15 140M-C2E-C16 100-C12 1655 12 50
22A-A6P8N103 1.5 (2.0) 6.8 180…265 3.4 14.2 25 140M-C2E-C16 100-C16 1655 16 80
22A-A9P6N103 2.2 (3.0) 9.6 180…265 4.8 19.6 30 140M-D8E-C25 100-C23 1655 11 110
200…240V AC – 1-Phase Input, 0…230V 3-Phase Output
(1)
22A-A1P5N104 0.2 (0.25) 1.5 180…265 0.75 5.0 10 140M-C2E-B63 100-C09 1655 10 25
22A-A2P3N104 0.4 (0.5) 2.3 180…265 1.15 6.0 10 140M-C2E-B63 100-C09 1655 9 30
22A-A4P5N104 0.75 (1.0) 4.5 180…265 2.25 10.0 15 140M-C2E-C16 100-C12 1655 12 50
22A-A8P0N104 1.5 (2.0) 8.0 180…265 4.0 18.0 30 140M-D8E-C20 100-C23 1655 16 80
200…240V AC – 3-Phase Input, 0…230V 3-Phase Output
22A-B1P5N104 0.2 (0.25) 1.5 180…265 0.75 1.8 3 140M-C2E-B25 100-C09 1655 10 25
22A-B2P3N104 0.4 (0.5) 2.3 180…265 1.15 2.5 6 140M-C2E-B40 100-C09 1655 9 30
22A-B4P5N104 0.75 (1.0) 4.5 180…265 2.25 5.2 10 140M-C2E-C10 100-C09 1655 12 50
22A-B8P0N104 1.5 (2.0) 8.0 180…265 4.0 9.5 15 140M-C2E-C16 100-C12 1655 16 80
22A-B012N104 2.2 (3.0) 12.0 180…265 5.5 15.5 25 140M-C2E-C16 100-C16 1655 16 115
22A-B017N104 3.7 (5.0) 17.5 180…265 8.6 21.0 35 140M-F8E-C25 100-C23 1655 16 165
380…480V AC – 3-Phase Input, 0…460V 3-Phase Output
22A-D1P4N104 0.4 (0.5) 1.4 340…528 1.4 1.8 3 140M-C2E-B25 100-C09 1655 15 30
22A-D2P3N104 0.75 (1.0) 2.3 340…528 2.3 3.2 6 140M-C2E-B40 100-C09 1655 13 40
22A-D4P0N104 1.5 (2.0) 4.0 340…528 4.0 5.7 10 140M-C2E-B63 100-C09 1655 13 60
22A-D6P0N104 2.2 (3.0) 6.0 340…528 5.9 7.5 15 140M-C2E-C10 100-C09 1655 17 90
22A-D8P7N104 3.7 (5.0) 8.7 340…528 8.6 9.0 15 140M-C2E-C16 100-C16 1655 14 145
