Allen-Bradley PowerFlex 70 Installation Guide

Publication 20A-IN009C-EN-P

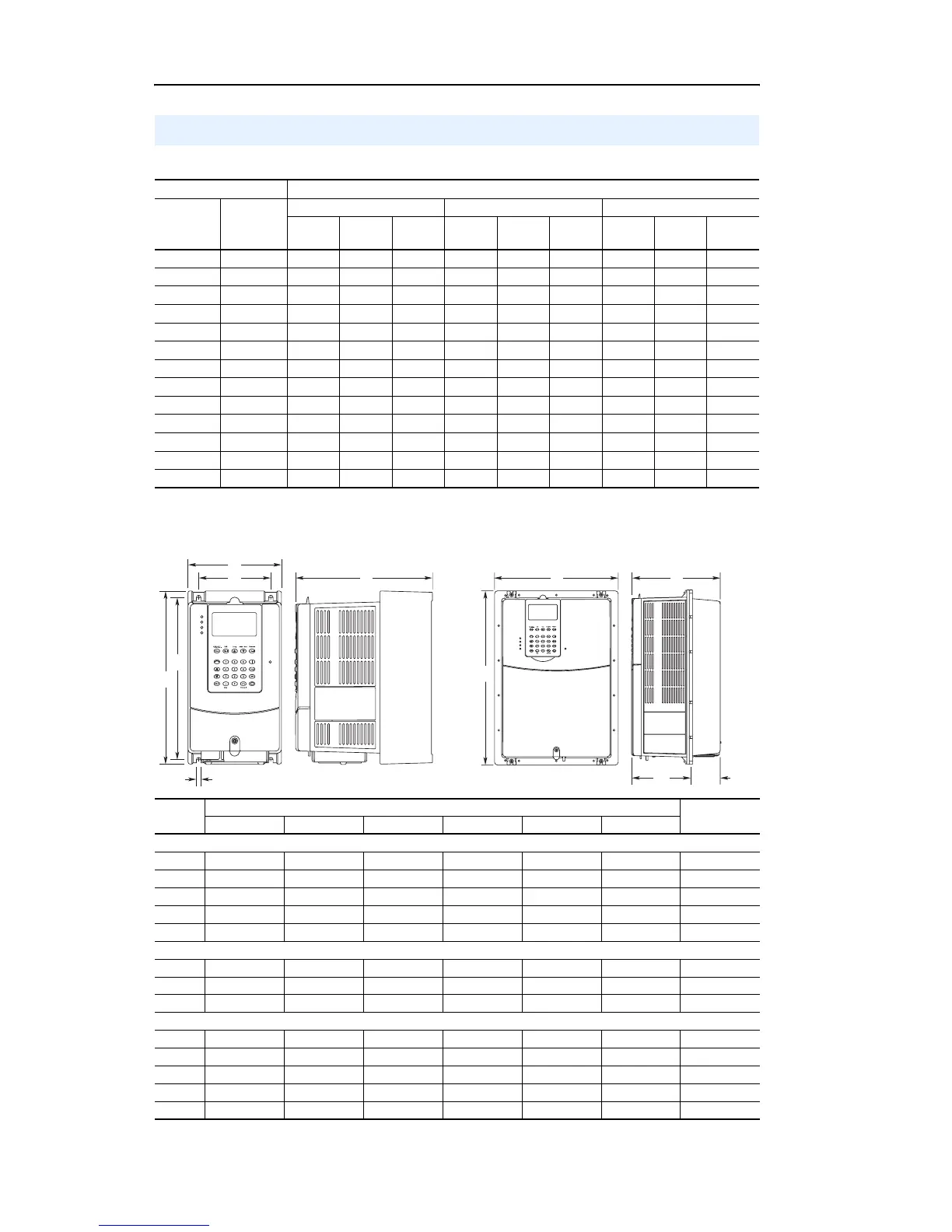

10 PowerFlex® 70 Adjustable Frequency AC Drive Installation Instructions
Table B PowerFlex 70 Frames
Dimensions
Output Power Frame Size
kW
ND (HD)
HP
ND (HD)
208…240V AC Input 400…480V AC Input 600V AC Input
Not
(1)
Filtered
(2)
Filtered
IP66
(4X/12)
Not
(1)
Filtered
(2)
Filtered
IP66
(4X/12)
Not
(1)
Filtered
(2)
Filtered
IP66
(4X/12)
0.37 (0.25) 0.5 (0.33) A B B A B B A – B
0.75 (0.55) 1 (0.75) A B B A B B A – B
1.5 (1.1)2 (1.5)BBBABBA–B
2.2 (1.5)3 (2)BBBBBBB–B
4 (3)5 (3)–CDBBBB– B
5.5 (4) 7.5 (5) – D D – C D C – D
7.5 (5.5) 10 (7.5) – D D – C D C – D
11 (7.5) 15 (10) – D D – D D D – D
15 (11) 20 (15) – E E – D D D – D
18.5 (15) 25 (20) – E E – D D D – D
22 (18.5) 30 (25) – – – – D D D – D
30 (22) 40 (30) – – – – E E – E E
37 (30) 50 (40) – – – – E E – E E
(1) Not Filtered indicated if Position 13 of the Catalog Number = N.
(2) Filtered indicated if Position 13 of the Catalog Number = A.
A
E
B
D
F
C
B
AC
D E
IP20/66 (NEMA/UL Type 1/4X/12) Flange Mount
Frame
Dimension Dimensions are in millimeters and (inches)
Weight
(1)
kg (lb)ABCDEF
IP20 / NEMA Type 1
A 122.4 (4.82) 225.7 (8.89) 179.8 (7.08) 94.2 (3.71) 211.6 (8.33) 5.8 (0.23) 2.71 (6.0)
B 171.7 (6.76) 234.6 (9.24) 179.8 (7.08) 122.7 (4.83) 220.2 (8.67) 5.8 (0.23) 3.60 (7.9)
C 185.0 (7.28) 300.0 (11.81) 179.8 (7.08) 137.6 (5.42) 285.6 (11.25) 5.8 (0.23) 6.89 (15.2)
D 219.9 (8.66) 350.0 (13.78) 179.8 (7.08) 169.0 (6.65) 335.6 (13.21) 5.8 (0.23) 9.25 (20.4)
E 280.3 (11.04) 555.8 (21.88) 207.1 (8.15) 200.0 (7.87) 491.0 (19.33) 6.9 (0.27) 18.60 (41.0)
IP66 / NEMA Type 4X/12
B 171.7 (6.76) 239.8 (9.44) 203.3 (8.00) 122.7 (4.83) 220.2 (8.67) 5.8 (0.23) 3.61 (8.0)
D 219.9 (8.66) 350.0 (13.78) 210.7 (8.29) 169.0 (6.65) 335.6 (13.21) 5.8 (0.23) 9.13 (20.1)
E 280.3 (11.04) 555.8 (21.88) 219.8 (8.65) 200.0 (7.87) 491.0 (19.33) 6.9 (0.27) 18.60 (41.0)
Flange Mount
A 156.0 (6.14) 225.8 (8.89) 178.6 (7.03) 123.0 (4.84) 55.6 (2.19) – 2.71 (6.0)
B 205.2 (8.08) 234.6 (9.24) 178.6 (7.03) 123.0 (4.84) 55.6 (2.19) – 3.60 (7.9)
C 219.0 (8.62) 300.0 (11.81) 178.6 (7.03) 123.0 (4.84) 55.6 (2.19) – 6.89 (15.2)
D 248.4 (9.78) 350.0 (13.78) 178.6 (7.03) 123.0 (4.84) 55.6 (2.19) – 9.25 (20.4)
E 280.3 (11.04) 555.8 (21.88) 207.1 (8.15) 117.2 (4.61) 89.9 (3.54) – 18.60 (41.0)
(1) Weights include Human Interface Module (HIM).
