Publication 20A-IN009C-EN-P
PowerFlex® 70 Adjustable Frequency AC Drive Installation Instructions 37

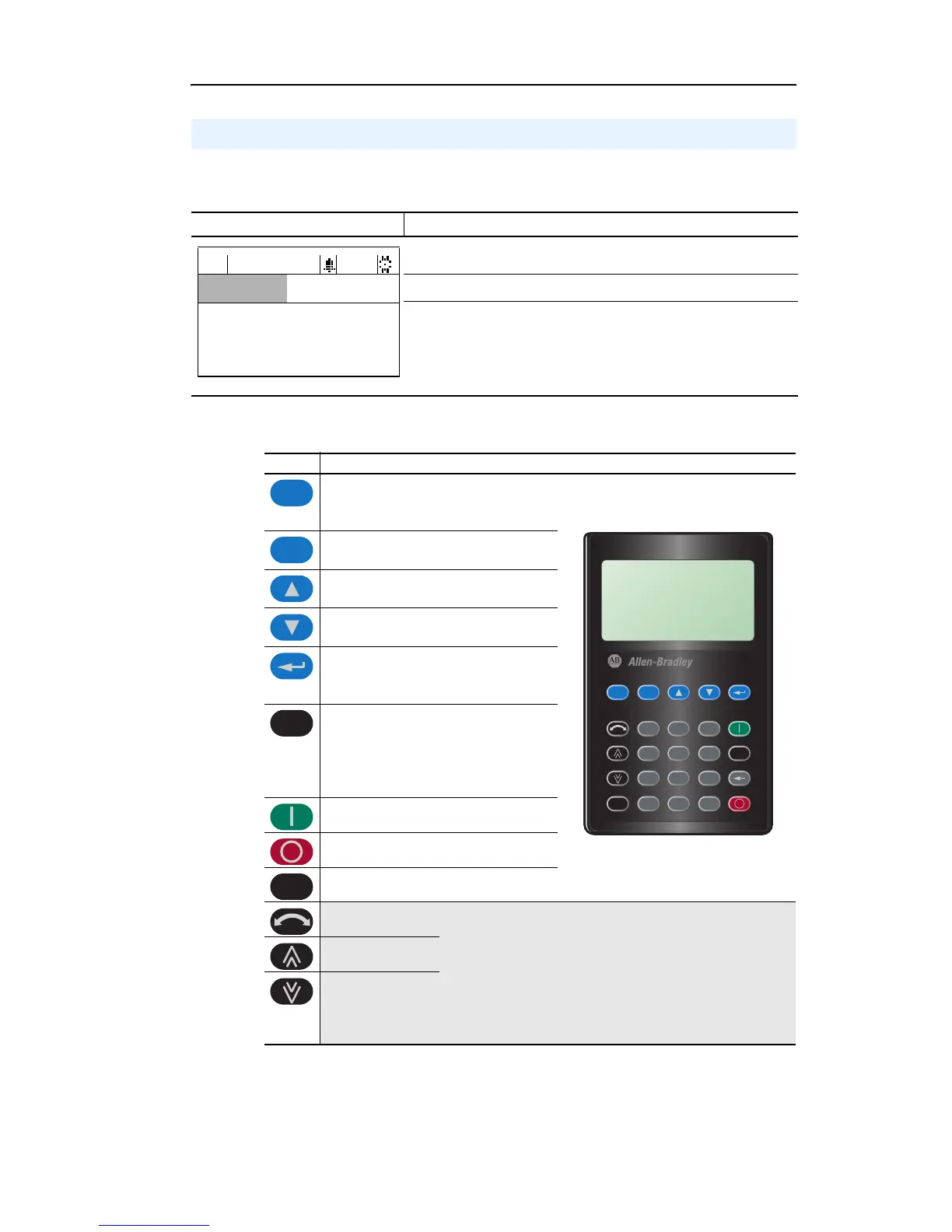

LCD Display Elements
Human Interface Module (HIM) Key Functions
Human Interface Module (HIM) Overview
Display Description
Direction⎥ Drive Status⎥ Alarm⎥ Auto/Man⎥ Information
Commanded or Output Frequency
Programming / Monitoring / Troubleshooting
F-> Power Loss Auto
0.0
Hz
Main Menu:
Diagnostics
Parameter
Device Select
Key Description
Exit a menu, cancel a change to a
parameter value, or acknowledge a
fault/alarm.
Select a digit, select a bit, or enter edit
mode in a parameter screen.
Scroll through options, increase a
value, or toggle a bit.
Scroll through options, decrease a
value, or toggle a bit.
Enter a menu, enter edit mode in a
parameter screen, or save a change to
a parameter value.
Access the function associated with a
programming or numeric key. Provides
access to the Large Format Display.
Refer to the drive user manual for
more information.
Start the drive.
Stop the drive or clear a fault.
Jog the drive.
Change direction. These keys are active only when the HIM is granted
Manual Control or Param. 090 [Speed Ref A Sel] / 093
[Speed Ref B Sel] is set to:
Option 18 “DPI Port 1” for a HIM installed in the drive cover
or
Option 19 “DPI Port 2” for a HIM connected by cable for
handheld or remote installation option
Increase speed.
Decrease speed.
Esc
Esc
7 8 9
4 5 6
1 2 3
.
0 +/-
Sel
Jog
Alt
Exp
Param #
S.M.A.R.T.
View
Lang
Auto / Man
Remove
Human Interface Module (HIM)
Sel
ALT
Jog
