Rockwell Automation Publication 20C-PM001F-EN-P - March 2012 13
Drive Start-Up Chapter 1
Running S.M.A.R.T. Start
During a Start Up, the majority of applications require changes to only a few
parameters. The LCD HIM on a PowerFlex 700H drive offers S.M.A.R.T. start,
which displays the most commonly changed parameters. With these parameters,
you can set the following functions:
S - Start Source and Stop Mode
M - Minimum and Maximum Speed
A - Accel Time 1 and Decel Time 1
R - Reference Source
T - Thermal Motor Overload
To run a S.M.A.R.T. start routine, follow these instructions:
Running an Assisted Start Up
The Assisted start-up routine asks simple yes or no questions and prompts you to
input required information. Access Assisted Start Up by selecting “Start Up”
from the Main Menu.

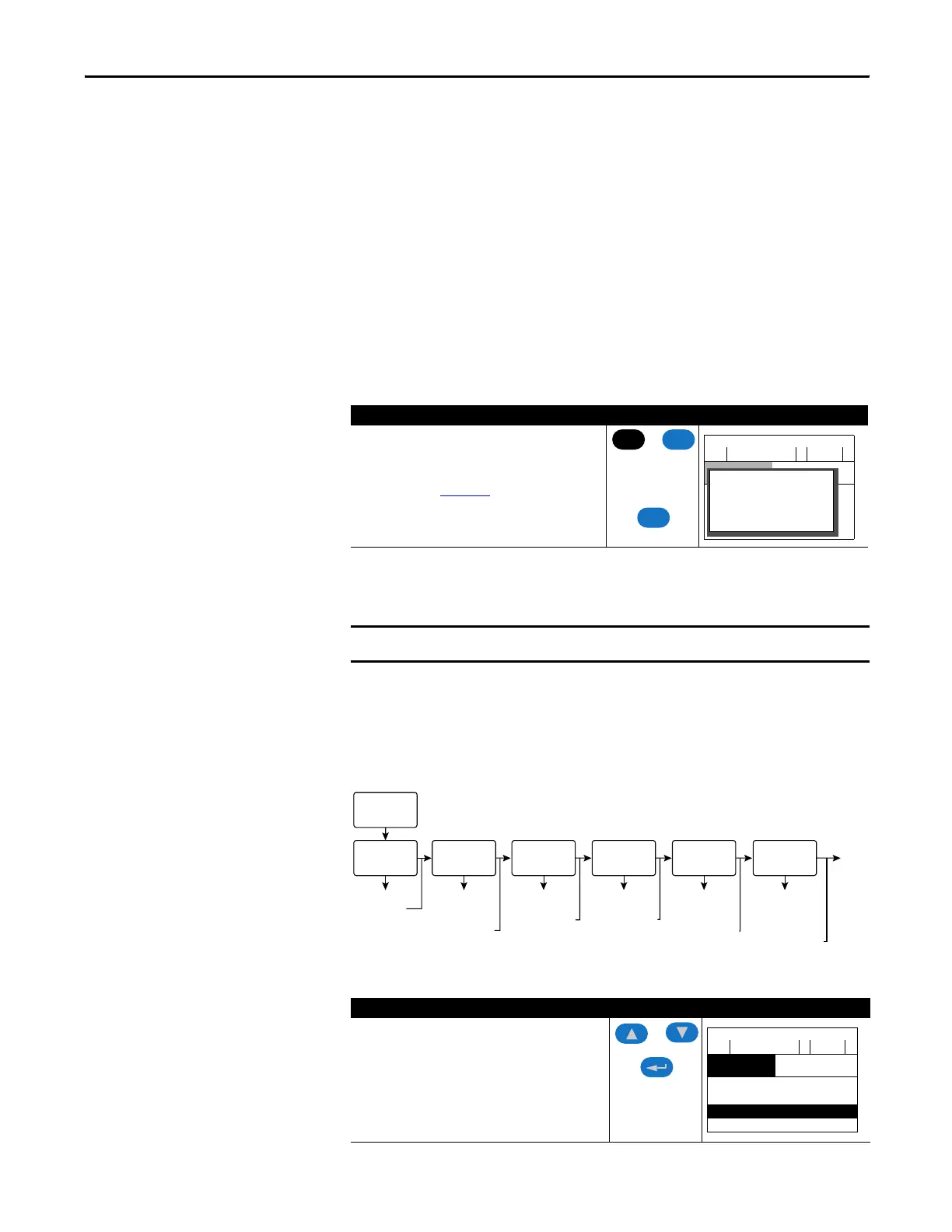

Figure 1 - PowerFlex 700H Start Up Menu
To perform an Assisted Start-Up, follow these instructions:
Step Key(s) Example LCD Displays
1. Press ALT and then Esc (S.M.A.R.T). The S.M.A.R.T. start
screen appears.
2. View and change parameter values as desired. For HIM
information, see Appendix
A.
3. Press Esc to exit the S.M.A.R.T. start.
IMPORTANT
This start-up routine requires an LCD HIM.
Step Key(s) Example LCD Displays
1. In the Main Menu, press the Up Arrow or Down Arrow to
scroll to “Start Up”.
2. Press Enter.
ALT
Esc
Esc
F-> Stopped Auto
0.0
Hz
Main Menu:
Diagnostics
Parameter
SMART List:
Digital In2 Sel
Stop Mode A
Minimum Speed
Sets Input
Voltage
Input Voltage
Select
Start-Up
Enter Motor NP
Data, Stop Mode,
Accel/Decel
Ramp Times
Motor Data and
Ramp Times
Optimize Torque
and
Verify Direction
Motor Tests
Set Min/Max
Speed and
Direction Control
Speed Limits
Configure
Source, Value
and Scale for
Speed References
Speed/Torque
Control
Start/Stop/I/O
Configure
Control Method
(2 Wire/3 Wire), I/O,
Digital Inputs/Outputs
and Analog Outputs
Done
Exit
Main Menu:
F-> Stopped Auto
0.0
Hz
Main Menu:
Memory Storage
Start Up
Preferences
