82 Rockwell Automation Publication 20C-PM001F-EN-P - March 2012
Appendix A HIM Overview

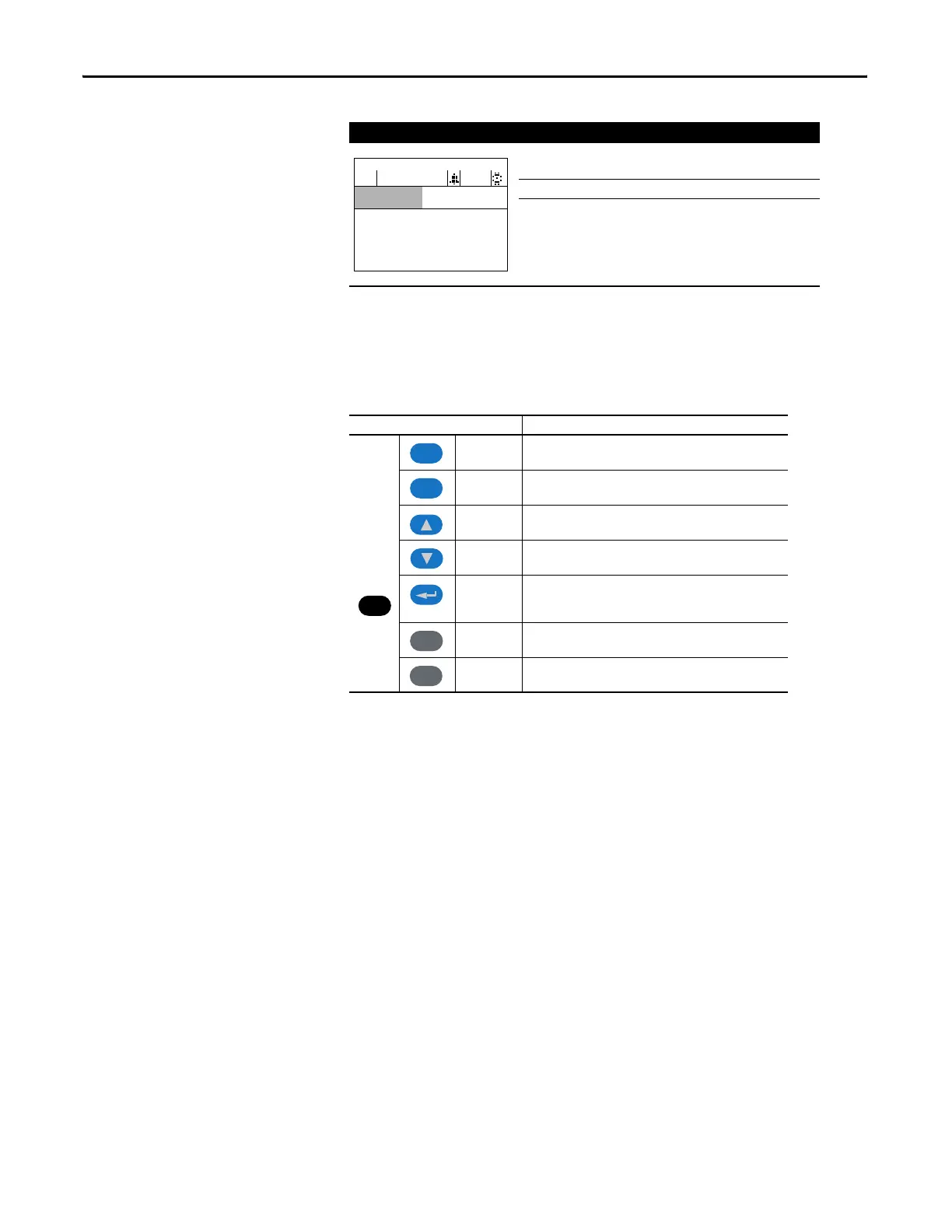

LCD Display Elements
ALT Functions
To use an ALT function, press the ALT key, release it, then press the
programming key associated with one of the following functions:
Table 28 - ALT Key Functions
Display Description
Direction⎥ Drive Status⎥ Alarm⎥ Auto/Man⎥ Information
Commanded or Output Frequency
Programming / Monitoring / Troubleshooting
F-> Power Loss Auto
0.0
Hz
Main Menu:
Diagnostics
Parameter
Device Select
ALT Key and then … Performs this function …
S.M.A.R.T. Displays the S.M.A.R.T. screen.
View Allows the selection of how parameters will be viewed or
detailed information about a parameter or component.
Lang Displays the language selection screen.
Auto / Man Switches between Auto and Manual Modes.
Remove Allows HIM removal without causing a fault if the HIM is not
the last controlling device and does not have Manual control
of the drive.
Exp Allows value to be entered as an exponent.
(Not available on PowerFlex 700.)
Param # Allows entry of a parameter number for viewing/editing.
ALT
Esc
Sel
..
+/–
To Next Page
