Asus AAEON UP Squared Pro 7000 User Manual

Chapter 2 – Hardware Information 10
Maker Board UP Squared Pro 7000
UPN-ADLN01

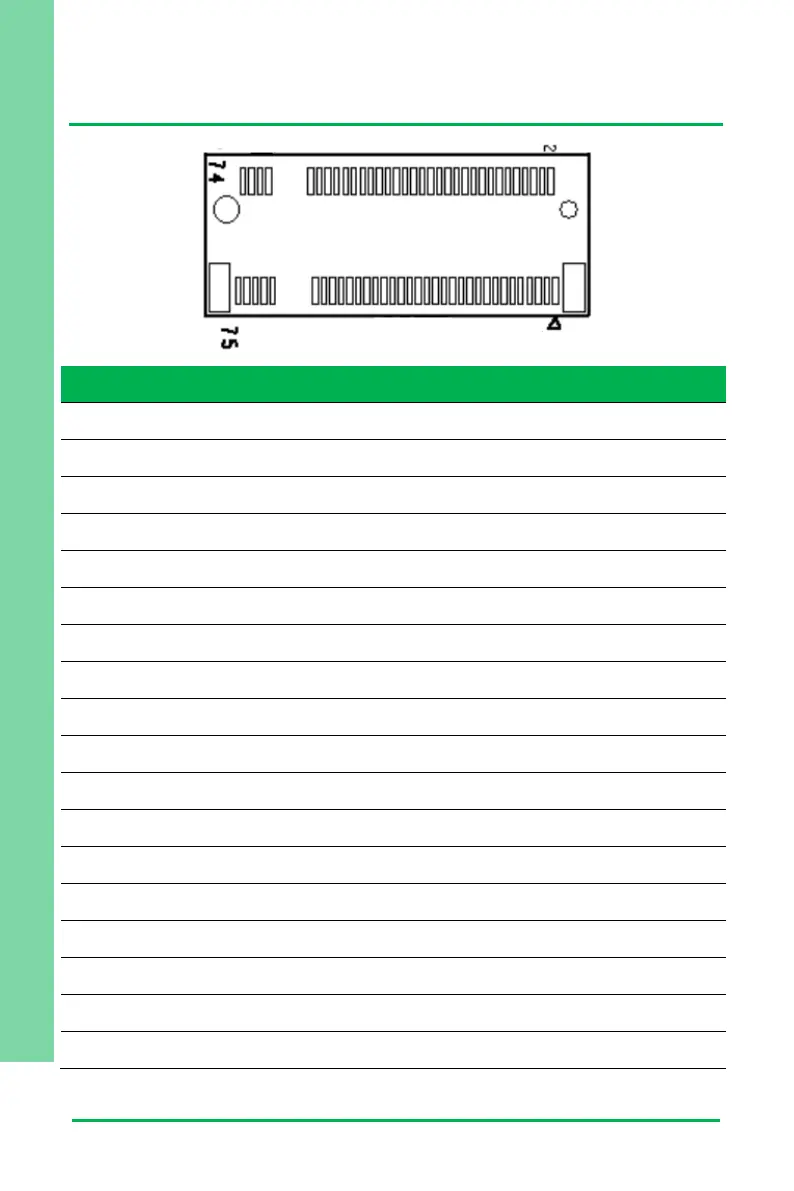

2.3.3 M.2 2280 M-Key Slot (CN2)
Pin
Signal
Pin
Signal
Pin
Signal
1
GND
2
+3.3V
3
NC
4
+3.3V
5
NC
6
FULL_CARD_POWER
7
NC
8
NC
9
GND
10
NC
11
NC
12
+3.3V
13
NC
14
+3.3V
15
GND
16
+3.3V
17
NC
18
+3.3V
19
NC
20
NC
21
GND
22
NC
23
NC
24
NC
25
NC
26
NC
27
GND
28
NC
29
PCIE_RXN10
30
NC
31
PCIE_RXP10
32
NC
33
GND
34
NC
35
PCIE_TXN10
36
NC
37
PCIE_TXP10
38
NC
39
GND
40
SMB_CLK_1V8
41
PCIE_RXN9
42
SMB_DATA_1V8
43
PCIE_RXP9
44
NC
45
GND
46
NC
47
PCIE_TXN9
48
NC
49
PCIE_TXP9
50
PLT_RST#
51
GND
52
PCIE_CLKREQ#
53
PCIE3_CLK_DN
54
PCIE_WAKE#
