Chapter 2 – Hardware Information 15
Maker Board UP Squared Pro 7000
UPN-ADLN01

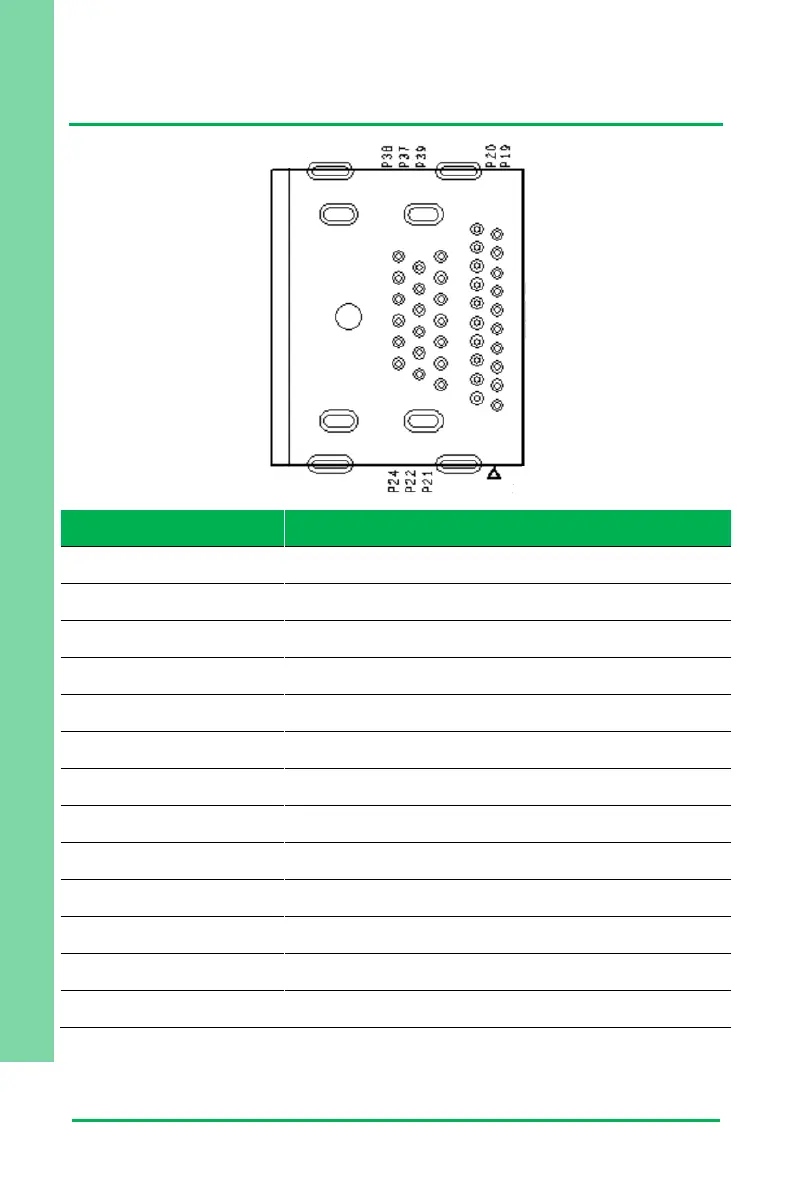

2.3.7 HDMI/DP Port (CN8)
Pin
Signal
Pin
Signal
Pin
Signal
P1
DP_TXP0
P2
GND
P3
DP_TXN0
P4
DP_TXP1
P5
GND
P6
DP_TXN1
P7
DP_TXP2
P8
GND
P9
DP_TXN2
P10
DP_CLK+
P11
GND
P12
DP_CLK-
P13
CONFIG1
P14
CONFIG2
P15
DP_AUX_P
P16
GND
P17
DP_AUX_N
P18
DP_HPD
P19
GND
P20
3.3V
P21
HDMI_TXP2
P22
GND
P23
HDMI_TXN2
P24
HDMI_TXP1
P25
GND
P26
HDMI_TXN1
P27
HDMI_TXP0
P28
GND
P29
HDMI_TXN0
P30
HDMI_CLK+
P31
GND
P32
HDMI_CLK-
P33
NC
P34
NC
P35
DDC_CLK
P36
DDC_DATA
P37
GND
P38
5V
P39
HDMI_HPD
