Chapter 2 – Hardware Information 18
Maker Board UP Squared Pro 7000
UPN-ADLN01

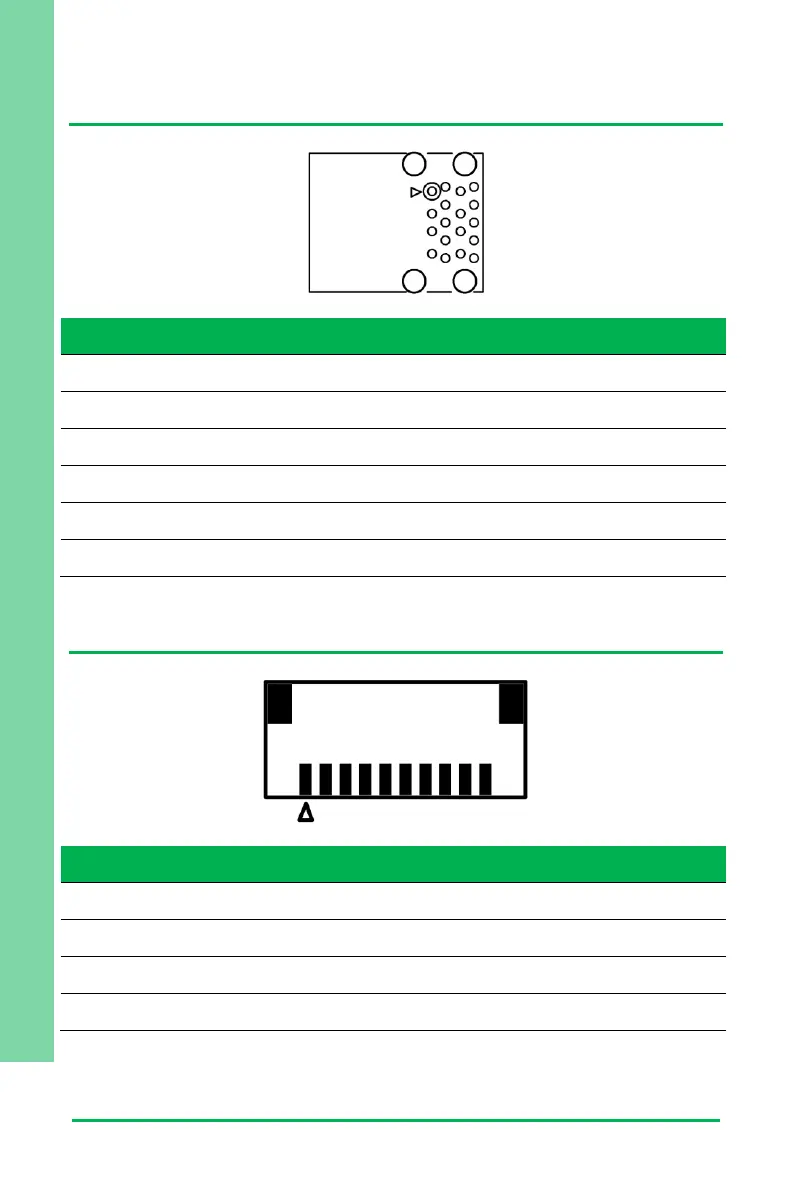

2.3.11 Dual USB Type-A Port (CN13)
Pin
Signal
Pin
Signal
Pin
Signal
1
+5V
2
USB2_D1-
3
USB2_D1+
4
GND
5
USB3_RX1-
6
USB3_RX1+
7
GND
8
USB3_TX1-
9
USB3_TX1+
10
+5V
11
USB2_D2-
12
USB2_D2+
13
GND
14
USB3_RX2-
15
USB3_RX2+
16
GND
17
USB3_TX2-
18
USB3_TX2+
2.3.12 USB 2.0/UART 1x10P Wafer (CN14)
Pin
Signal
Pin
Signal
Pin
Signal
1
+5V
2
USB2_D3-
3
USB2_D3+
4
GND
5
+5V
6
USB2_D4-
7
USB2_D4+
8
GND
9
UART_RX
10
UART_TX
