Asus AAEON UP Squared Pro 7000 User Manual

Chapter 2 – Hardware Information 20
Maker Board UP Squared Pro 7000
UPN-ADLN01

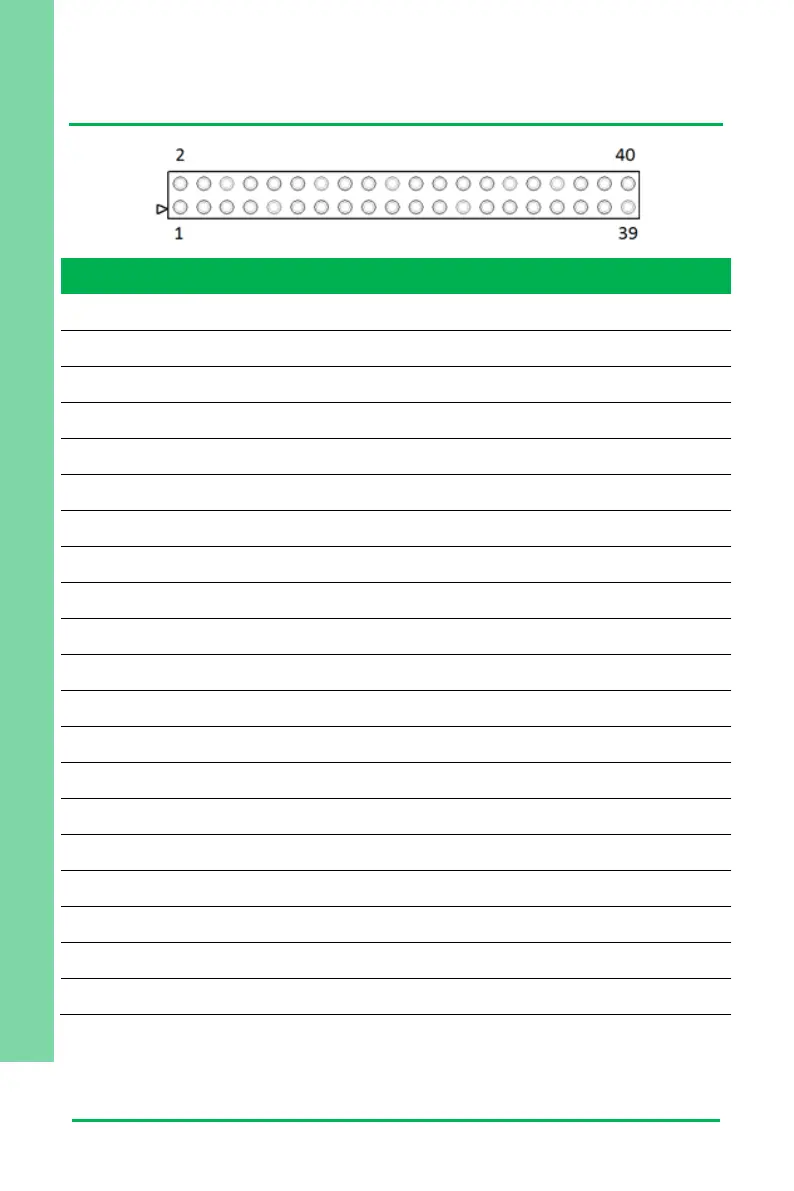

2.3.15 40-Pin HAT (CN17)
Pin
Signal
Pin
Signal
1
+3.3V
2
+5V
3
I2C1_DAT / GPIO1
4
+5V
5
I2C1_CLK / GPIO2
6
GND
7
ANALOG_DATA / GPIO3
8
UART_TX / GPIO16
9
GND
10
UART_RX / GPIO17
11
GPIO4/ UART_RTS
12
I2S_BCLK / GPIO18
13
GPIO5
14
GND
15
GPIO6
16
GPIO19
17
+3.3V
18
GPIO20
19
SPI_MOSI / GPIO7
20
GND
21
SPI_MISO / GPIO8
22
GPIO21
23
SPI_CLK / GPIO9
24
SPI_CS0 / GPIO22
25
GND
26
GPIO23
27
I2C0_DAT / GPIO10
28
I2C0_CLK / GPIO24
29
GPIO11
30
GND
31
GPIO12
32
PWM0 / GPIO25
33
PWM1 / GPIO13
34
GND
35
I2S_SYNC / GPIO14
36
GPIO26/ UART_CTS
37
GPIO15
38
I2S_SDI / GPIO27
39
GND
40
I2S_SDO / GPIO28
