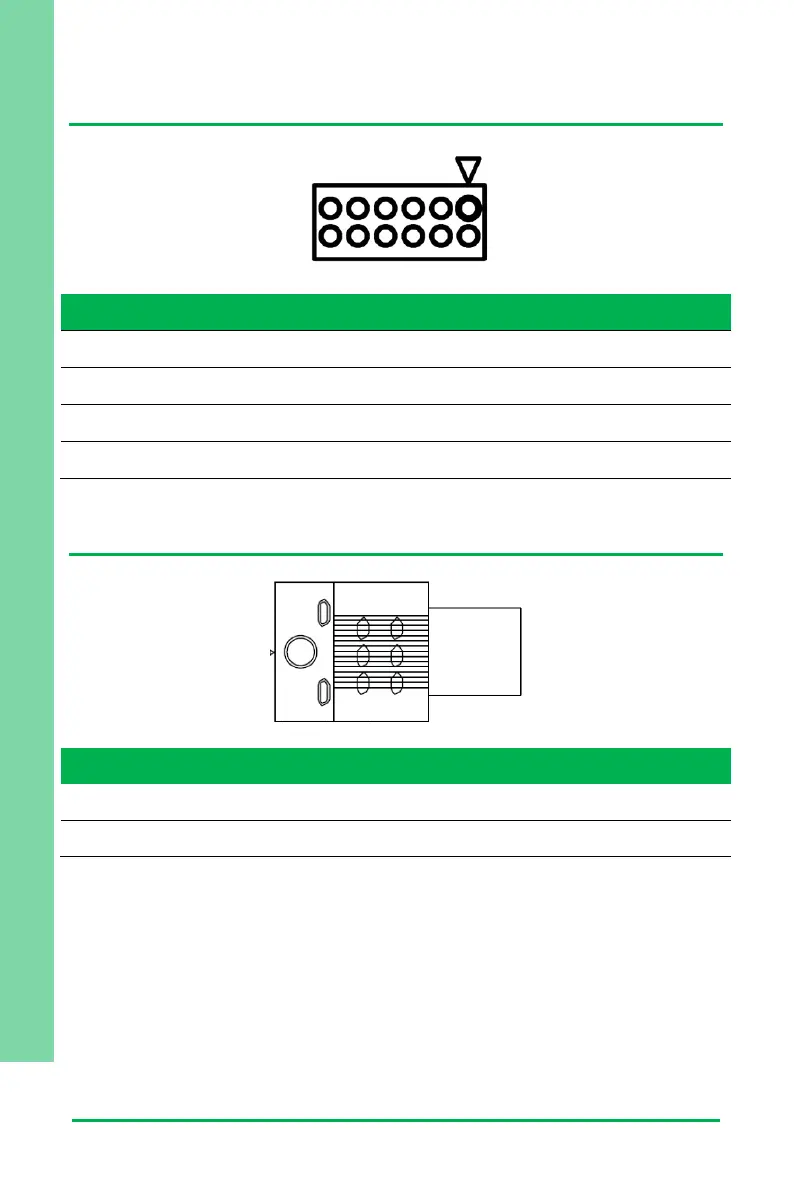

Chapter 2 – Hardware Information 21
Maker Board UP Squared Pro 7000
UPN-ADLN01
2.3.16 CPLD and BIOS Update (CN18)
Pin
Signal
Pin
Signal
Pin
Signal
1
JTAG_TCK
2
GND
3
JTAG_TDO
4
1.8V
5
JTAG_TMS
6
SPI_CS
7
SPI_CLK
8
SPI_MISO
9
JTAG_TDI
10
GND
11
SPI_MOSI
12
SPI_HOLD
2.3.17 DC Power Jack (CN20)
Pin
Signal
Pin
Signal
1
DC_IN
2
GND
3
GND
