Chapter 2 – Hardware Information 17
Maker Board UP Squared Pro 7000
UPN-ADLN01

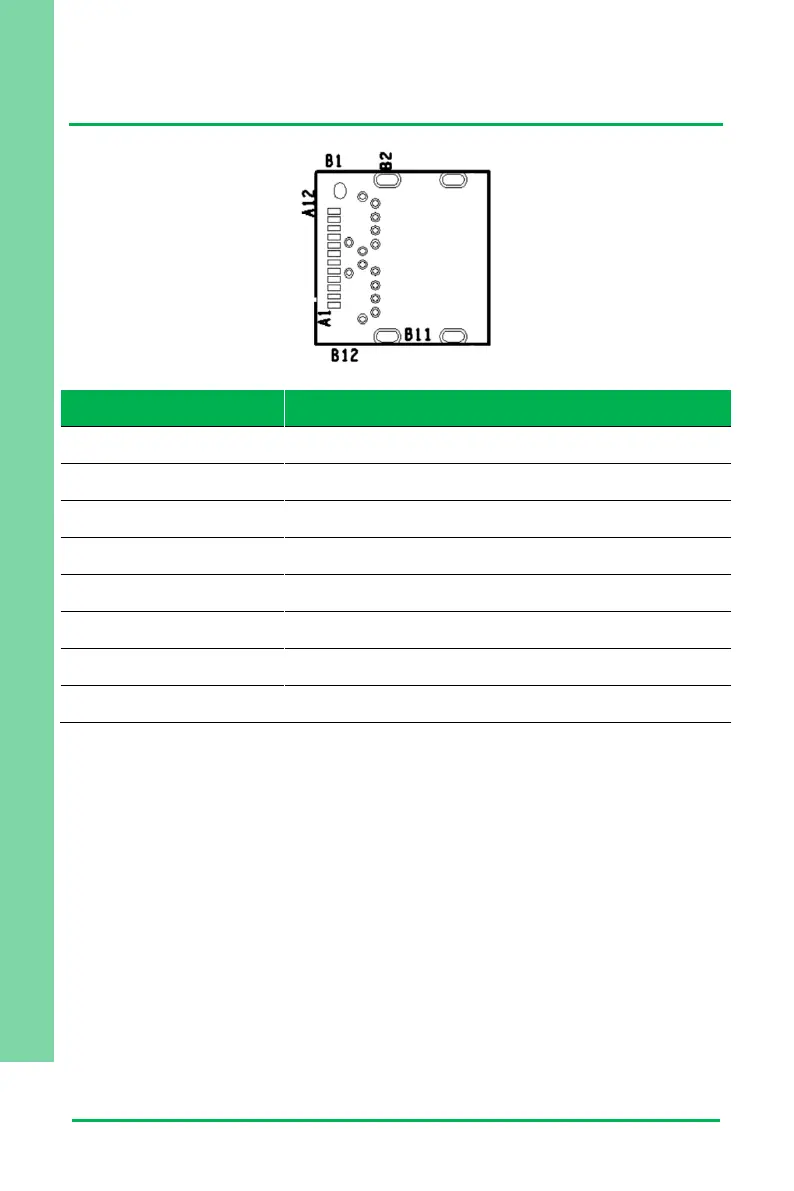

2.3.10 USB Type-C Port (CN12)
Pin
Signal
Pin
Signal
Pin
Signal
A1
GND
A2
SSTXP1
A3
SSTXN1
A4
+5V
A5
CC1
A6
DP1
A7
DN1
A8
SBU1
A9
+5V
A10
SSRXN2
A11
SSRXP2
A12
GND
B1
GND
B2
SSTXP2
B3
SSTXN2
B4
+5V
B5
CC2
B6
DP1
B7
DN1
B8
SBU2
B9
+5V
B10
SSRXN1
B11
SSRXP1
B12
GND
