Chapter 2 – Hardware Information 19
Maker Board UP Squared Pro 7000
UPN-ADLN01

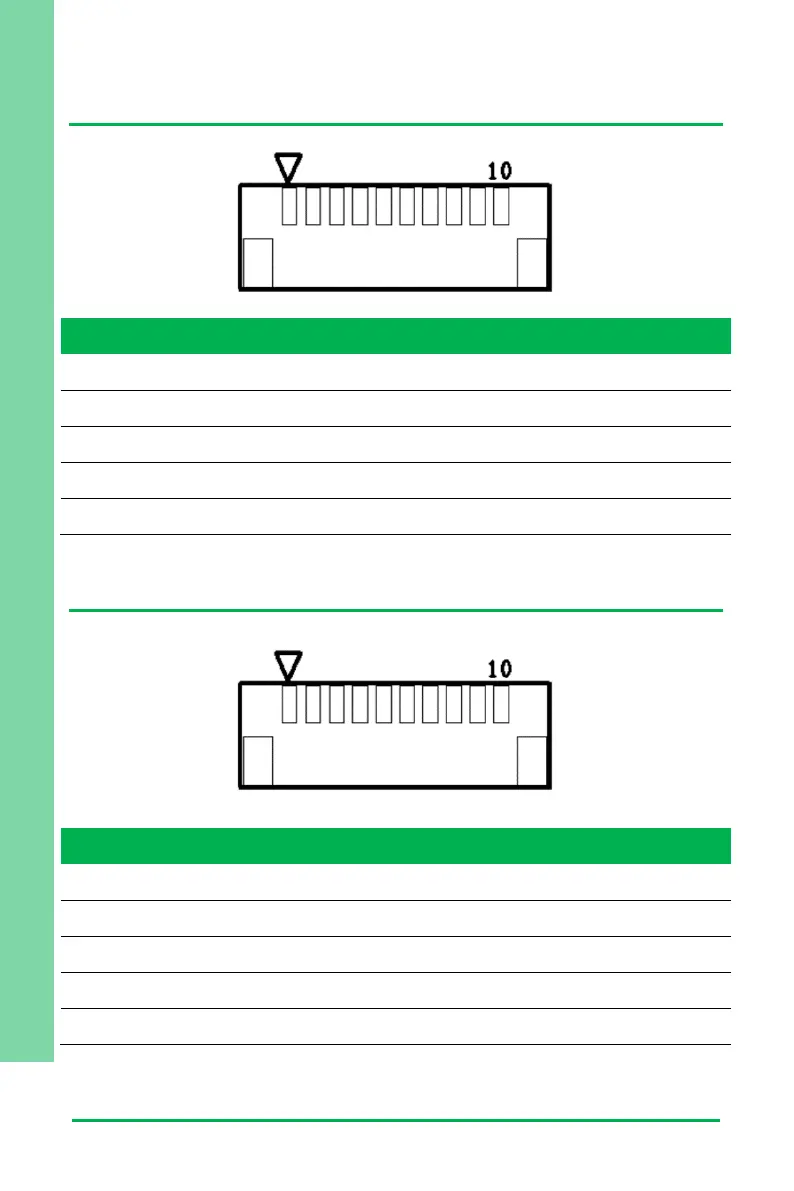

2.3.13 RS-232/422/485 1x10P Wafer (COM 1) (CN15)
Pin
Signal
Pin
Signal
1
DCD / RS422TX- / RS485-
2
RX / RS422TX+ / RS485+
3
TX / RS422RX+
4
DTR / RS422RX-
5
GND
6
DSR
7
RTS
8
CTS
9
RI
10
NC
2.3.14 RS-232/422/485 1x10P Wafer (COM 2) (CN16)
Pin
Signal
Pin
Signal
1
DCD / RS422TX- / RS485-
2
RX / RS422TX+ / RS485+
3
TX / RS422RX+
4
DTR / RS422RX-
5
GND
6
DSR
7
RTS
8
CTS
9
RI
10
NC
