Asus AAEON UP Squared Pro 7000 User Manual

Chapter 2 – Hardware Information 13
Maker Board UP Squared Pro 7000
UPN-ADLN01

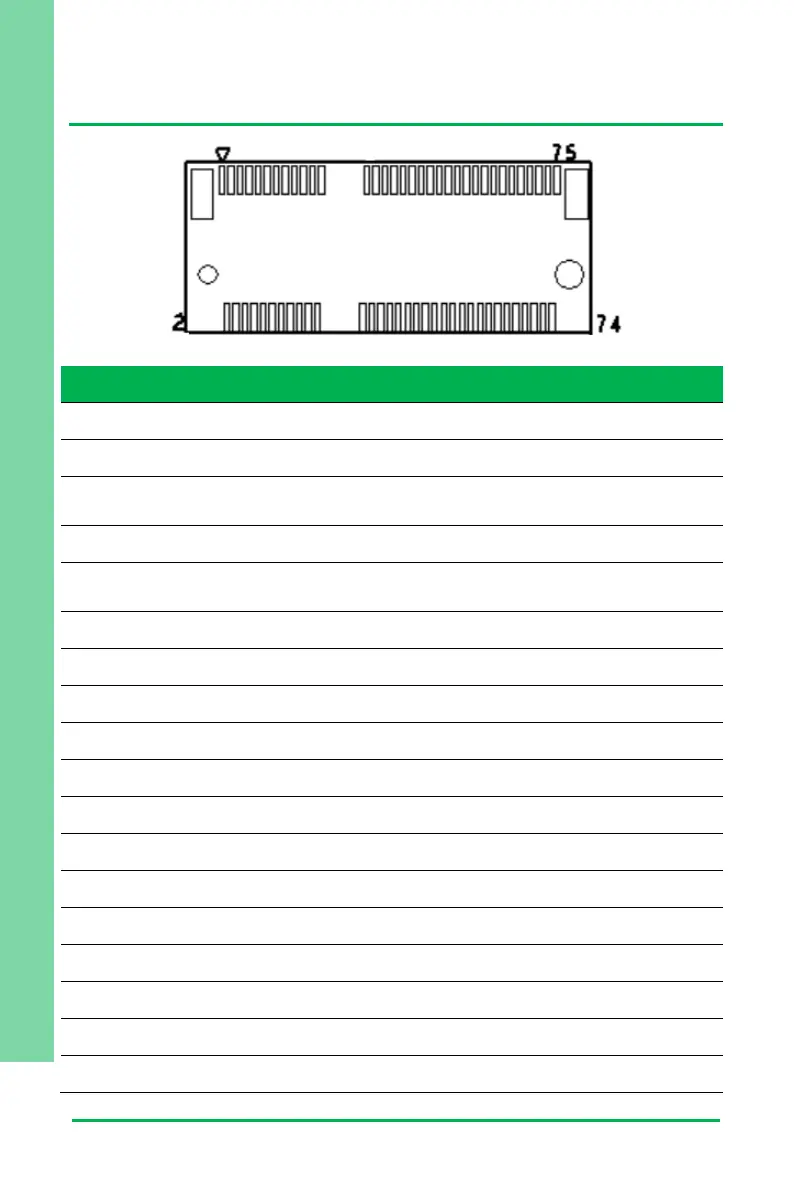

2.3.5 M.2 2230 E-Key Slot (CN4)
Pin
Signal
Pin
Signal
Pin
Signal
1
GND
2
+3.3V
3
USB2_D8+
4
+3.3V
5
USB2_D8-
6
NC
7
GND
8
NC
9
CNV_WR_LANE1_D
N
10
CNV_RF_RST#
11
CNV_WR_LANE1_DP
12
NC
13
GND
14
CNV_CLKREQ_R
15
CNV_WR_LANE0_D
N
16
NC
17
CNV_WR_LANE0_DP
18
GND
19
GND
20
NC
21
CNV_WR_CLK_DN
22
CNV_RGI_RSP_R
23
CNV_WR_CLK_DP
24
NC
25
NC
26
NC
27
NC
28
NC
29
NC
30
NC
31
NC
32
CNV_RGI_DT
33
GND
34
CNV_RGI_RSP
35
PCIE11_TXP
36
CNV_BRI_DT
37
PCIE11_TXN
38
NC
39
GND
40
NC
41
PCIE11_RXP
42
NC
43
PCIE11_RXN
44
NC
45
GND
46
NC
47
PCIE_CLK2P
48
NC
49
PCIE_CLK2N
50
SUS_CLK
51
GND
52
WIFI_RST#
53
PCIE_CLKREQ#
54
BT_EN
