Asus M2N-L User Manual

2-16 Chapter 2: Hardware information
2.6 Jumpers
1. Clear RTC RAM (CLRTC1)
This jumper allows you to clear the Real Time Clock (RTC) RAM in
CMOS. You can clear the CMOS memory of date, time, and system setup
parameters by erasing the CMOS RTC RAM data. The onboard button
cell battery powers the RAM data in CMOS, which include system setup
information such as system passwords.
To erase the RTC RAM:
1. Turn OFF the computer and unplug the power cord.
2. Remove the onboard battery.
3. Move the jumper cap from pins 1-2 (default) to pins 2-3. Keep the cap on
pins 2-3 for about 5~10 seconds, then move the cap back to pins 1-2.
4. Reinstall the battery.
5. Plug the power cord and turn ON the computer.
6. Hold down the <Del> key during the boot process and enter BIOS setup
to re-enter data.
Except when clearing the RTC RAM, never remove the cap on CLRTC1 jumper
default position. Removing the cap will cause system boot failure!
• Make sure to re-enter your previous BIOS settings after you clear the
CMOS.
M2N-L
®

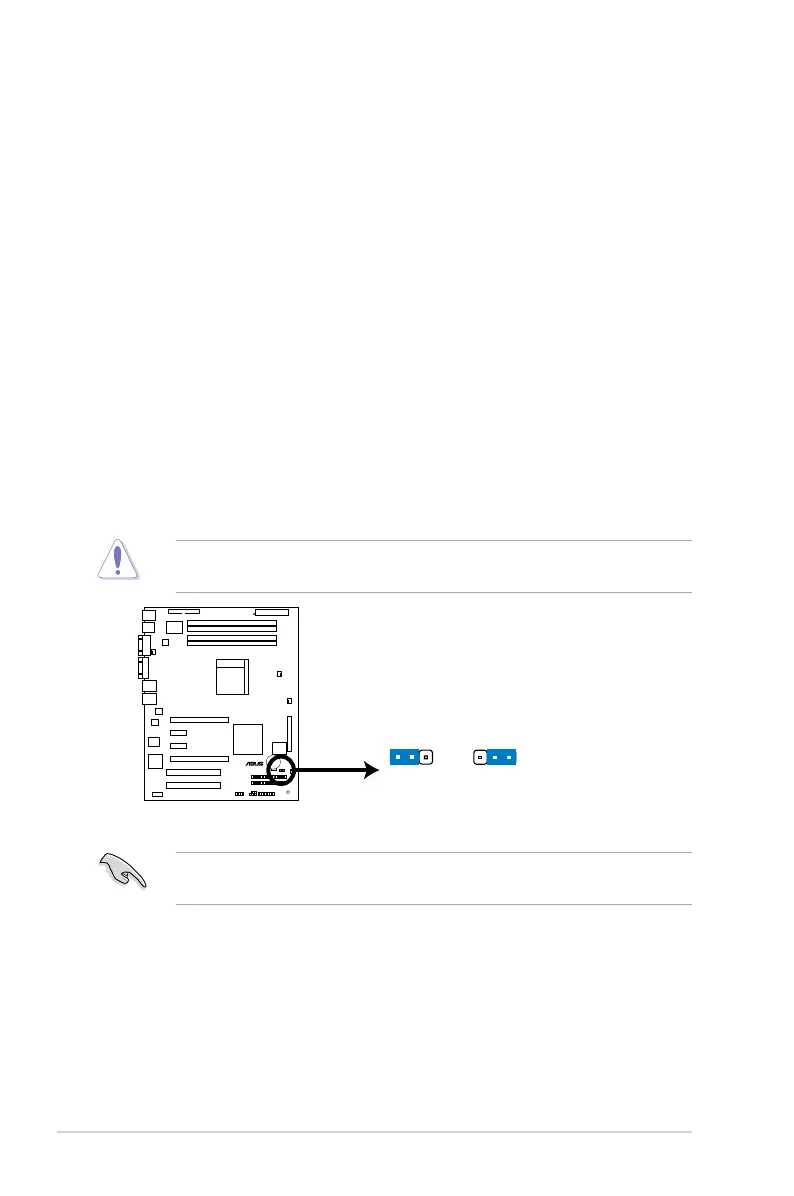

M2N-L Clear RTC RAM
CLRTC1
Normal
(Default)
Clear RTC
1 2
2 3

Asus M2N-L Specifications

General

ECC	Yes
Number of memory slots	4
Maximum internal memory	8 GB
Processor socket	Socket AM2
Processor manufacturer	AMD
USB 2.0 connectors	1
Number of SATA connectors	6
Manageability features	ASWM 2.0
Controller interface type	Serial ATA I/II
Controller 2nd interface type	UltraATA-100/133
USB 2.0 ports quantity	2
Motherboard form factor	ATX
Maximum graphics card memory	32 MB
Networking features	Dual Gigabit Ethernet
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	10 - 35 °C
RAID levels	0, 1, 0+1, JBOD
