Asus M2N-L User Manual

2-18 Chapter 2: Hardware information
2.7 Connectors

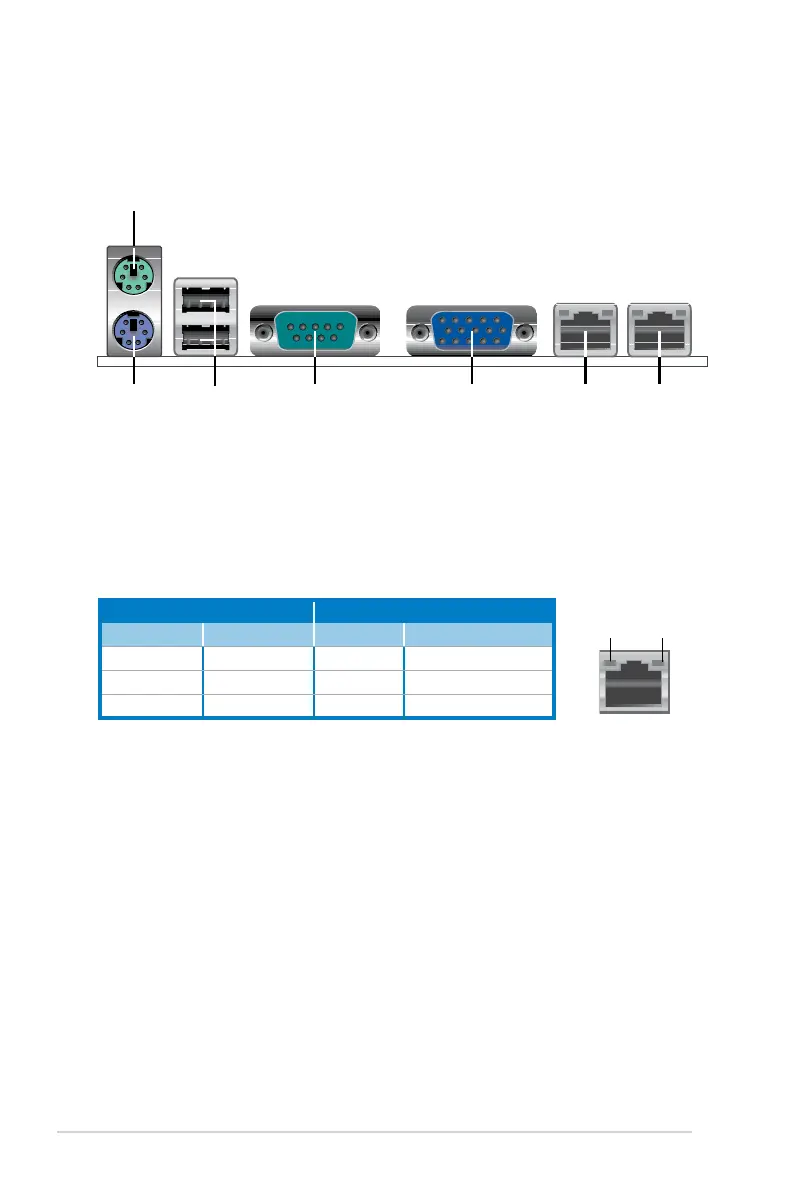

2.7.1 Rear panel connectors
1. PS/2 mouse port (green). This port is for a PS/2 mouse.
2/3. LAN 2/1 (RJ-45) port.
Both ports are supported by the Marvell 8056 LAN
controller and allow Gigabit connection to a Local Area Network (LAN)
through a network hub. Refer to the table below for the LAN port LED
indications.
Activity/Link LED Speed LED
Status Description Status Description
OFF No link OFF 10Mbps connection
GREEN Linked ORANGE 100Mbps connection
BLINKING Data activity GREEN 1Gbps connection
LAN port LED indications
SPEED
LED
ACT/LINK
LED
LAN port
1
7 45 3 2
6
4. VGA port. This port is for a VGA monitor or other VGA-compatible devices.
5. Serial (COM1) port.
This 9-pin communication port is for pointing devices or
other serial devices.
6. USB 2.0/1.1 ports 1 and 2.
These 4-pin Universal Serial Bus (USB) ports are
available for connecting USB 2.0/1.1 devices.
7. PS/2 keyboard port (purple)
. This port is for a PS/2 keyboard.

Asus M2N-L Specifications

General

ECC	Yes
Number of memory slots	4
Maximum internal memory	8 GB
Processor socket	Socket AM2
Processor manufacturer	AMD
USB 2.0 connectors	1
Number of SATA connectors	6
Manageability features	ASWM 2.0
Controller interface type	Serial ATA I/II
Controller 2nd interface type	UltraATA-100/133
USB 2.0 ports quantity	2
Motherboard form factor	ATX
Maximum graphics card memory	32 MB
Networking features	Dual Gigabit Ethernet
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	10 - 35 °C
RAID levels	0, 1, 0+1, JBOD
