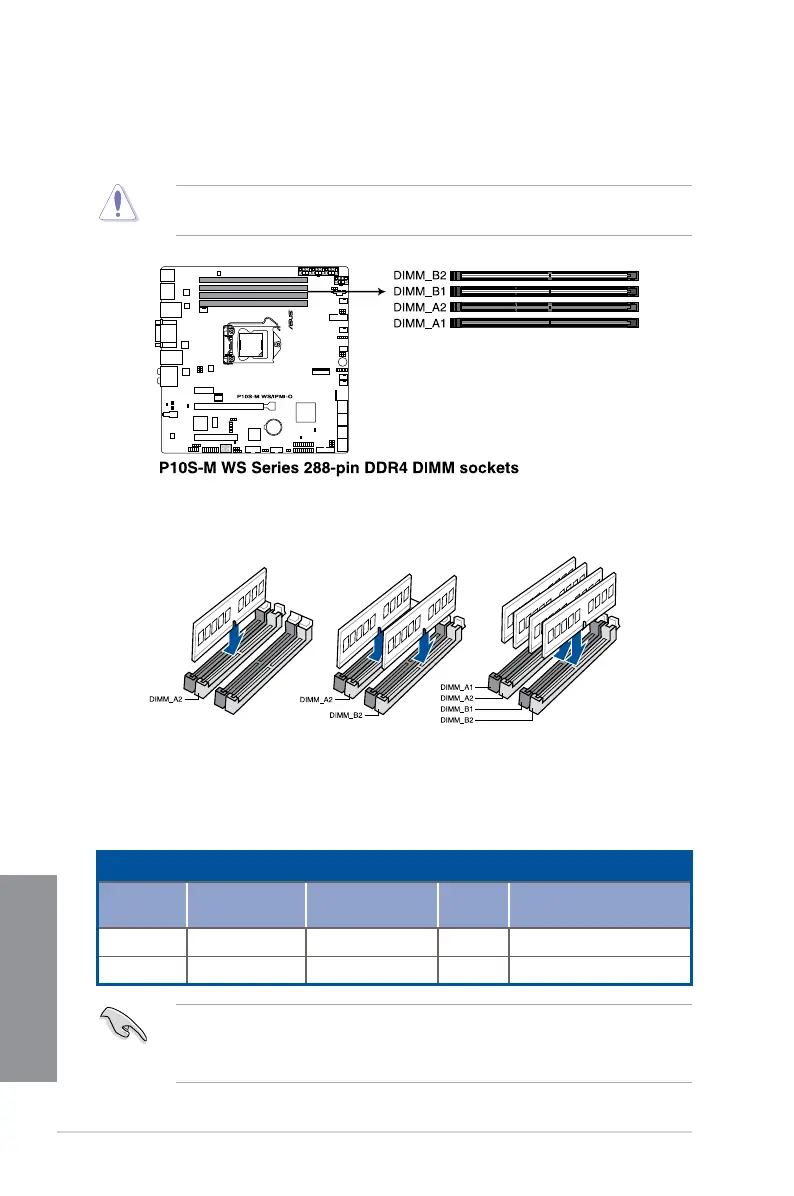

Recommended memory configurations
1.2.4 System memory
The motherboard comes with four (4) DDR 4 (Double Data Rate 4) Dual Inline Memory
Modules (DIMM) slots.
A DDR4 module is notched differently from a DDR, DDR2, or DDR3 module. DO NOT
install a DDR, DDR2, or DDR3 memory module to the DDR4 slot.
Memory configurations
You may install unbuffered DDR4 DIMMs into the DIMM sockets using the memory
congurations in this section.
UDIMM
DIMM Slot
Per Channel
DIMM Populated
per Channel
DIMM Type Speed Rank per DIMM
2 1 Unbuffered DDR4 2133
Single Rank, Dual Rank
2 2 Unbuffered DDR4 2133
Single Rank, Dual Rank
• Always install DIMMs with the same CAS latency. For optimum compatibility, it is
recommended that you obtain memory modules from the same vendor.
• Start installing the DIMMs in slots A2 and B2 (Gray).
To Next Page
