ASUS X99-WS/IPMI

3-33

Chapter 3

3.6.2 PCH Configuration

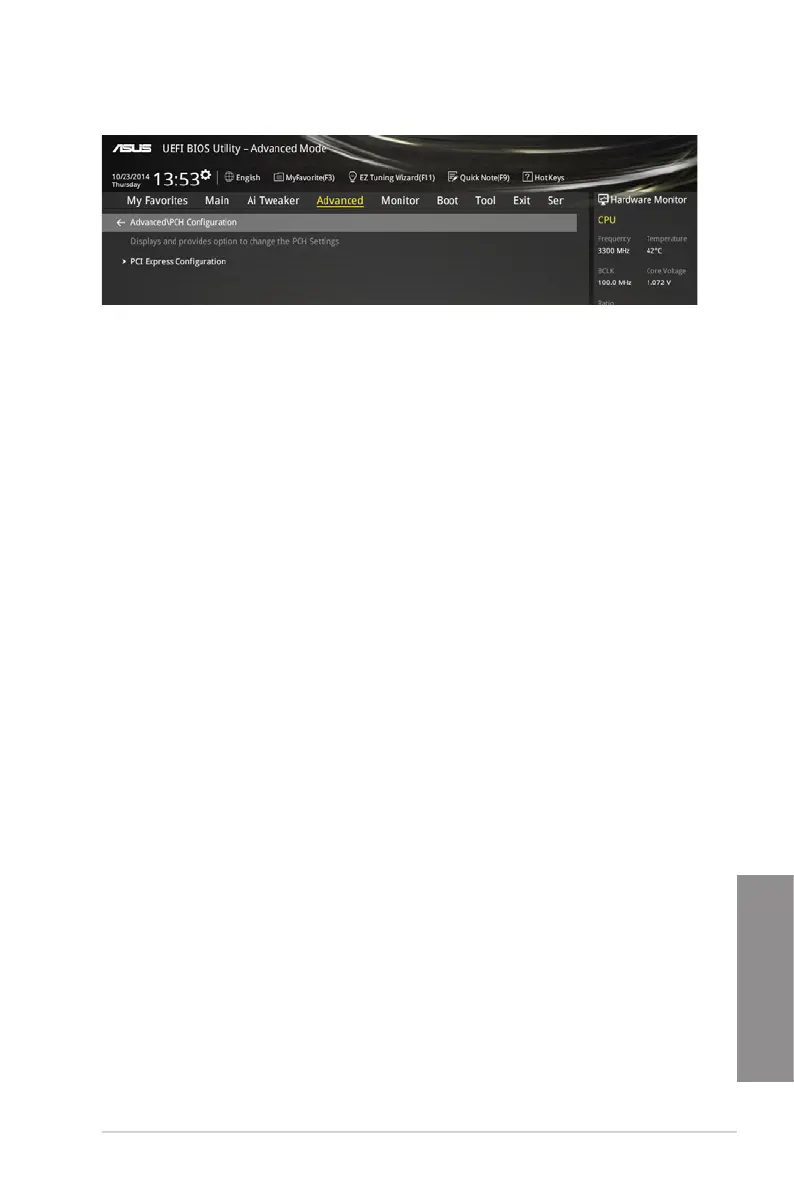

PCI Express Configuration

This item allows you to congure the PCI Express slots.

PCIe Speed [Auto]

This item allows your system to automatically select the PCI Express port speed. When

set to [Gen1], the PCI-E port runs at PCI-E 1.0 speed. When set to [Gen2], the PCI-E

port runs at PCI-E 2.0 speed.

Conguration options: [Auto] [Gen1] [Gen2]
