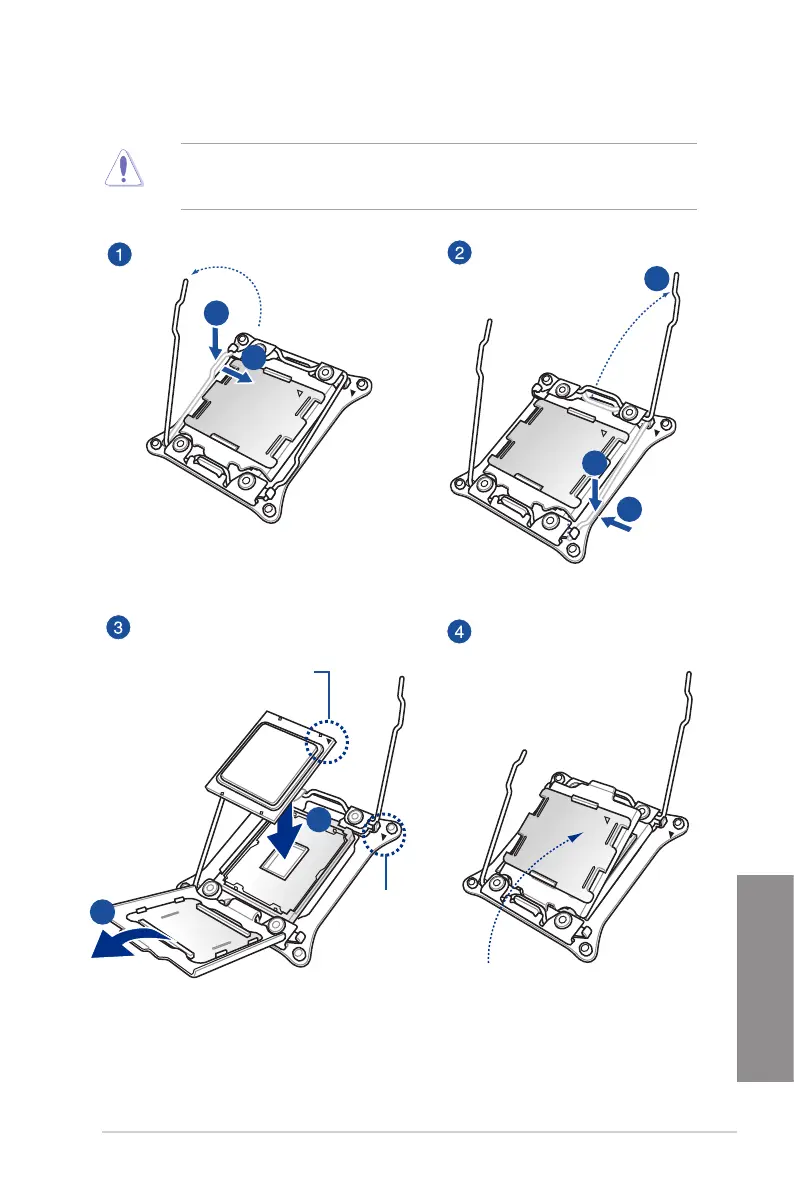

2.1.2 CPU installation

Please note the order in opening/ closing the double latch. Follow the instructions printed

on the metal sealing hatch or the illustrations shown below in this manual. The plastic cap

will pop up automatically once the CPU is in place and the hatch properly sealed down.

Triangle mark

Default Chapter3
- Table of Contents3
- Electrical Safety6
Safety Information6
About this Guide7
- Conventions Used in this Guide8
X99-WS/IPMI Specifications Summary9
- Special Features11
Package Contents13
Installation Tools and Components14
Chapter 1: Product Introduction15
Special Features15
- Product Highlights15
- Other Special Features16
Motherboard Overview17
- Before You Proceed17
- Motherboard Layout18
- Layout Contents19
- Central Processing Unit (CPU)20
- System Memory21
- Memory Configurations22
- Expansion Slots23
- Onboard Buttons and Switches26
- Jumpers32
- Onboard Leds36
- Internal Connectors44
- System Panel Connector52
Chapter 2: Basic Installation57
Building Your PC System57
- Motherboard Installation57
- CPU Installation59
- CPU Heatsink and Fan Assembly Installation60
- DIMM Installation62
- ATX Power Connection63
- SATA Device Connection64
- Front I/O Connector65
- Expansion Card Installation66
BIOS Update Utility67
Q-Code Logger Utility68
- Using the Q-Code Logger68
Motherboard Rear and Audio Connections69
- Rear I/O Connection69
- Audio I/O Connections71
Starting up for the First Time73
Turning off the Computer74
Chapter 3: BIOS Setup75
Knowing BIOS75
BIOS Setup Program76
- Advanced Mode77
- EZ Tuning Wizard80
- Creating Raid81
My Favorites82
- Adding Items to My Favorites83
Main Menu84
- Administrator Password85
Ai Tweaker Menu86
- Dram Timing Control89
Advanced Menu103
- CPU Configuration104
- PCH Configuration107
- PCH Storage Configuration108
- System Agent Configuration110
- USB Configuration112
- Mass Storage Devices113
- Platform Misc Configuration114
- Onboard Devices Configuration115
- Serial Port Configuration116
- APM Configuration117
- Network Stack Configuration118
Monitor Menu119
Boot Menu121
- Secure Boot124
- Boot Option Priorities126
- Boot Override126
Tool Menu127
- ASUS EZ Flash 2 Utility127
- ASUS O.C. Profile128
- ASUS SPD Information129
Exit Menu130
Server Management Menu131
- System Event Log132
- BMC Network Configuration133
- View System Event Log134
Updating BIOS135
- EZ Update135
- ASUS EZ Flash 2135
- ASUS Crashfree BIOS 3137
Chapter 4: Software Support141
Installing an Operating System141
Support DVD Information141
- Running the Support DVD141
- Obtaining the Software Manuals143
Software Information144
ASUS Utilities144
- Ai Charger146
- USB Charger147
- ASUS Dr. Power Utility148
Audio Configurations150
Chapter 5: RAID Support151
RAID Configurations151
- RAID Definitions151
- Installing Serial ATA Hard Disks152
- Setting the RAID Item in BIOS152
- Intel ® Rapid Storage Technology Option ROM Utility153
Creating a RAID Driver Disk157
- Creating a RAID Driver Disk Without Entering the os157
- Creating a RAID Driver Disk in Windows158
- Installing the RAID Driver During Windows ® os Installation158
Chapter 6: Multi GPU Support159
AMD ® Crossfirex™ Technology159
- Requirements159
- Before You Begin159
- Installing Two Crossfirex™ Graphics Cards160
- Installing Three Crossfirex™ Graphics Cards161
- Installing the Device Drivers162
- Enabling the AMD ® Crossfirex™ Technology162
NVIDIA ® SLI™ Technology164
- Requirements164
- Installing Two SLI-Ready Graphics Cards164
- Installing Three SLI-Ready Graphics Cards165
- Installing the Device Drivers166
- Enabling the NVIDIA ® SLI™ Technology166
Appendices169
Notices169
- Canadian Department of Communications Statement170
- Rf Equipment Notices171
ASUS Contact Information173
