Asycube 380 & 530
Operating Manual
000.101.151
Version: B
10/50

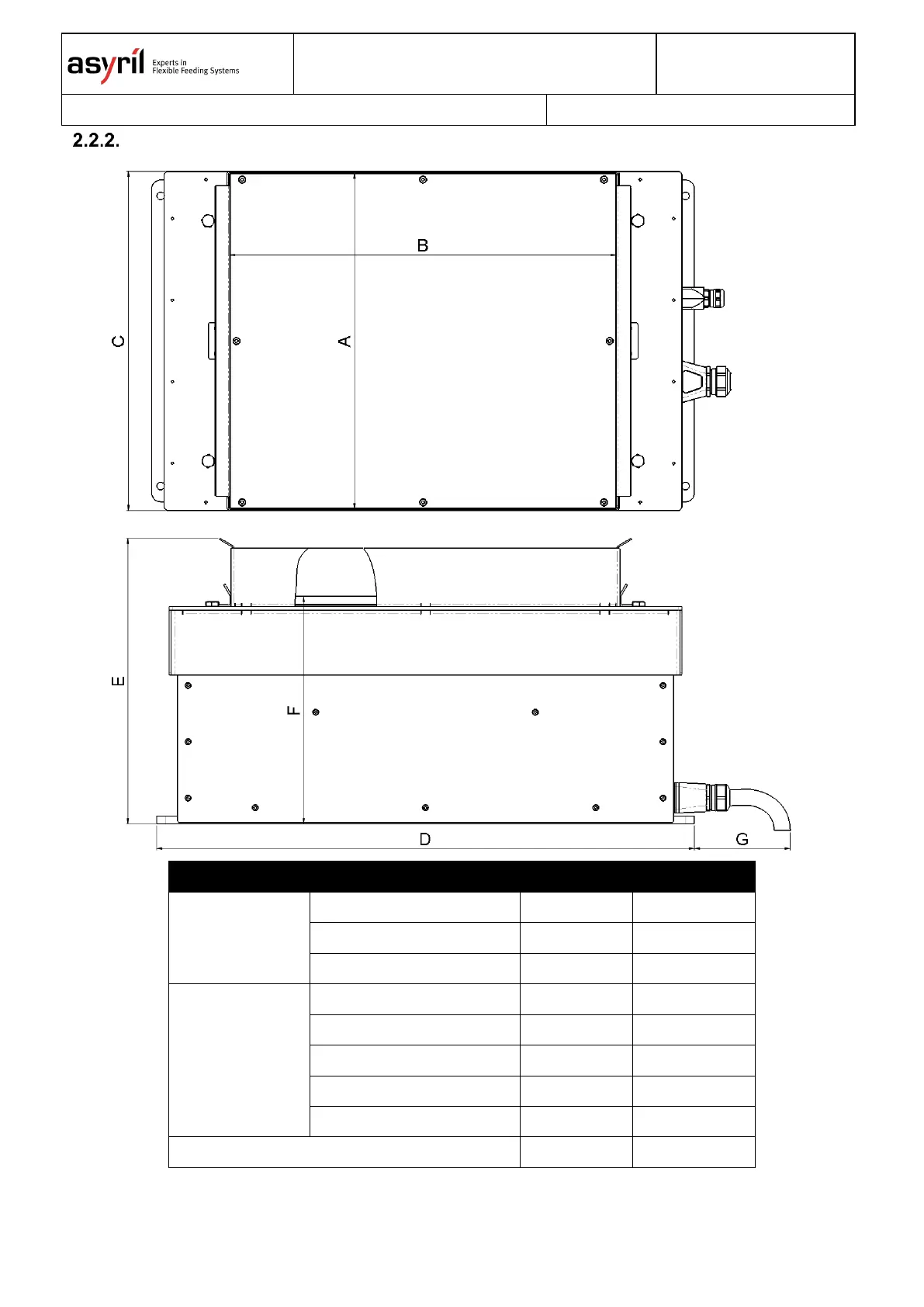

Overall dimensions
Characteristic
Asycube 380
Asycube 530
Footprint
C
257 mm
374 mm
D
498.5 mm
600 mm
G
147 mm
100 mm
Size of vibration
platform
A
254 mm
371 mm
B
325 mm
427 mm
E ± low frame travel
308 ± 6 mm
320 ± 8 mm
E ± high frame travel
333 ± 6 mm
345 ± 8 mm
F (rest position)
245 mm
255 mm
Weight with platform and backlight
20 kg
31 kg
