Asyril Asycube 240 User Manual

Asycube 380 & 530
Operating Manual
000.101.151
Version: B
36/50
Checking and cleaning the platform
Material needed:
- Lint-free cloth
- Isopropanol alcohol
IMPORTANT:
Replace the surface if it is damaged to
the extent that it obstructs the vision
or behaviour of the parts.
Figure 4-3: Platform

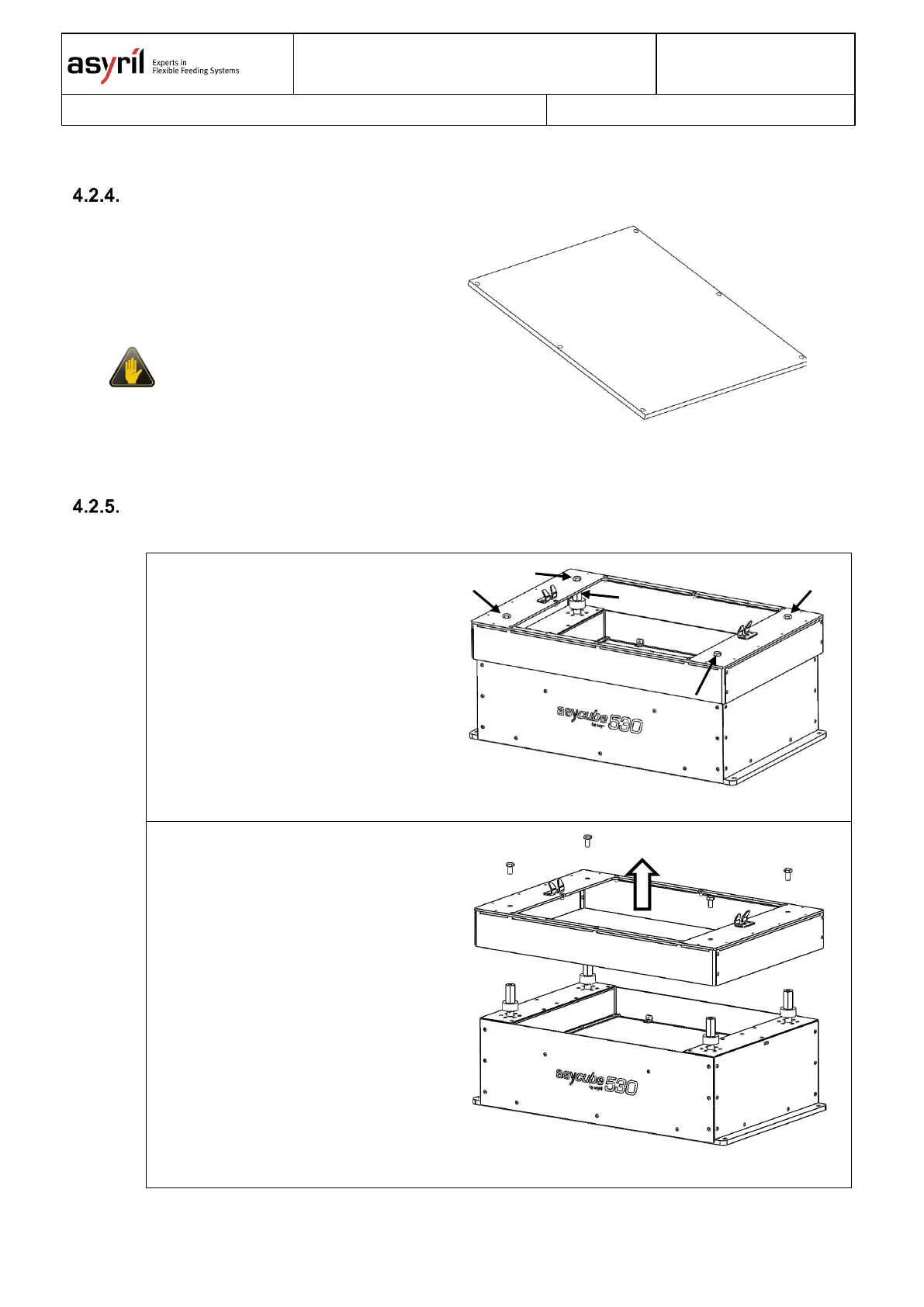

Replacing ball joints Asycube 380 and 530
Step 1
Remove the platform and
completely unscrew the 4
nuts (A) whilst holding the
hexagonal extension (B)
Use size 13 and 17 open-end
wrenches
Step 2
Remove the upper assembly
(B)
(B)
(A)
(B)
