Asycube 380 & 530
Operating Manual
000.101.151
Version: B
15/50

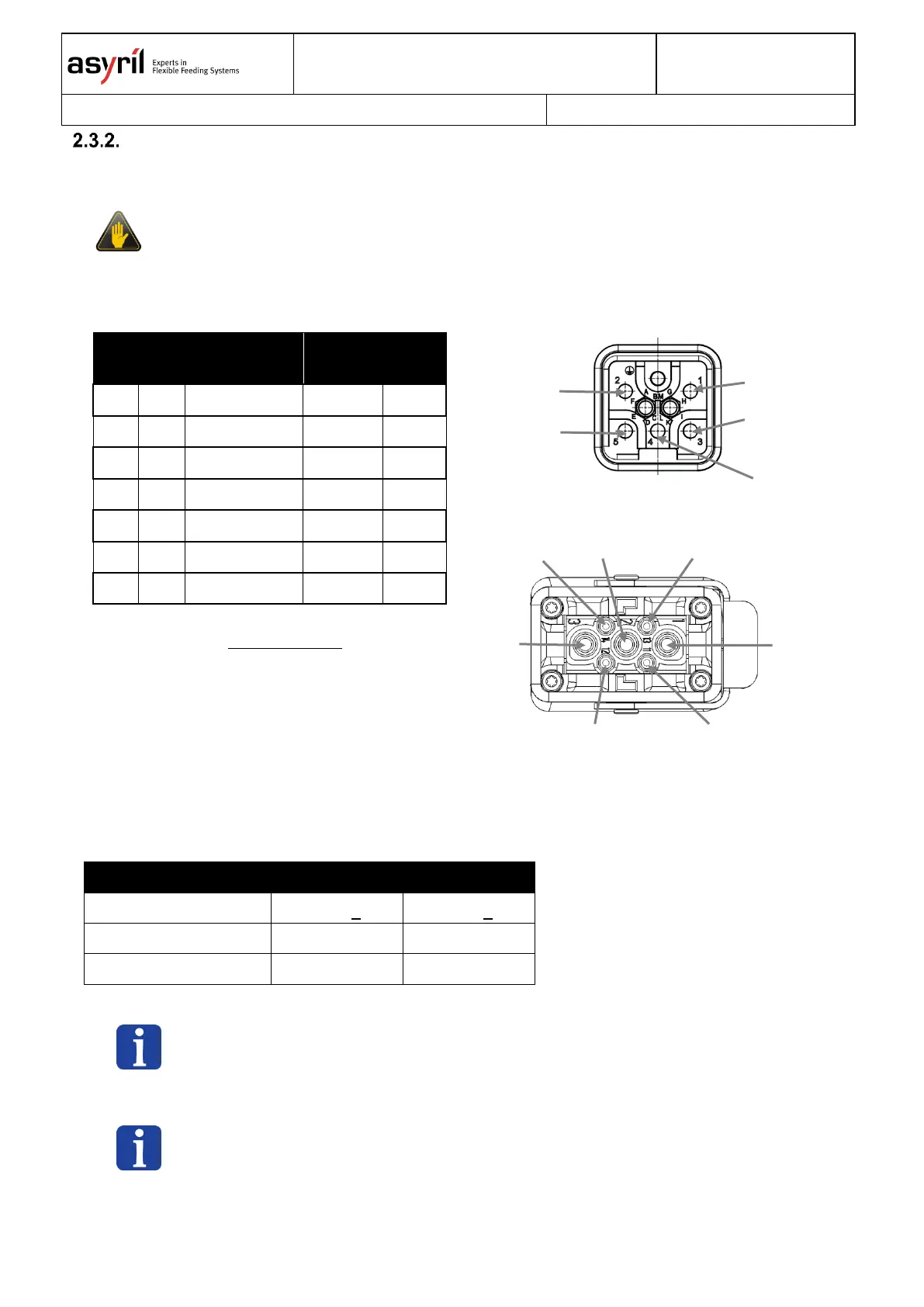

Power connection
IMPORTANT!
- Before supplying power to the Asycube, check that your distribution voltage is the same as the
nominal voltage.
- Use PELV (protected extra-low voltage) nominal voltage.
- Always connect the EARTH pin to the supply via the power cable.
Pin
380
Pin
530
Signal
description
Cable (option)
530 380
(1)
(1)
24 V S-power
L+
1
(2)
(2)
0 V GND-S
L-
2
(3)
(11)
24 V Power
Black
3
(4)
(12)
0 V GND
White
4
(5)
(3)
Ground
PE
PE
(13)
Not cabled
(14)
Not cabled
Connector type (on Asycube side):
• Asycube 380: Harting 09 12 005 3004
• Asycube 530: Harting 09 14 007 3001
Figure 2-7: Asycube 380 power connection
Figure 2-8: Asycube 530 power connection
NOTE:
Use a 20 A supply with a current reserve of 150% for 3 seconds
The following two power supplies have been approved by Asyril:
- PULS QS20.244
- SIEMENS 6EP1336-3BA10
NOTE:
S-power is the safety power for the backlight and actuators. Switching off this safety power
ensures that the backlight stays OFF (e.g. to prevent against the risk of exposure to IR).
Characteristic
Asycube 380
Asycube 530
Voltage
+24 V DC + 5%
+24 V DC + 5%
Consumption
4 A
6 A
S-power consumption
16 A
14 A
(3)
(2)
(1)
(14)
(13)
(11)
(12)
(3)
(2)
(1)
(4)
(5)
