Asyril Asycube 240 User Manual

Asycube 380 & 530
Operating Manual
000.101.151
Version: B
12/50

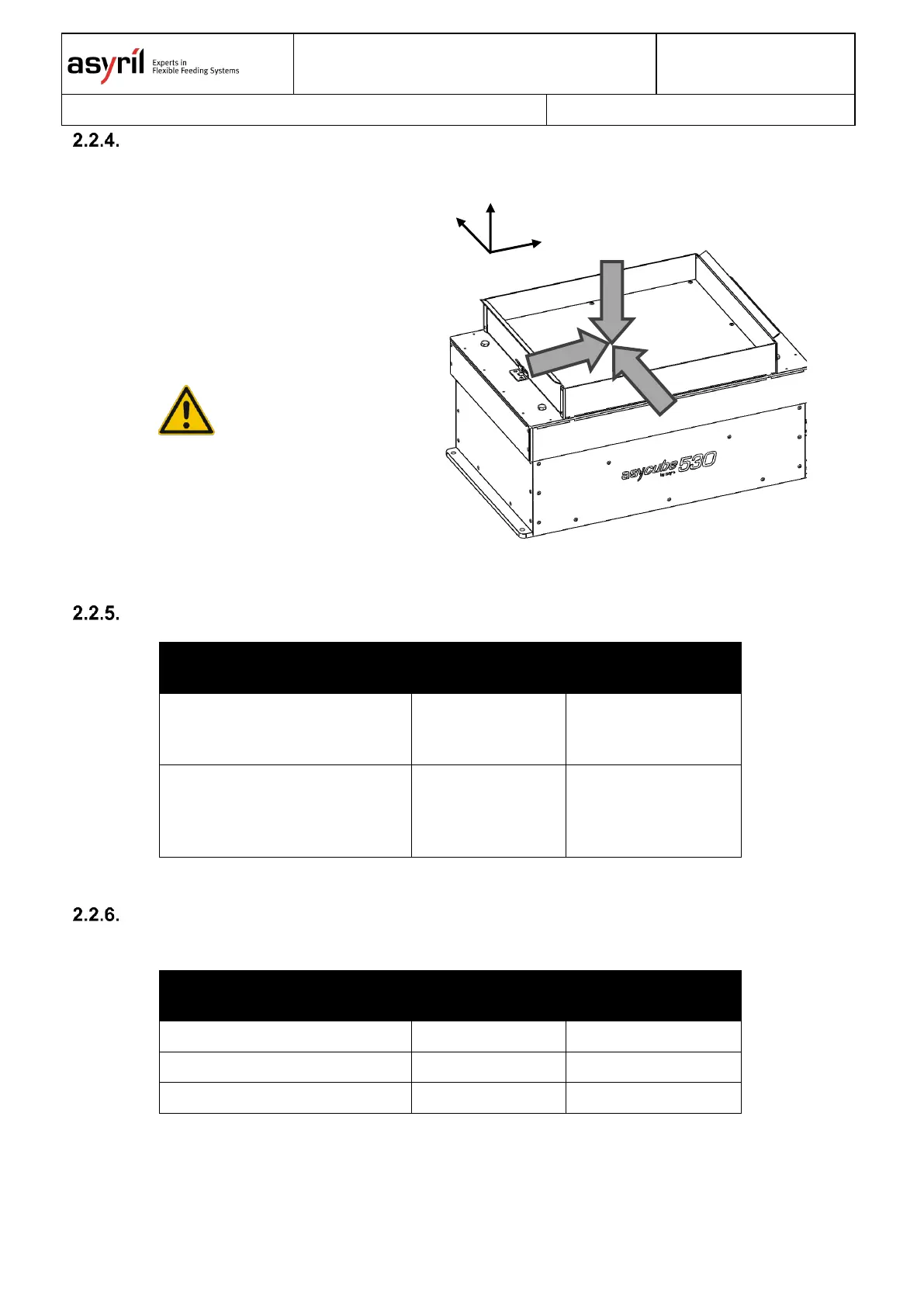

Maximum permissible external force on the platform (Asycube 380 and 530)
The maximum permissible external
force on a point of the platform (for
example, with the gripper) is:
Fx = 10 N
Fy = 10 N
Fz = 30 N
Note that the shock/impact of the
gripper may damage the surface of the
platform.
Permissible platform weight
Asycube
380
Asycube
530
Maximum weight of the frame +
platform assembly (without
components)
4 kg
5 kg
Maximum weight of components
(in addition to the maximum
weight of the frame + platform
assembly)
1.5 kg
2 kg
Maximum plate displacement
Asycube
380
Asycube
530
Maximum displacement x
±8 mm
±8 mm
Maximum displacement y
±10 mm
±10 mm
Maximum displacement z
±6 mm
±8 mm
Fz
x
y
z
Fx
Fy
