Please refer to section “4.2.2 Removing/replacing the platform” on page 33 for information
about this.
Visual signals
The LEDs provide important
information about the status of the
Asycube:
LED
State
Meaning
1
Blinking
Time on: 100
ms
System in standby
Blinking
Time on: 900
ms
System in service
2
On
24 V on backlight
synchronisation input
3
On
24 V on input 1
4
On
24 V on input 2
5
On
24 V on output 1
6
On
24 V on output 2
7
On
Platform vibrating
8
On
24 V on power input
9
On
24 V on S-power
input (see 2.3.2 for
more information)
10
On
Connection detected
11
Blinking
Communication in
progress
12
On
24 V on input
purge (Asycube 380
only)
13
On
24 V on output
purge (Asycube 380
only)

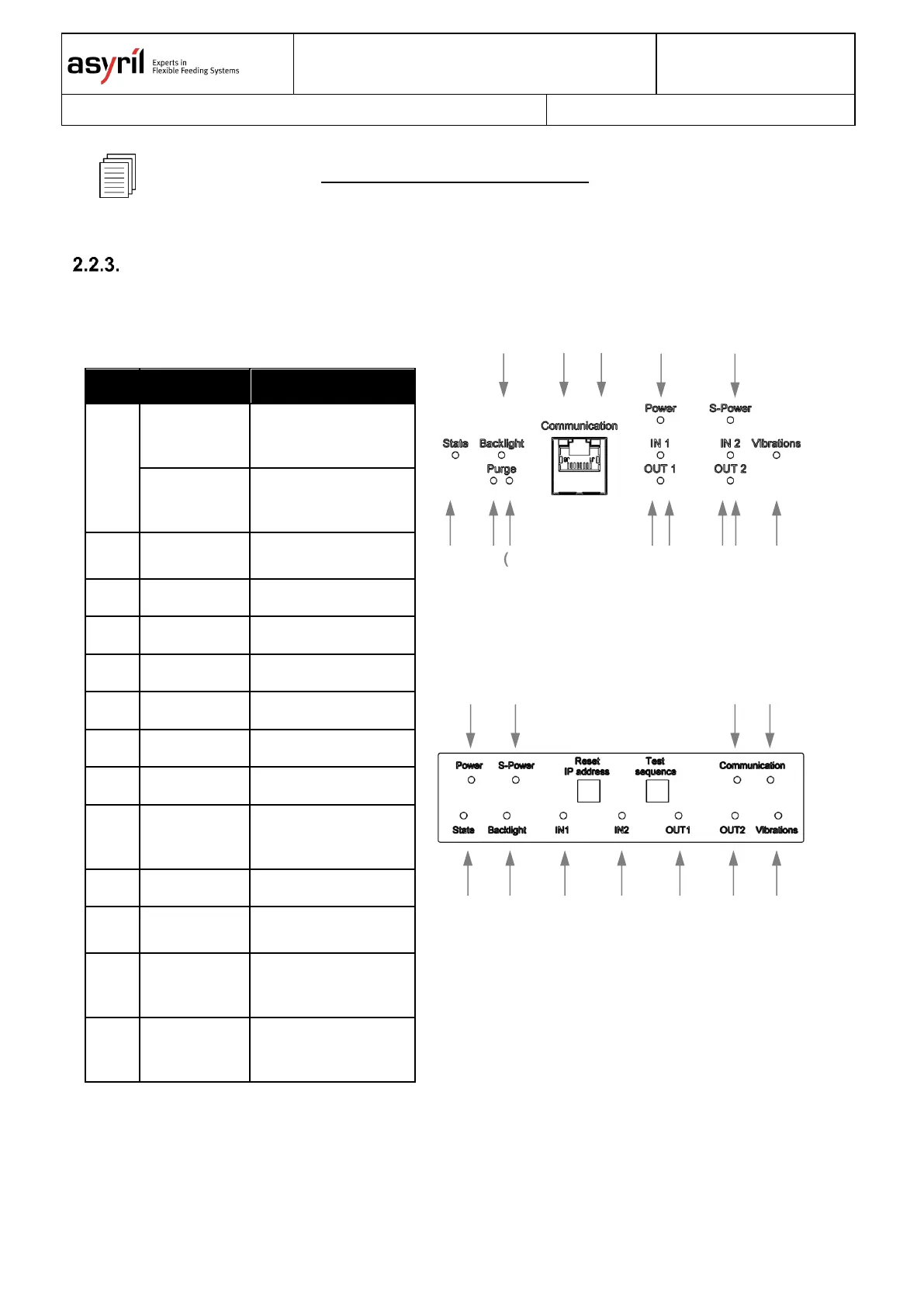

Figure 2-2: Asycube 380 operating indicator
LEDs
Figure 2-3: Asycube 530 operating indicator
LEDs
(8)
(1)
(9)
(10)
(2)
(3)
(4)
(5)
(6)
(7)
(11)
(8)
(1)
(2)
(9)
(13)
(4)
(3)
(5)
(6)
(7)
(11)
(12)
(10)
