Asyril Asycube 240 User Manual

Asycube 380 & 530
Operating Manual
000.101.151
Version: B
26/50
Hopper
An optional hopper is available in the 10 or 15 litre versions.
The stainless steel type 1.4301 hoppers withstand a maximum filling load of 20 kg.
The following items are available:
Product
Compatible
Reference
10 litre HOPPER 230 VAC 50 Hz
Asycube 380
Depending on
list of products
10 litre HOPPER 110 VAC 60 Hz
Asycube 380
15 litre HOPPER 230 VAC 50 Hz
Asycube 530
15 litre HOPPER 110 VAC 60 Hz
Asycube 530
These items comprise:
- The hopper
- The linear vibrator
- Control unit
- The set of cables

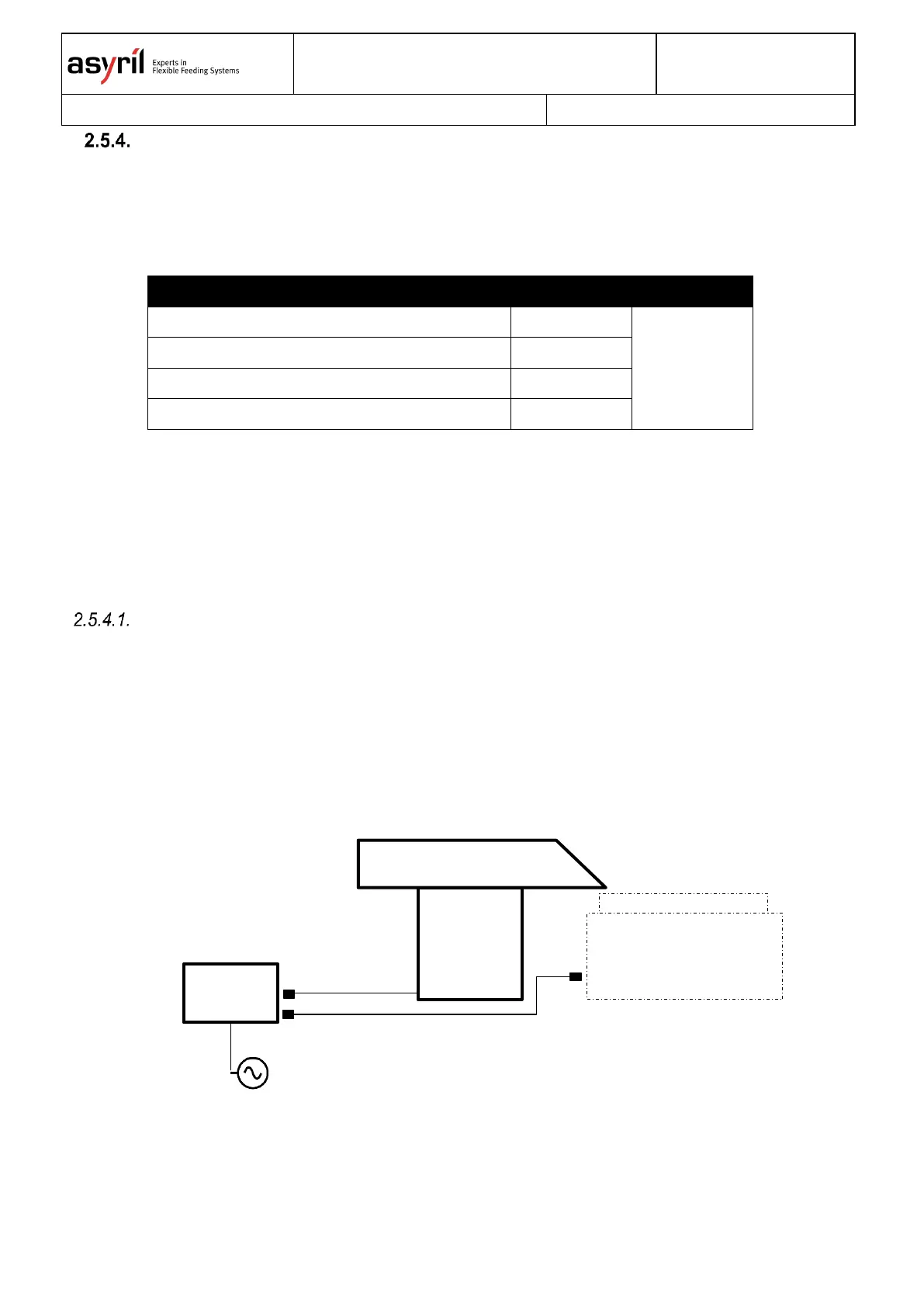

Wiring diagram:
The hopper is supplied with the controller and cables ready to be installed. Depending on the model
chosen, the hopper should be supplied with
- 110 V (+10%/-15%) 60 Hz
or
- 230 V (+10%/-15%) 50 Hz
Asycube
OUT 1 (or OUT 2)
Hopper
1.5 m
Control unit
2 m
1.5 m
Max. 6 A
Linear
vibrator
